Amscope SM-4TX-144A 3.5X - 45X Trinocular Stereo Microscope with 4 Zone 144 LED Ring Light New
Product Overview
The SM-4T is a heavy duty, highly flexible microscope designed for biological and industrial applications. This model is especially popular in the QC, repair and engraving industries thanks to its ease of use and reliability.
With its wide zoom range and double arm boom stand, this model will become an indispensable instrument in any workshop or lab.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- 3.5X - 45X extended zoom magnification using high quality Greenough stereoscopic objective lenses and a 0.5X Barlow lens.
- The microscope provides up to 6.5" (165mm) of working distance.
- The stereo optics provide upright images with clear depth of field and a wide view for hands on applications.

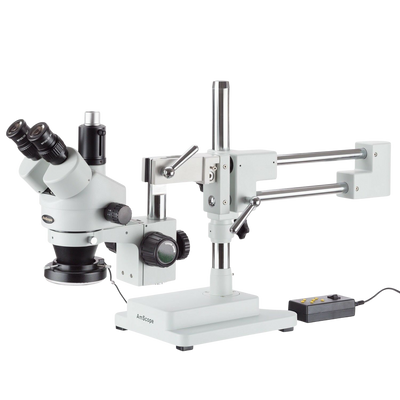

- A highly versatile stereo microscope on a heavy duty, multi pivot boom stand which allows the microscope to easily swing into place when needed, and away when not.
- Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.

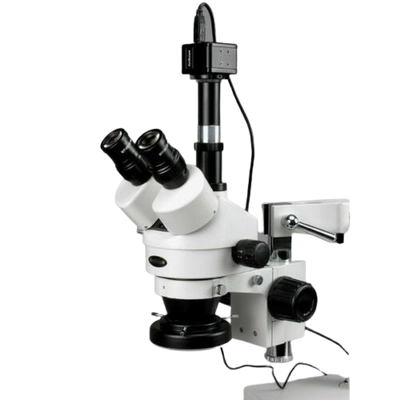

- A trinocular photo port provides a dedicated mount for adding a camera.
- This microscope is ideal for laboratories, repair shops, and engravers.

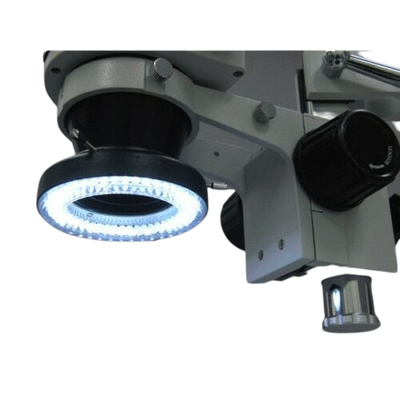

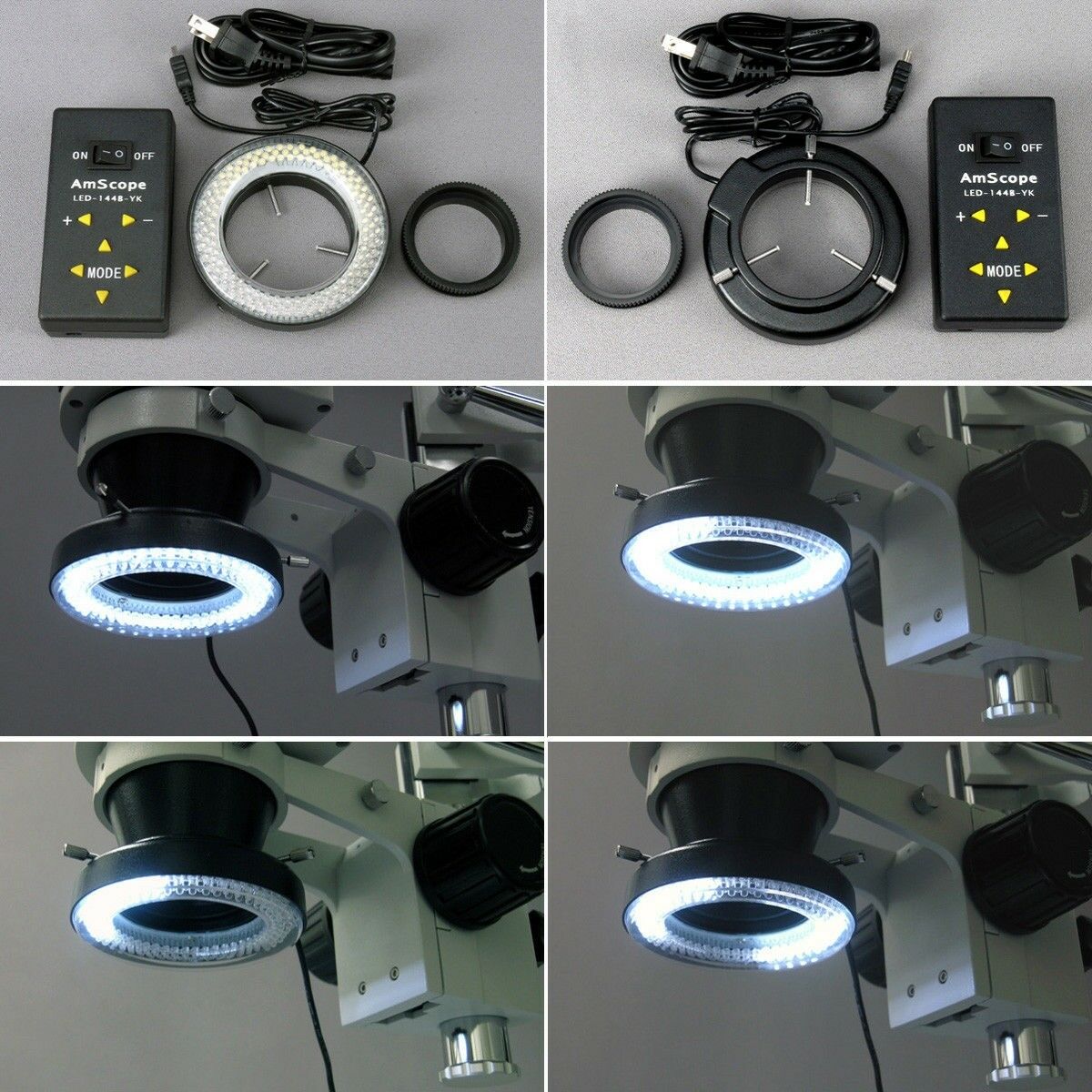

- The 144 LED ring light uses a power module with four subdivisions to produce either directional light or an encompassing ring of light.
Specifications
| Focusing Block Focus Range | 50mm |
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation free gemel, 54 - 76mm |
| Ocular port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ±5 dp |
| Eyepieces | 10X |
| Photo Port | Height adjustable 23mm tube, CX series |
| Objective Lenses | 0.7X - 4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
| Native Field of View | 4.4mm - 28.6mm |
| Native Working Distance | 100mm |
| Auxiliary Lens Mount | 48mm thread |
| Auxiliary (Barlow) Lenses Included | 0.5X, 165mm working distance |
| Stand Type | Double arm boom stand with ball bearing movement, cast steel base |
| Stand Dimensions | 20" double arm (overall length |
Package Contents
Trinocular stereo microscope head
Photo port attachment
Pair of 10X eyepieces
0.5X Barlow lens
Pair of eye guards
Double arm boom stand with focusing rack
LED ring light
Power controller
Power cable
Ring light mounting adapter
User's Manual
Warranty
This product comes with a 5 year factory warranty.
