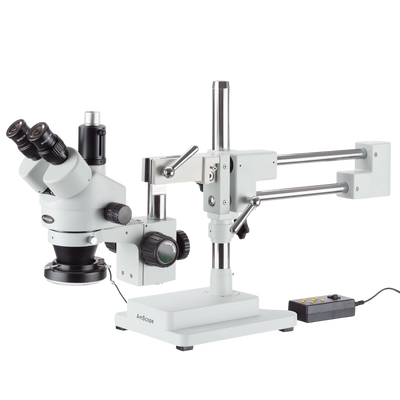

Amscope SM-4TZ-144A 3.5X - 90X Trinocular Stereo Microscope with 4 Zone 144 LED Ring Light New

Manufacturer: AmScope

SKU: SM-4TZ-144A

  • Amscope SM-4TZ-144A 3.5X - 90X Trinocular Stereo Microscope with 4 Zone 144 LED Ring Light New
  • Amscope SM-4TZ-144A 3.5X - 90X Trinocular Stereo Microscope with 4 Zone 144 LED Ring Light New
  • Amscope SM-4TZ-144A 3.5X - 90X Trinocular Stereo Microscope with 4 Zone 144 LED Ring Light New

QTY

$ 723.99

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

tags

ON SALE!

truck icon

USE FOLLOWING CODE AT CHECKOUT FOR 2% OFF: amscope COPY

Ships in 1-2 business days

Extended Warranty

×

Factory Warranty

  • This product comes with a 5 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This product comes with a 5 year factory warranty.

$49.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$69.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$99.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Product Overview

The SM-4T is a heavy duty, highly flexible microscope designed for biological and industrial applications. This model is especially popular in the QC, repair and engraving industries thanks to its ease of use and reliability.



With its wide zoom range and double arm boom stand, this model will become an indispensable instrument in any workshop or lab.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

5 year factory warranty

checkmark

Manufacturer direct shipping from CA

checkmark

Authorized AmScope dealer

Amscope SM-4TZ-144A 3.5X - 90X Trinocular Stereo Microscope with 4 Zone 144 LED Ring Light New

Amscope SM-4TZ-144A 3.5X - 90X Trinocular Stereo Microscope with 4 Zone 144 LED Ring Light New

Features

  • 3.5X - 90X extended zoom magnification using high quality Greenough stereoscopic objective lenses with 0.5X and 2X Barlow lenses.
  • The microscope provides up to 6.5" (165mm) of working distance.
  • The stereo optics provide upright images with clear depth of field and a wide view for hands on applications.
  • A highly versatile stereo microscope on a heavy duty, multi pivot boom stand which allows the microscope to easily swing into place when needed, and away when not.
  • Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
  • A trinocular photo port provides a dedicated mount for adding a camera.
  • This microscope is ideal for laboratories, repair shops, and engravers.

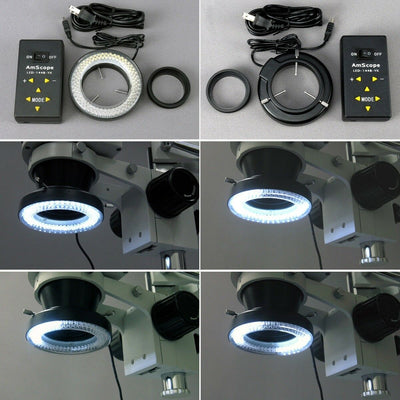

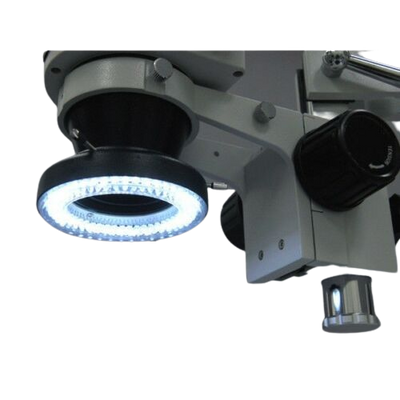

  • The 144 LED ring light uses a power module with four subdivisions to produce either directional light or an encompassing ring of light.

Specifications

Head Type Trinocular, 45° incline, 360° rotatable
Optical System Greenough stereoscopic
Interpupillary Adjustment Compensation free gemel, 54 - 76mm
Ocular port Diameter 30mm
Dioptric Adjustment Both oculars, ± 5dp
Eyepieces 10X
Photo Port Height adjustable 23mm tube, CX series
Objective Lenses 0.7X - 4.5X zoom
Objective Numerical Aperture 0.065 @ 4.5X 0.02 @ 0.7X
Objective Resolution 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X
Native Field of View 4.4mm - 28.6mm
Native Working Distance 100mm
Auxiliary Lens Mount 48mm thread
Auxiliary (Barlow) Lenses Included 0.5X, 165mm working distance 2X, 30mm working distance
Stand Type Double arm boom stand with ball bearing movement, cast steel base
Stand Dimensions 20" double arm (overall length
Focusing Block Focus Range 50mm

Package Contents

Trinocular stereo microscope head

Photo port attachment

Pair of 10X eyepieces

0.5X Barlow lens

2X Barlow lens

Pair of eye guards

Double arm boom stand with focusing rack

LED ring light

Power controller

Power cable

Ring light mounting adapter

User's Manual

Warranty

vendor logo
divider
authorized dealer

This product comes with a 5 year factory warranty.
