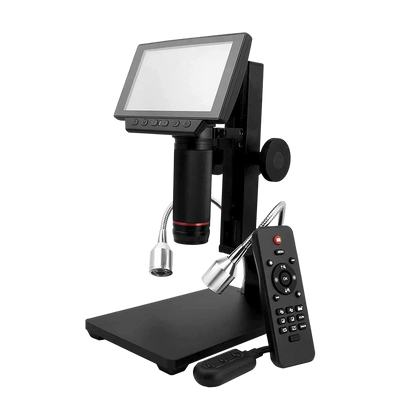

Andonstar ADSM302 5 Inch Display 560X HDMI PCB Soldering Digital Microscope New
Manufacturer: Andonstar
SKU: ADSM302
QTY
(888) 999-1522
$ 215.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Andonstar ADSM302 5 Inch Display 560X HDMI PCB Soldering Digital Microscope New
Product Overview
The Andonstar ADSM302 Digital Microscope is one of our professional HDMI digital microscopes. With built-in LED lights and a height-adjustable stand, the digital microscope's object distance, focal length, and brightness can be changed. It's useful and funny for children, students, engineers and anyone who need to magnify and explore the minute structure of things like a circuit board, coin, jewelry, textile, skin, and insects.
Buyer's remorse returns are not accepted for this item. If an item arrives DOA, or has shipping damage, the manufacturer will be notified to rectify the situation
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA
Authorized Andonstar dealer
Features
- Adjustable large 5-inch screen: the built-in 5-inch LCD screen, in line with ergonomic design, provides a broad field of view for easy viewing.
- Convenient remote control: along with the buttons on the monitor, the remote control allows you to take pictures, record videos, zoom in, zoom out, and realize other simple operations.
- Up to 560x continuous magnification: the microscope is equipped with a high-quality sensor and its magnification ratio can reach up to 560X.
- 2 LED Light & fill lights on both sides: the Built-in 2 LED lights with adjustable intensity control, allowing you to set the desired level of illumination, and a measuring scale; Two freely adjustable Fill lights on both sides, brightness can be adjusted by dimmer, providing excellent detail and optimal clarity and allows capture picture or video in the woods and some dark places.
- Support 4 different output methods: AV, USB, HDMI, and memory cards (Not included) (up to 32G). Images and videos obtained during your observations can be saved to an SD card and output.
- High-quality height-adjustable bracket: adjust the height-adjustable stand of this USB microscope by the controller, the magnification and the distance between the camera and the object will be adjusted.
- Support PC connection: images captured by the microscope lens can be easily sent to a multimedia device. Please install the software after the digital microscope is connected to a computer and ready for observations.
- Wide use applications: this LCD digital microscope can be used for a coin stamp collection, skin inspection, industrial inspection(PCB), animals/plants/insect observation, jewelry appraisal, print circuit board repair.
Specifications
| Weight | 2.2 kg |
| Screen size | 5 inch |
| Stand size | 20 x 12 x 26.5 cm |
| Certification | CE/FCC/ROHS/HDMI |
| Image sensor | 3 Mega Pixel HD Sensor |
| Video output | 1080P Full HD (via HDMI); 720P (via PC) |
| Video format | Real-time play via HDMI without recording; MJPEG recording Via PC Software |
| Magnification | Up to 560 times (HDMI monitor 22 inches) |
| Photo resolution | 12M |
| Photo format | JPEG |
| Focus range | 5 cm to 22 cm |
| Frame rate | Max 30f/s under 600Lus Brightness |
| Video-output interface | HDMI/AV |
| Storage | Microscope-SD card, up to 32G |
| PC support | Yes, for Windows 7/8/10, PC software with Measurement |
| Power source | 5V DC |
| Light source | 2 LED with the stand |
| Packaging data | 31 x 24.5 x 18cm |
Package Contents
Microscope
Metal stand
USB cable
HDMI Cable
Adapter
IR remote
Warranty card
User's Manual
Warranty
This product comes with a 1 year factory warranty.
