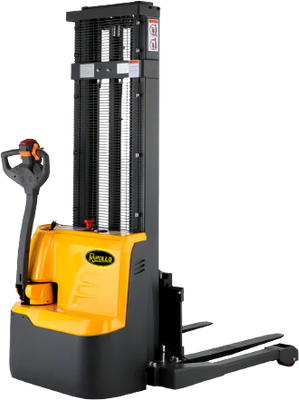

Apollolift A-3023 118" Lifting Height Straddle Legs 3300 lbs. Capacity Full Electric Walkie Stacker New
Manufacturer: Apollolift
SKU: A-3023
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 7,300.00
$ 5,299.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
Apollolift A-3023 118" Lifting Height Straddle Legs 3300 lbs. Capacity Full Electric Walkie Stacker New
Product Overview
This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
*Legs will arrive uninstalled.
Brand new and manufacturer direct
1 year manufacturer's warranty
Ships from manufacturer in CA or GA
Fast processing with free shipping
Authorized Apollolift dealer
Features
- 650-watt drive motor, 2,200-watt lift motor.
- Forks are adjustable to fit most pallets.
- Curtis (US Brand) Controller.
- Use GEL battery free to maintain.

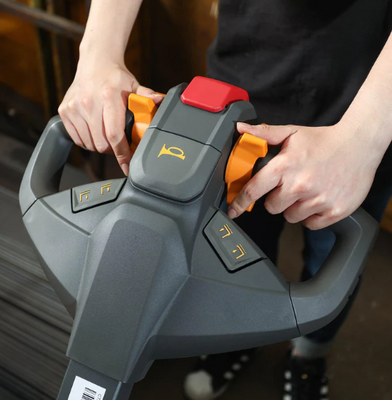

- Both sides of button for lifting and lowering operation.
- Multi-function display shows the working hours, battery status and low-voltage protection.

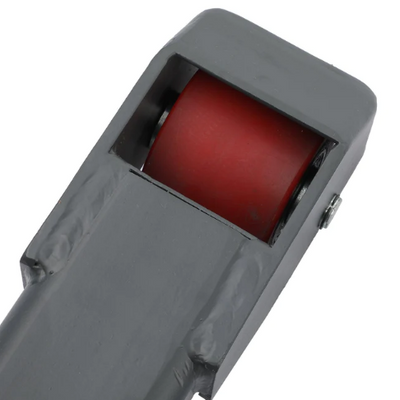

- Smooth rolling polyurethane wheels.180° steering arc.

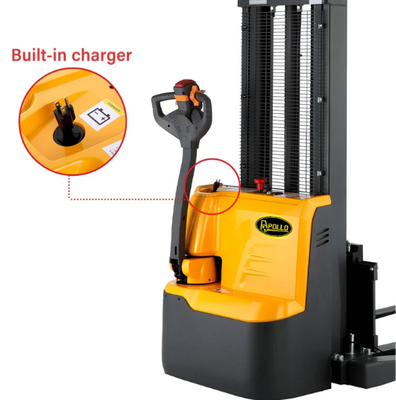

- 110V Built-in Charger.
- 6 hours service per charge: two 12-volt, 125 Ah rechargeable GEL batteries.
- Not explosion proof.
- Temperature range of working environment below 50ËšF~104ËšF.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the forklift once a month even it's not in use.
Specifications

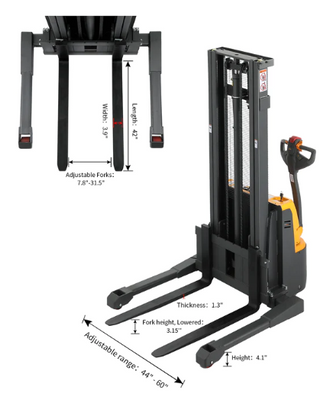

| FORKS | |
| Fork height, Lowered | 3.15'' |
| Adjustable Forks | 7.8"-31.5" |
| Thickness | 1.3" |
| Width | 3.9" |
| Length | 42" |
| SPEED | |
| Travel Speed (laden/unladen) | 2.8/3.1mph |
| Lifting Speed (laden/unladen) | 3.1/4.3inch/s |
| Lowering Speed (laden/unladen) | 4.7/3.9inch/s |
| FULLY POWERED STACKER | |
| Load Capacity | 3,300 lbs |
| Battery Capacity | 24V/125AH |
| Height Raised | 118'' |
| Wheel Diameter | 7.7" |
| Weight | 1,466 |
| DIMENSIONS | |

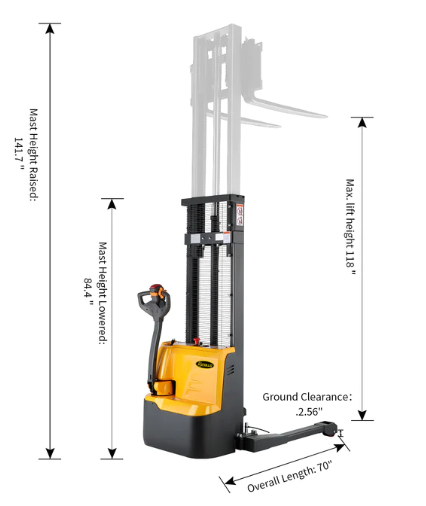

| Overall Length | 70" |
| Recommended Aisle Width | 89.7" |
| Turning Radius | 58.6" |
| Mast Height Lowered | 84.4'' |
| Mast Height Raised | 141.7'' |
| Load center | 23.6" |
| Ground Clearance | 1.38" |
| STRADDLE LEGS | |
| Height | 4.1" |
| Adjustable range | 44" - 60" |
Package Contents
Full Electric Stacker
Owners Manual
Warranty
This item comes with a 1 year manufacturer's warranty.
