Apollolift A-3030 220" Lifting Height 3300 lbs. Capacity Powered Full Electric Walkie Stacker New
Manufacturer: Apollolift
SKU: A-3030
Share
QTY
(888) 999-1522
$ 12,577.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR $50 OFF: buck50 COPY
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer
Similar Products
Apollolift A-3030 220" Lifting Height 3300 lbs. Capacity Powered Full Electric Walkie Stacker New
Share
Product Overview
This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
Brand new and manufacturer direct
1 year manufacturer's warranty
Ships from manufacturer in CA or GA
Fast processing with free shipping
Authorized Apollolift dealer
Features
- 1,200-watt drive motor, 2,200-watt lift motor.
- Advanced AC control system.
- Stepless speed control.
- Forks are adjustable to fit most pallets.
- Curtis (US Brand) Controller Famous.
- German brand handle tiller.
- Multi-function display shows the working hours, battery status and low-voltage protection.
- The capacity is 880lbs when lifting to 220''
- Gradeability(laden/unladen): 6%/15%.
- 8 hours service per charge with strong power lead-acid battery capacity 24V/200AH.
- 8-10 hours charging time.
- Long handle structure makes it steering light and flexible.
- Vertical driving wheel, driving efficiency, easy installation& maintenance.
- AC frequency conversion traction motor, compact structure, good performance.
- With emergency stop switch and electricity lock button for safety.
- Not explosion proof.
- Temperature range of working environment below 50˚F˜104˚F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the forklift once a month even it's not in use.
Specifications
| FORKS | |
| Thickness | 1.3" |
| Width | 3.9" |
| Length | 42" |
| Adjustable Forks | 7.8-31.5" |
| Lowered Height | 2.8" |
| SPEED | |
| Travel Speed (laden/unladen) | 3.6/3.7 mile/h |
| Lifting Speed (laden/unladen) | 3.5/6.3 inch/s |
| Lowering Speed (laden/unladen) | 5.9/6.3 inch/s |
| FULLY POWERED STACKER | |
| Load Capacity | 3,300 lbs |
| Battery Capacity | 24V/200AH |
| Height Raised | 220'' |
| Wheel Diameter | 9.8''/5.9'' |
| Weight | 2,695 |

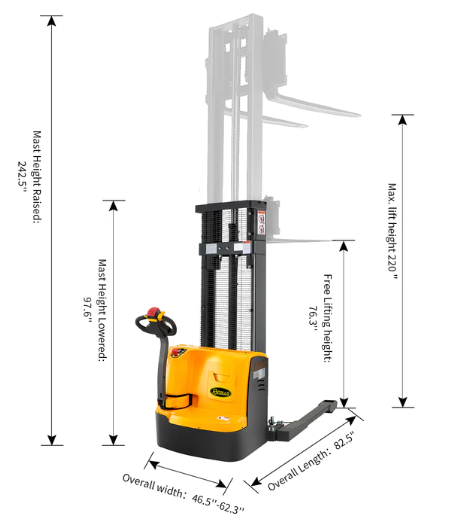

| DIMENSIONS | |
| Overall Length | 82.5" |
| Overall width | 46.5"-62.3" |
| Recommended Aisle Width | 98.4" |
| Turning Radius | 65.1" |
| Load center | 23.6" |
| MAST | |
| Mast Height Lowered | 97.6'' |
| Max.Lifting height | 220'' |
| Mast Height Raised | 242.5'' |
| Free Lifting height | 76.3'' |
Package Contents
Full Electric Stacker
Owners Manual
Warranty
This item comes with a 1 year manufacturer's warranty.
