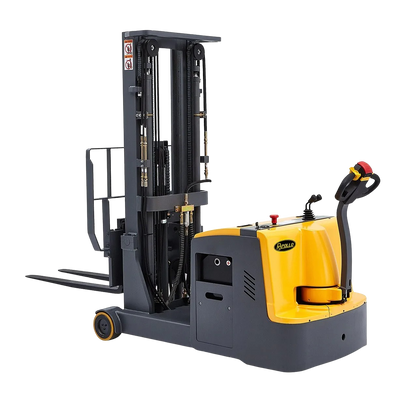

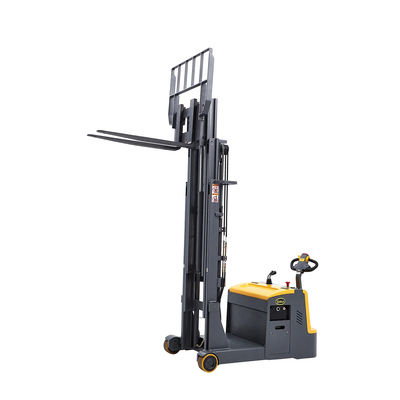

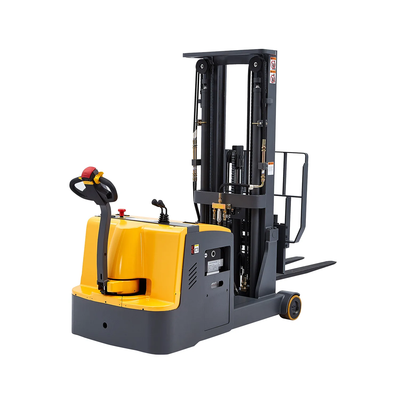

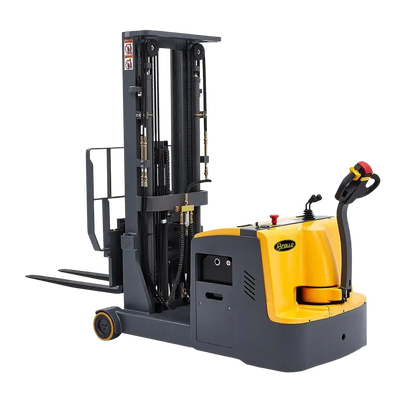

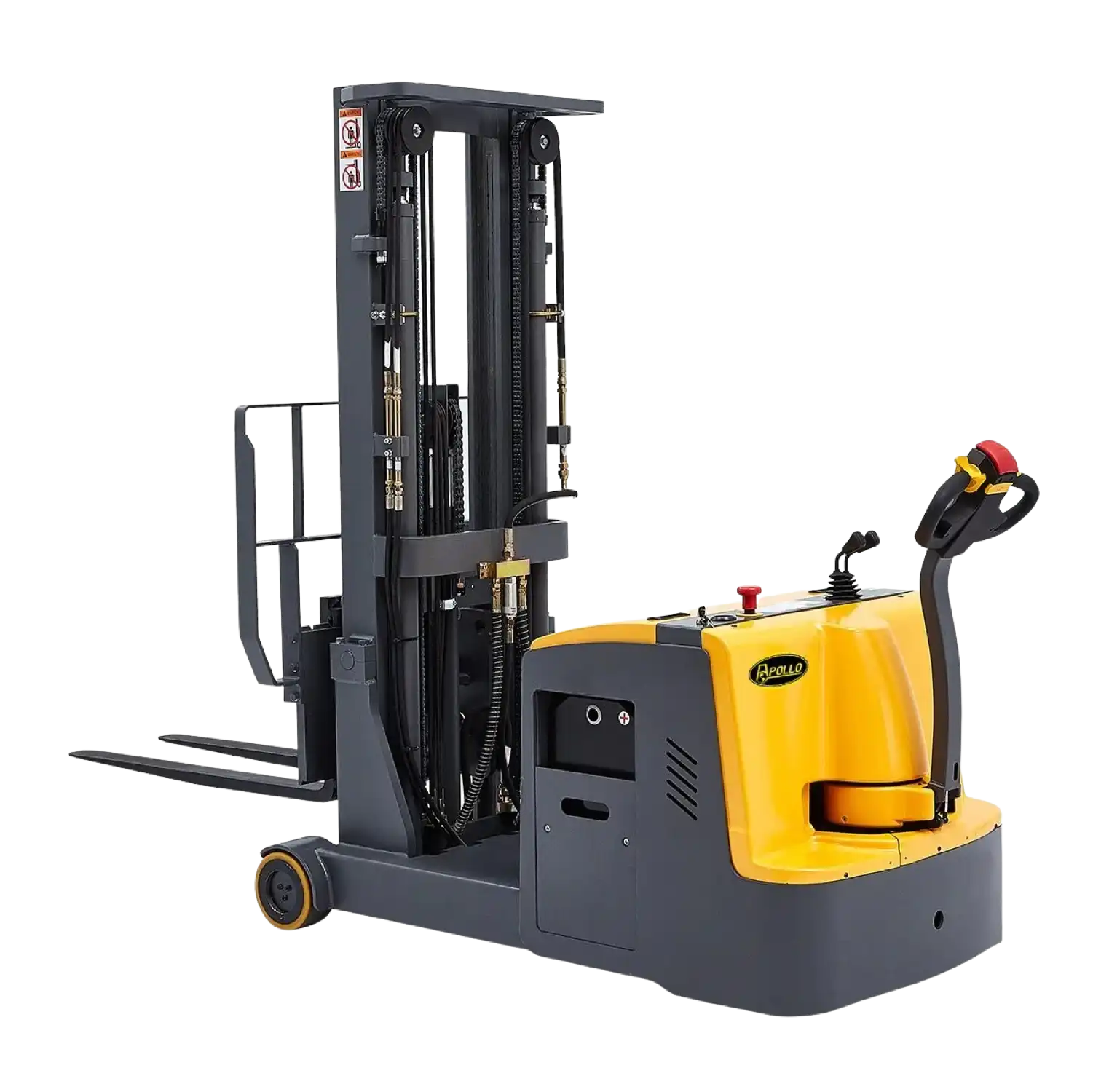

Apollolift A-3032 Counterbalanced Electric Stacker 177" Lifting Height 3300 lbs. Capacity New
Manufacturer: Apollolift
SKU: A-3032

Share
Product Overview
This Stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp. Stacker can be manually pushed and pulled or use powered lifting and lowering.
Brand new and manufacturer direct
1 year manufacturer's warranty
Ships from manufacturer in CA or GA
Fast processing with free shipping
Authorized Apollolift dealer
Features
- 1,200-watt drive motor, 4,500-watt lift motor.
- Forks are adjustable to fit most pallets.
- Curtis (US Brand) Controller.
- Gradeability(laden/unladen): 6%/10%.

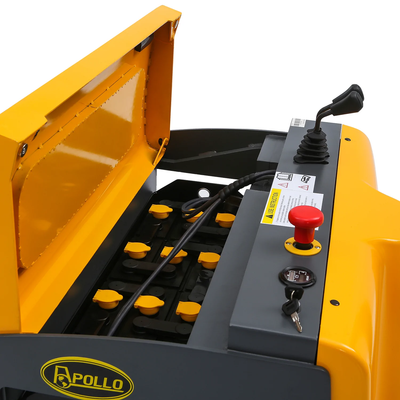

- 8 hours service per charge with big power lead-acid battery capacity 24V/280AH.
- Long handle structure makes it steering light and flexible.
- Vertical driving wheel, driving efficiency, easy installation & maintenance.
- AC frequency conversion traction motor, compact structure, good performance.

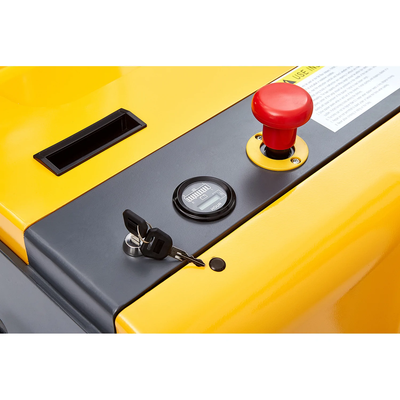

- With emergency stop switch and electricity lock button for safety.

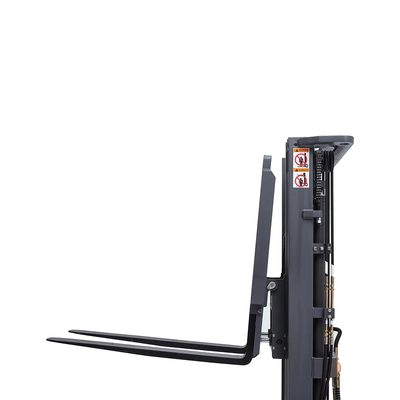

- Tilting system forks easy for loading and stacking.
- Not explosion proof.
- This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Temperature range of working environment below 50˚F˜104˚F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.

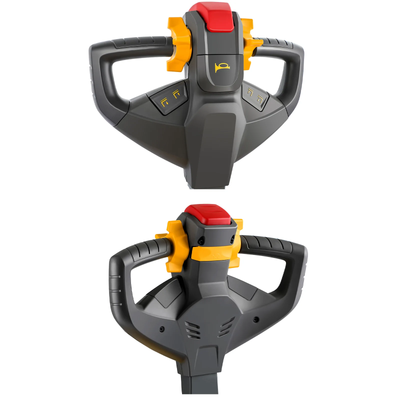

- Famous German brand handle tiller.
- Multi-function display shows the working hours, battery status and low-voltage protection.
Specifications
Description | Heavy duty stacker |
Load Capacity | 3,300 lbs |
Height Lowered | 1.38'' |
Height Raised | 177'' |
Wheel Diameter | 9.8''/7.9'' |
Weight | 4,580 |

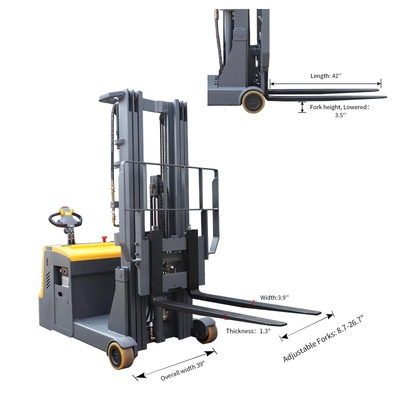

Overall Length | 104.3" |
Overall width | 39'' |
Recommended Aisle Width | 120.9" |
Turning Radius | 61.8" |
Load Center | 19.7" |

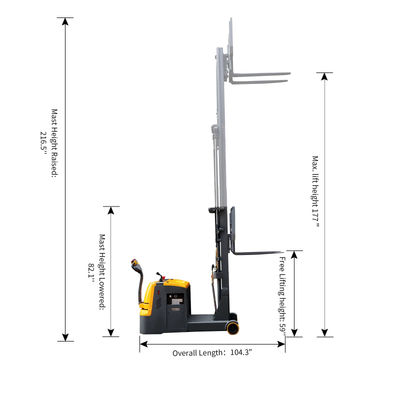

Mast Height Lowered | 82.1'' |
Max. Lifting height | 177'' |
Mast Height Raised | 216.5'' |
Free Lifting height | 59'' |
Thickness | 1.3" |
Width | 3.9" |
Length | 42" |
Adjustable Forks | 8.7-26.7" |

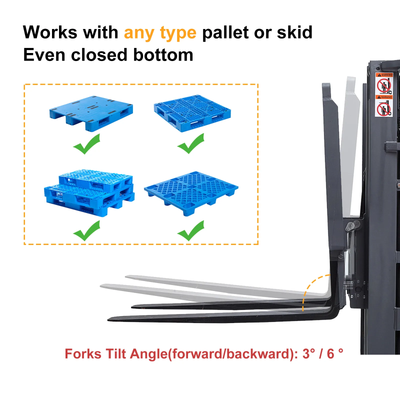

Forks Tilt Angle(forward/backward) | 3°/ 6 ° |
Travel Speed (laden/unladen) | 3.6/3.7 mile/h |
Lifting Speed (laden/unladen) | 0-4.7 / 0-6.3 inch/s |
Lowering Speed (laden/unladen) | 0-17.7 inch/s |
Package Contents
Counterbalanced Electric Stacker
Owners Manual
Warranty
