Arccaptain iControl TIG205P Pro Pulse Welder 205A Multi-Process TIG 120/240V App Control New
Product Overview
The Arccaptain TIG205P Pro is a multi-process welder designed for TIG and MMA welding with app-controlled convenience. It supports HF DC TIG, Pulse TIG, Lift TIG, Spot TIG, and MMA modes for work on stainless steel, mild steel, copper, and other metals. Dual-voltage 120V/240V operation, customizable TIG parameters, and smart preset assistance make it suitable for both beginners and experienced users. The compact design includes fan-on-demand cooling, multiple protection systems, and support for torch, foot pedal, panel, or Bluetooth app control. It is built for precise welding on thin materials while remaining portable and easy to use.
Brand new
3 year factory warranty
Manufacturer direct shipping from CA
Authorized Arccaptain dealer
Features
- Multi-Process TIG Welder: TIG205P Pro combines HF DC TIG, Pulse TIG, Lift TIG, Spot TIG, and MMA—ideal for stainless, mild steel, copper, and more. Swap between functions in seconds.
- Pulse TIG with Smart Presets – Precision Made Easy: Pulse TIG is perfect for welding thin materials. It automatically adjusts 4 key parameters, making it easy for beginners to get started.
- Precision Spot TIG – Even on Thin Metal: Supports Spot TIG in both HF TIG and Lift TIG modes — perfect for sheet metal and fine weld control.
- Smart Fan – Built for Heavy Duty Work: The intelligent fan runs only when needed, improving airflow and cutting noise. Reinforced internal cooling boosts duty cycle performance and extends component lifespan by 40%.
- Flexible Control Options – Weld Your Way: Easily switch between torch trigger, foot pedal, front panel, or Bluetooth App control. Adjust the way you like.
- Safe, Tested, and Backed by Warranty: Passed many factory tests and certified by FCC, ANSI. Covered by a 3-year warranty and lifetime tech support.
Specifications
| Model | TIG205P Pro |
| Product Type | TIG welder |
| Welding Modes | DC TIG, DC Pulse TIG, TIG Spot, Lift TIG, MMA |
| Input Voltage | Single phase AC240V / AC120V |
| Input Frequency | 50Hz/60Hz |
| Rated Input Capacity | 7.9 kVA at 240V / 4.3 kVA at 120V |
| Rated Input Current | 33A at 240V / 36A at 120V |
| Rated Output Current Voltage | TIG 205A/18.2V, MMA 205A/28.2V at 240V; TIG 145A/15.8V, MMA 145A/25.8V at 120V |
| Rated Duty Cycle | 60% |
| No-load Voltage | DC 65V |
| VRD Voltage | DC 15V |
| Output Current Range | TIG 10-205A and MMA 10-205A at 240V; TIG 10-145A and MMA 10-145A at 120V |
| Post-flow Time | 0-15 s |
| Down-slope Time | 0-15 s |
| Pulse Duty Ratio | 5-95% |
| Pulse Frequency | 0.5-200 Hz |
| Spot Welding Time | 0.5-5 s |
| Base Current | 10-205A at 240V / 10-145A at 120V |
| Peak Current | 10-205A at 240V / 10-145A at 120V |
| Arc Ignition Type | HF Arc Ignition and Lift Arc Ignition |
| Enclosure Protection Class | IP21S |
| Insulation Grade | H |
| Power Factor | 0.73 |
| Efficiency | 80% |

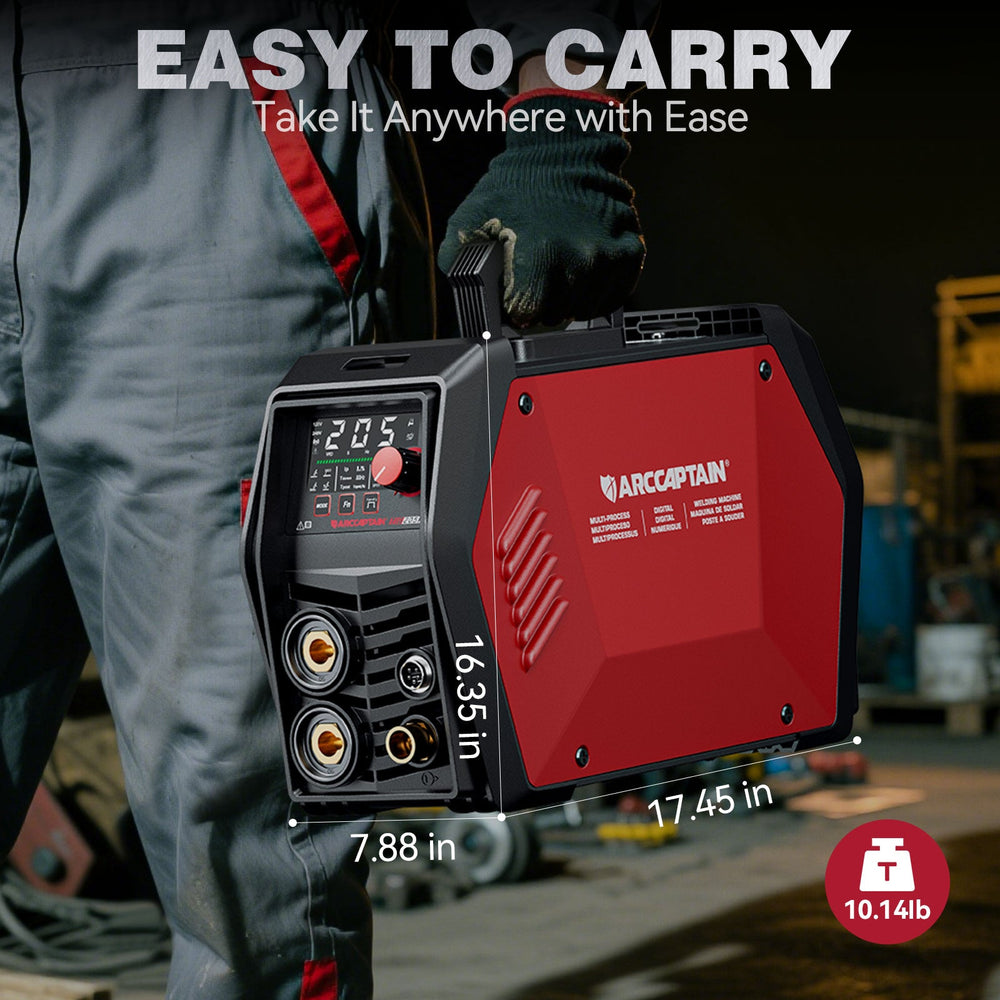

| Dimensions | 17.45 x 7.88 x 16.35 in |
| Weight | 10.63 lbs |

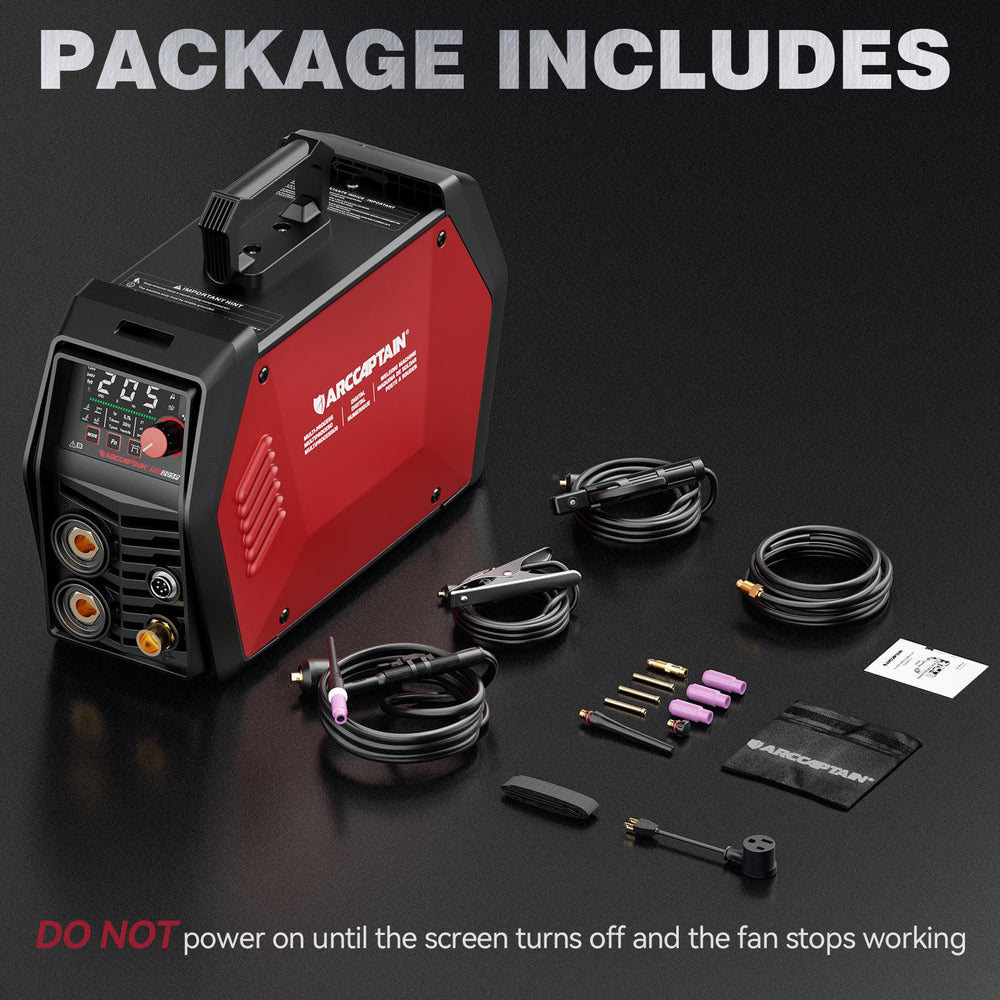

Package Contents
TIG205P Pro TIG welder
TIG torch and accessories
Electrode holder
Earth clamp
Gas hose
Power adapter 120V/240V
Shoulder strap
User manual
Tungsten electrode
Dust cover
Warranty
This product comes with a 3 year factory warranty.
