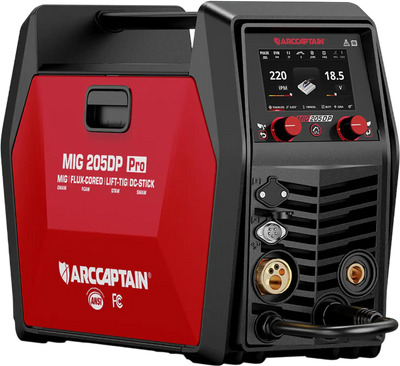

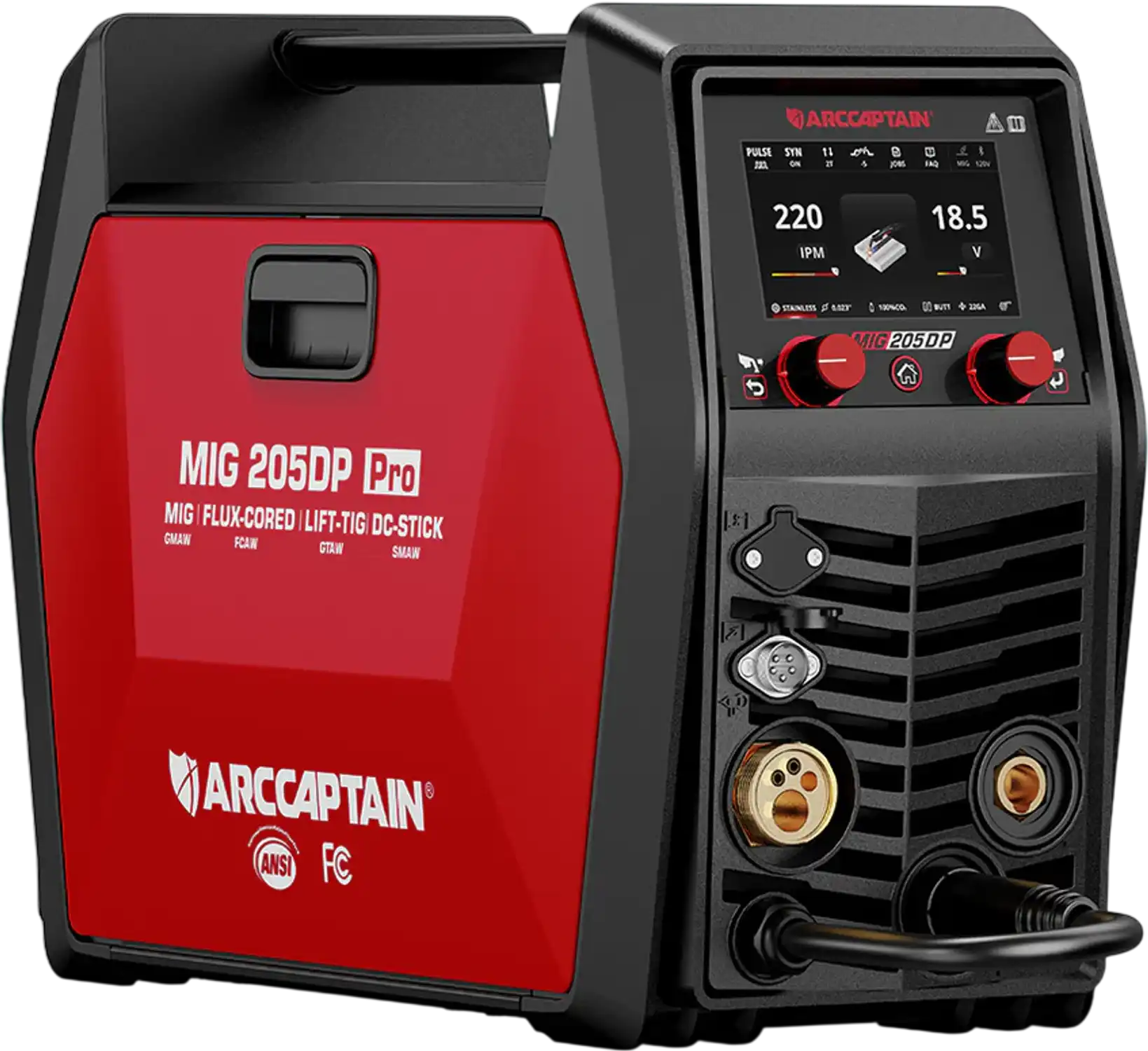

Arccaptain MIG205DP Pro MIG Welder Multi-Process Double Pulse For Alumnium 120V/240V New
Product Overview
The Arccaptain MIG205DP Pro is a double pulse MIG welder designed for aluminum welding, thin sheet metal, and automotive repair. It delivers TIG-like weld appearance with controlled heat input and smart synergic programs for faster setup. This multi-process machine supports double pulse MIG, single pulse MIG, flux-cored, stick, lift TIG, and spool gun welding. An advanced LCD display with preset memory and app remote control helps streamline setup and operation. It is built for workshop, fabrication, and auto body repair applications.
Brand new
3 year factory warranty
Manufacturer direct shipping from California
Authorized Arccaptain dealer
Features
- Double Pulse MIG Welding Performance: Expert-tuned synergic settings automatically match wire speed and voltage, delivering smooth fish-scale welds with no weaving needed. A stable arc with low heat input ensures clean, consistent welds, ideal for aluminum and thin materials.
- Multi-Process Welder with 205A Output: Supports double pulse MIG, single pulse MIG, flux-cored, stick, lift TIG, and spool gun welding. Ready for fabrication, auto body repair, and structural work.
- Designed for Aluminum Welding: Alternating peak and base current creates smooth fish-scale welds automatically—no weaving needed. Achieve TIG-like results with MIG speed and less heat distortion.

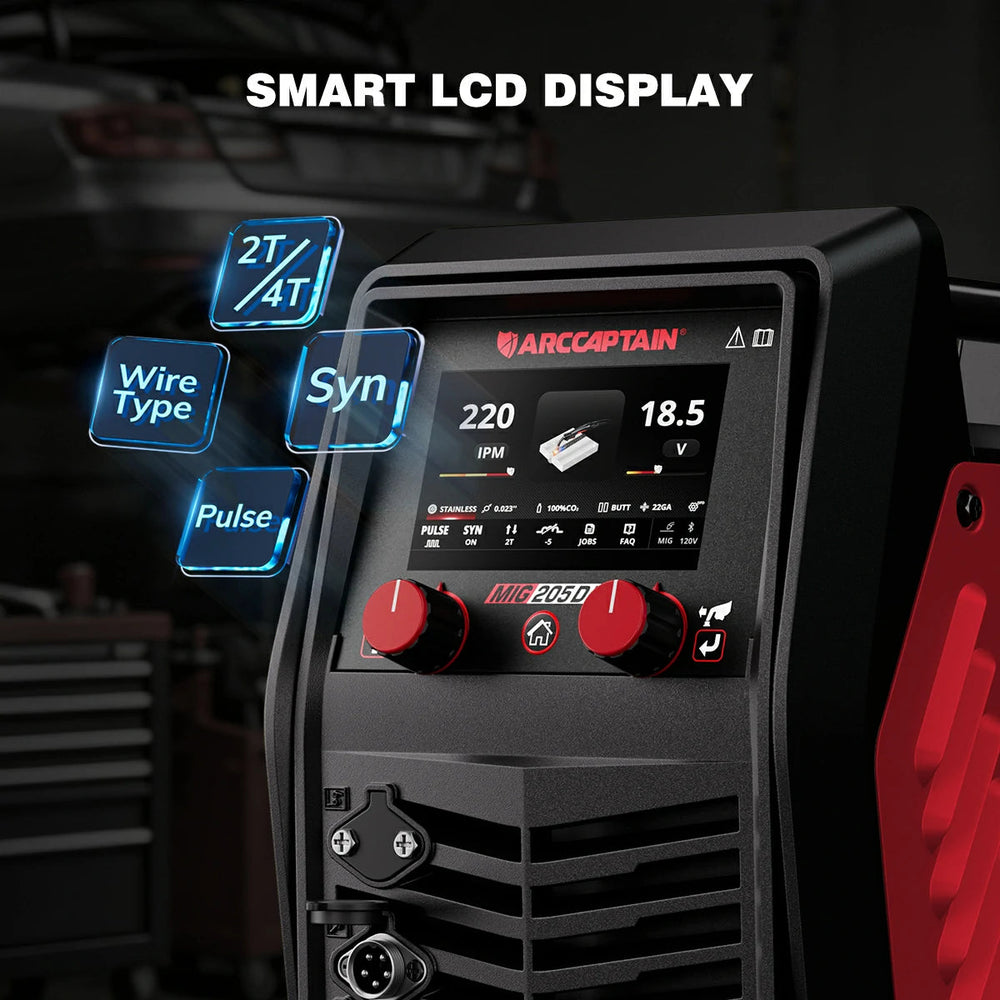

- Advanced LCD Display Control: Save and recall up to 12 presets for fast setup, with intuitive on-screen controls and real-time adjustment to match your welding needs.
- APP Remote Control: Adjust and monitor settings remotely, save parameters, and recall them anytime for faster, more efficient welding.
- Built for Auto Body Repair: Designed for real shop work—from aluminum panels and car doors to exhaust and frame repair. Double pulse MIG ensures clean welds on thin materials, while MIG and stick handle structural and heavy-duty jobs.

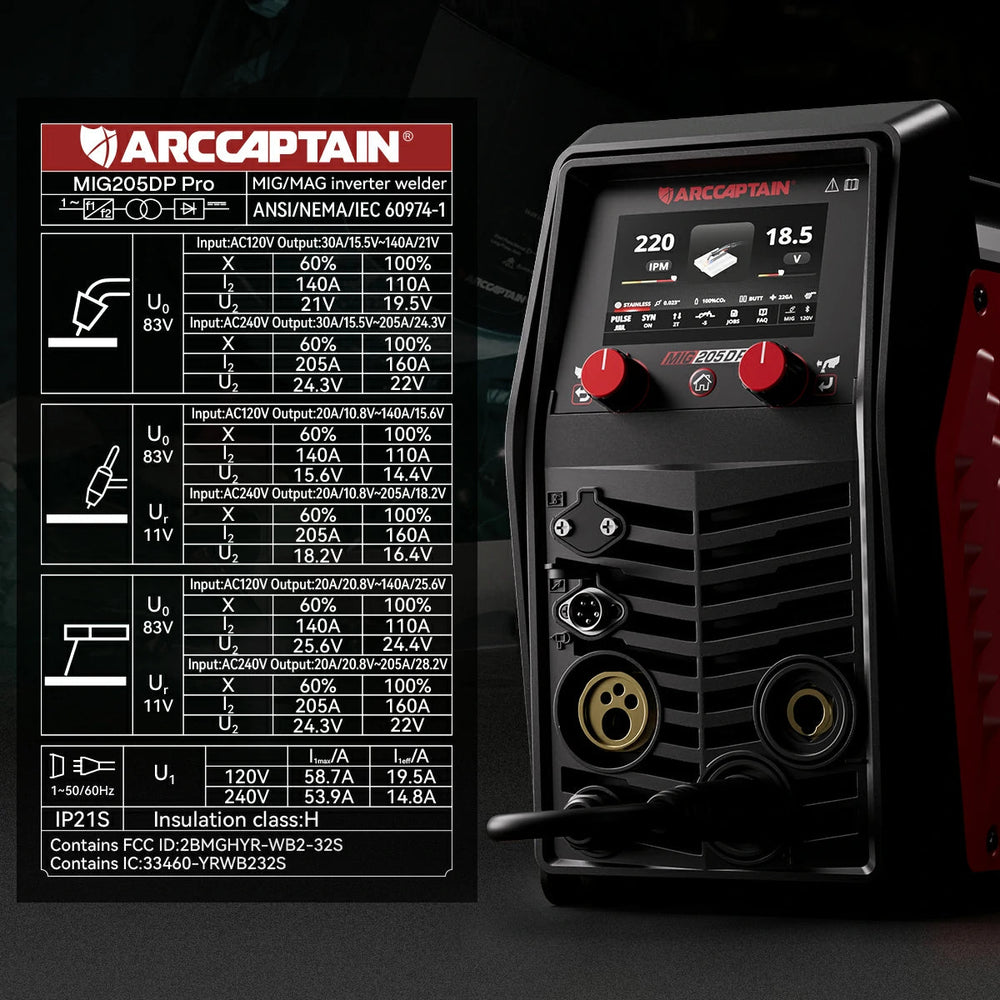

Specifications
| Rated Input Voltage | AC120V ±15%; AC240V ±15% |
| Rated Input Power | 4.9 kVA at 120V; 6.9 kVA at 240V |
| Rated Input Current | 46A at 120V; 35.6A at 240V |
| Welding Current Range (MMA) | 20–140A at 120V; 20–205A at 240V |
| Welding Current Range (TIG) | 20–140A at 120V; 20–205A at 240V |
| Welding Voltage Range (MIG) | 11–22V at 120V; 11–28V at 240V |
| Wire Feed Speed Range | 1.5–12 m/min (60–480 IPM) at 120V; 1.5–16 m/min (60–640 IPM) at 240V |
| Rated Duty Cycle | 60% |
| Open Circuit Voltage | Uo 83V; Ur 11V |
| Overall Efficiency | 85% |
| Ingress Protection Rating | IP21S |
| Welding Thickness - MIG | 0.04"–0.47" |
| Welding Thickness - Pulse MIG | 0.03"–0.31" |
| Welding Thickness - Flux MIG | 0.06"–0.47" |
| Welding Thickness - MMA | 0.06"–0.39" |
| Welding Thickness - Lift TIG | 0.04"–0.39" |
| Power Factor | 0.72 |
| Insulation Class | H |
| Dimensions | 17.3 x 12.7 x 7.9 in. |
| Weight | 21.6 lbs. |
| Applicable Electrode / Wire (Inch) | 1/16, 3/32, 1/8, 5/32 / 0.023–0.040 |
Package Contents
MIG205DP Pro Welder
User Manual
Warranty
This item comes with a 3 year warranty.
