Arccaptain TIG Welding Torch Parts 71 Pieces for TIG200/TIG200P New
Manufacturer: Arccaptain
SKU: 10240100210
QTY
(888) 999-1522
$ 68.98
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $5 off at checkout
Ships in (est) 2-3 business days
Exceptional Customer Service
Authorized Dealer
Arccaptain TIG Welding Torch Parts 71 Pieces for TIG200/TIG200P New
Product Overview
This Arccaptain TIG Welding Torch Parts Kit is a complete consumables set designed to keep your TIG torch running smoothly. It includes essential TIG torch wear parts made from pure copper for strong conductivity and reliable performance. The kit is compatible with common 17 & 26 series air-cooled torches and 18 series water-cooled torches, including select ARCCAPTAIN, Lincoln, Miller, and Weldcraft-style torches.
Brand new
90 days factory warranty
Manufacturer direct shipping from CA
Authorized Arccaptain dealer
Features
- Complete TIG Torch Parts - 71pcs Tig Welding Torch accessories (consumables) kit. This set includes all the essential TIG torch accessories and consumables, so you can get started on your welding projects right away.
- Compatible - This TIG torch accessories kit fits all 17 & 26 series air-cooled torches and 18 series water-cooled torches, including the ARCCAPTAIN TIG welding torches(quick connector 10-25mm/35-50mm/XS12-5P), Lincoln PTA-17, PTA-18, and PTA-26 torches, Miller Diamondback DB17, DB18 and DB 26 torches, along with the Weld craft WP-17, WP-18 and WP-26 torches.
- Highlights - Pure Copper Material, Accurate Punching, Precise Cutting. Electric conductivity is similar to a 2% thoriated tungsten electrode at either AC or DC. No need to change any welding program. With excellent plasticity, toughness, and crack resistance, especially low-temperature impact toughness higher.
- Wide Application - WP-17 WP-18 WP-26 TIG Welding Torch, for many locations of the pipeline TIG welding arc welding and arc welding, can be welded carbon steel and some low alloy steel.

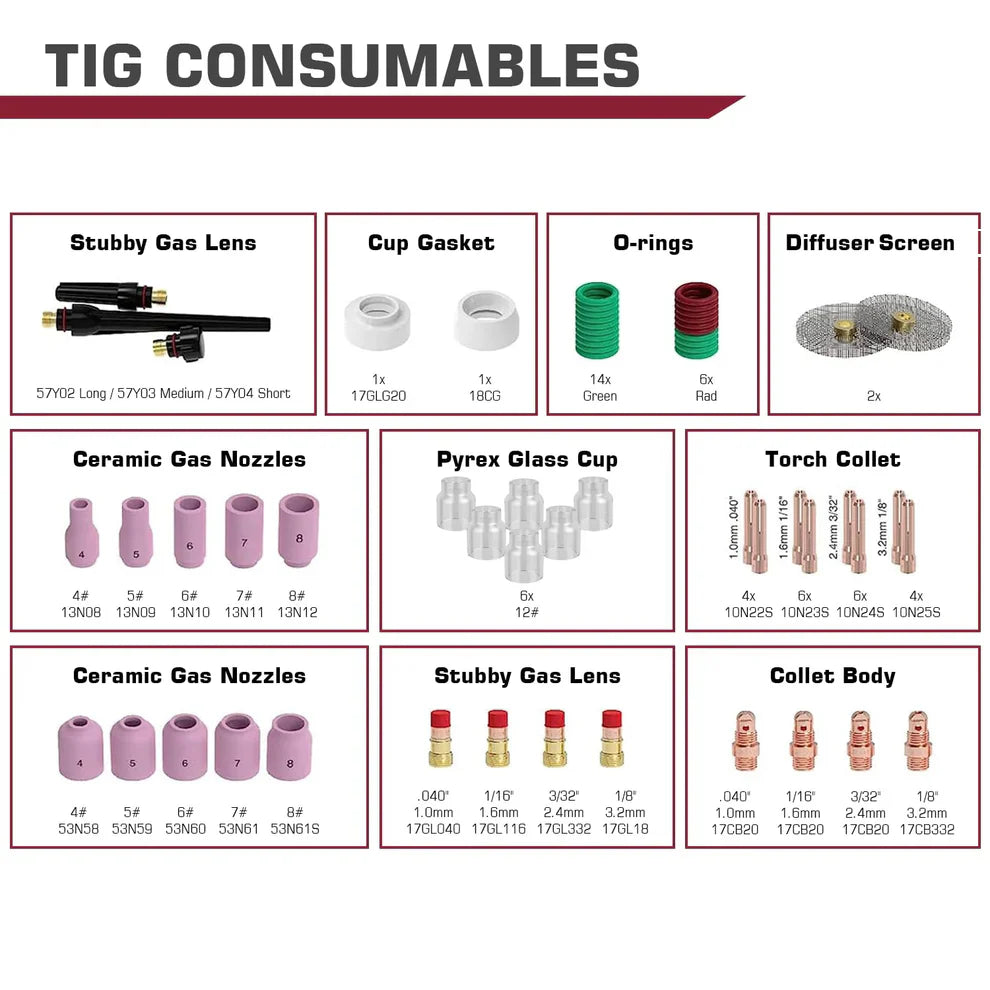

Specifications
| Quantity | 71 pieces |
| Stubby Gas Lens | 57Y02Long/ 57Y03Medium/ 57Y04Short |
| Cup Gasket | 17GLG20/18CG*1 |
| Ceramic Gas Nozzles | 4#13N08/ 5#13N09/ 6#13N10/ 7#13N11/ 8#13N12 |
| Pyrex Glass Cup | 12# x6 |
| Torch Collet | 10N22S x4/ 1ON23S x6/ 1ON24S x6/ 10N25S x4 |
| Ceramic Gas Nozzles | 4#53N59/ 5#53N60/ 6#53N60/ 7#53N61/ 8#53N61S |
| Stubby Gas Lens | .040'' 1.0mm 17GL040/ 1/16'' 1.6mm 17GL116/ 3/32" 2.4mm 17GL332/ 1/8'' 3.2mm 17GL18 |

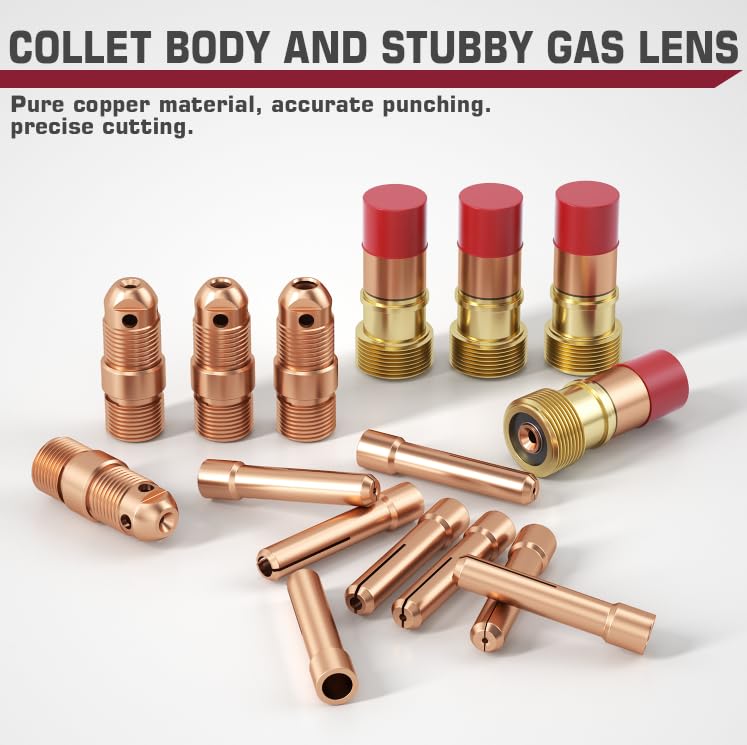

| Collet Body | .040'' 1.0mm 17CB20/ 1/16''1.6mm 17CB20/ 3/32" 2.4mm 17CB20/ 1/8'' 3.2mm 17CB332 |
| Package Weight | 2 lbs |
| Package Dimensions | 11.8 x 5.9 x 1.18 in |

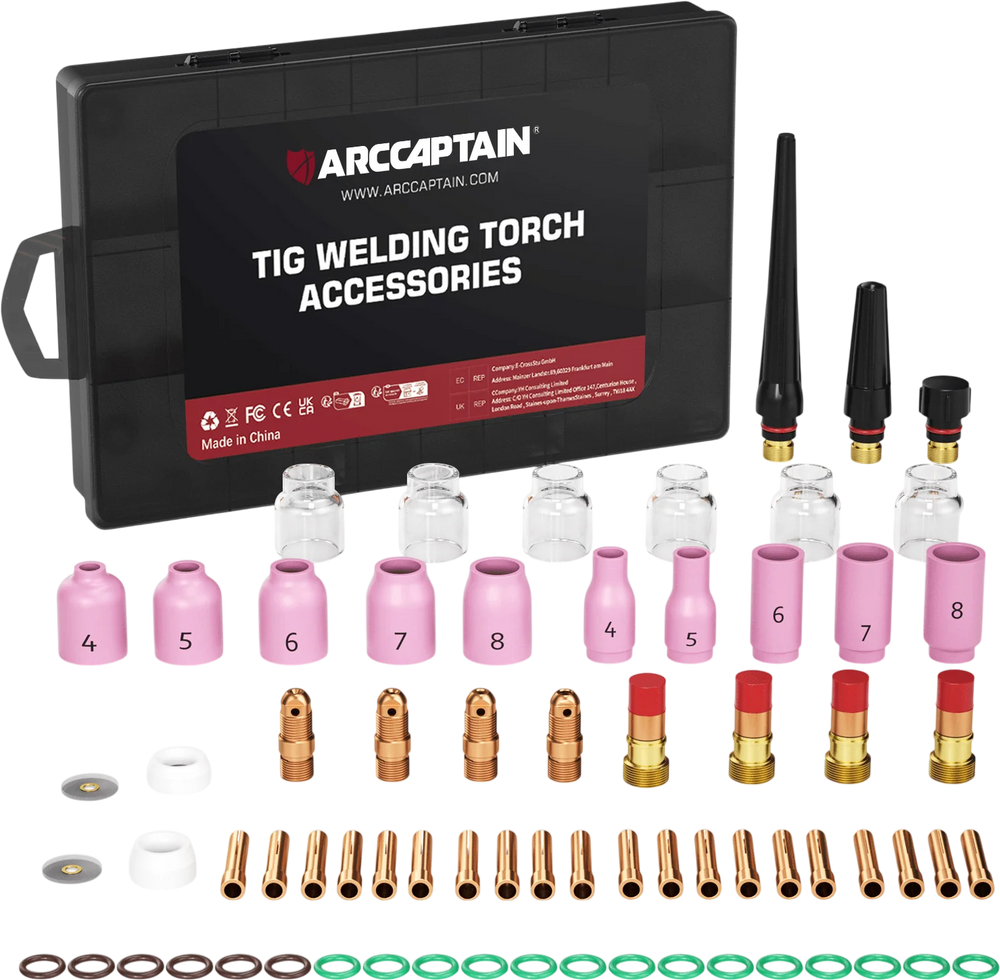

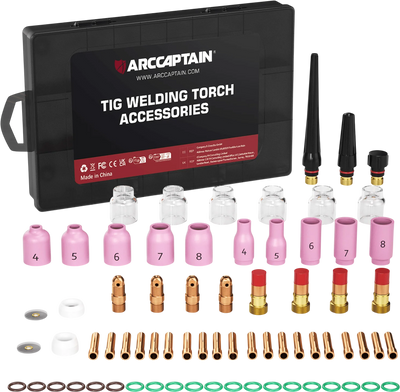

Package Contents
Arccaptain TIG Welding Torch Parts (71 Pieces)
Stubby Gas Lens (7)
Cup Gaskets (2)
O-Rings (20)
Screen Diffusers (2)
Ceramic Gas Nozzles (10)
Pyrex Glass Cups (6)
Torch Collets (20)
Collet Bodies (4)
Warranty
This item comes with a 90 day warranty.
