Arccaptain TIG205 Pro Welder DC TIG Spot Cold with Stick IGBT 120/240V App Control New
Product Overview

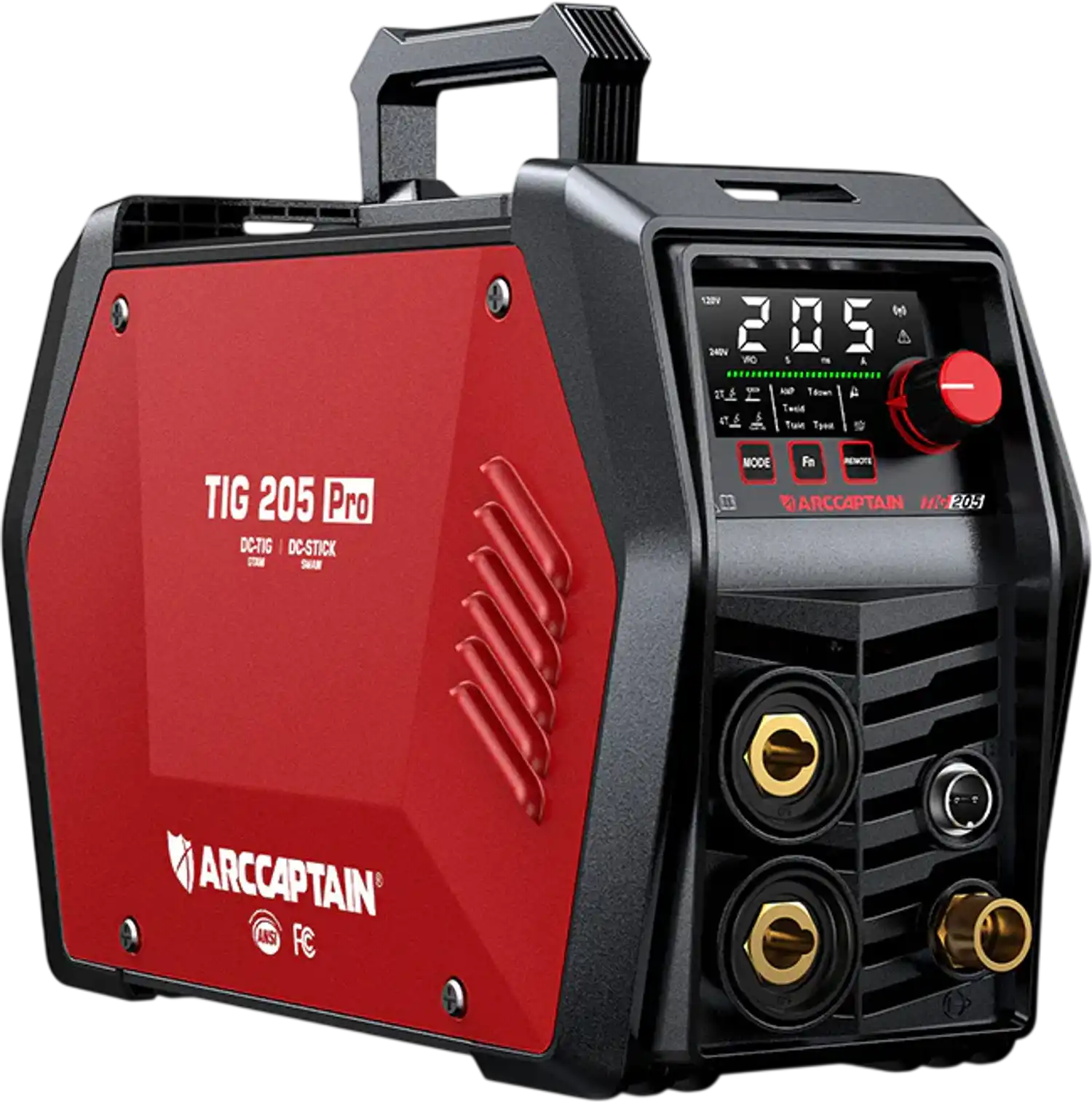

The Arccaptain TIG205 Pro is a multi-process TIG welder built for high-frequency DC TIG, cold welding, and MMA stick welding. It offers app-enabled Bluetooth control for remote parameter adjustment and supports multiple current control methods including torch, foot pedal, control panel, and mobile app. A large LED display helps simplify setup and operation, while 2T/4T functionality improves comfort during both short and long welding sessions. Its compact, lightweight design makes it suitable for a wide range of shop and jobsite applications.
Brand new
3 year factory warranty
Manufacturer direct shipping from CA
Authorized Arccaptain dealer
Features

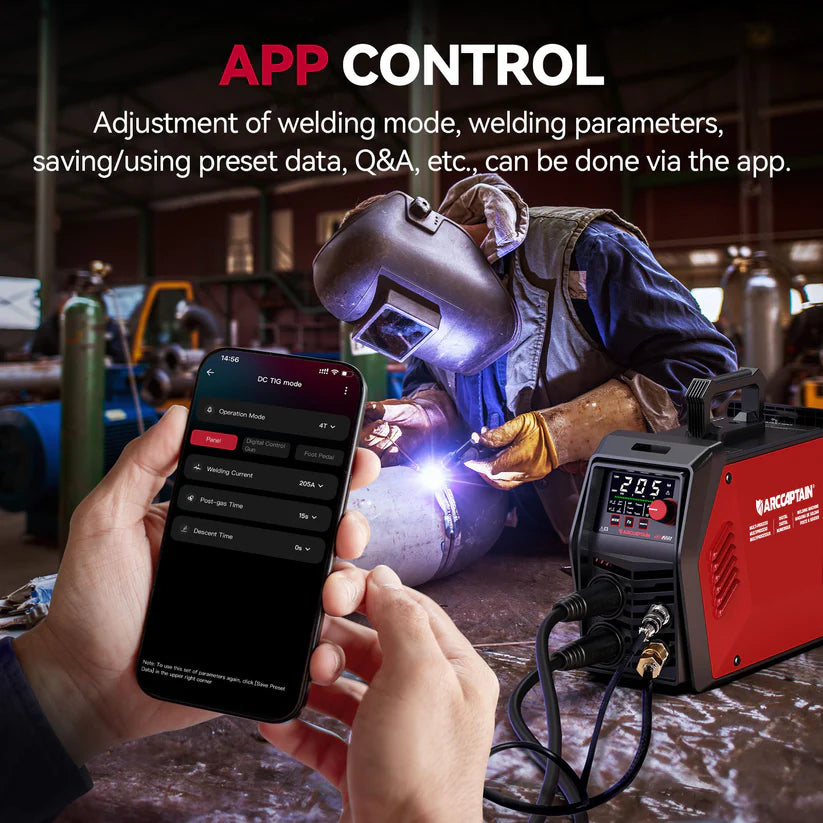

- Remotely adjust welding parameters : Enhance your control and convenience by connecting the TIG205 Pro to your smartphone via Bluetooth. With our dedicated mobile app, you can adjust various welding parameters directly from your phone. This feature provides unparalleled convenience, allowing for remote control and fine-tuning without the need to stop your work and manually adjust settings on the machine. With the APP, you can remotely adjust welding parameters for precise control without needing to stop your work.
- 3 in 1 TIG Welder: The TIG205 Pro is a versatile welding machine that supports multiple welding modes including high-frequency DC TIG, cold welding, and MMA stick welding. This all-in-one functionality makes it ideal for a wide range of applications, from delicate, precision tasks to more robust welding projects, allowing you to tackle various challenges with a single machine.

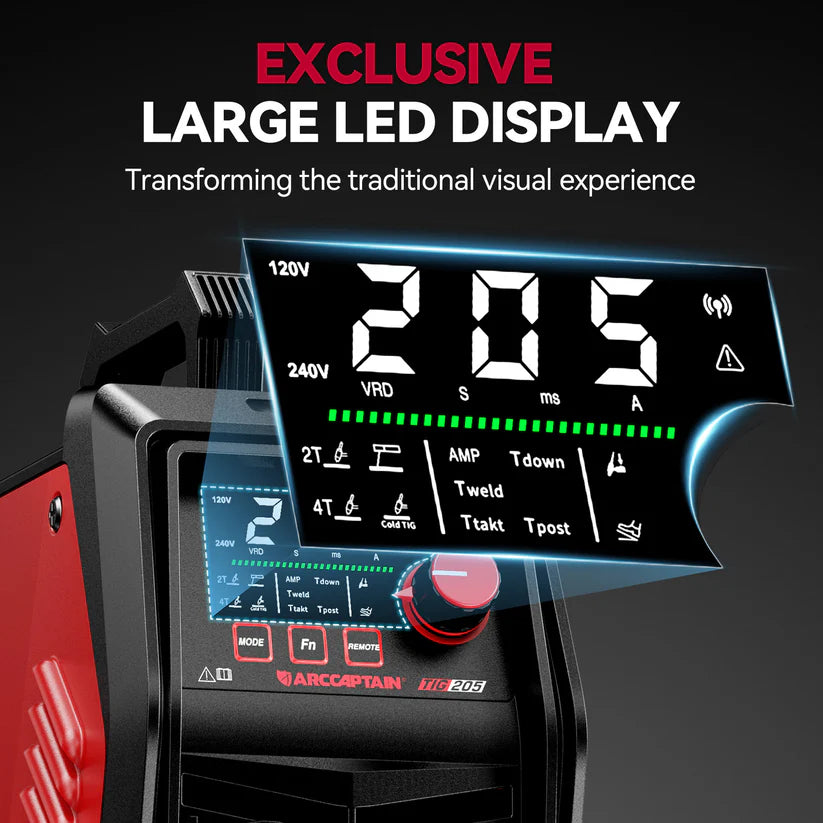

- User-friendly display screen: The welder is equipped with a large 39*82.4mm LED display that provides a clear and straightforward interface. The user-friendly screen layout simplifies the operation and setup processes, allowing you to easily read and adjust settings even in less-than-ideal lighting conditions. This intuitive design helps to minimize setup time and reduce the likelihood of errors, ensuring a smoother welding experience.
- 2T/4T Operation: This welder supports both 2T and 4T operations in HF TIG mode. The 2T mode is perfect for tasks requiring flexible and intermittent cutting, providing you with quick on/off control. The 4T mode is designed for longer welding sessions, helping to alleviate operator fatigue by allowing you to lock the torch trigger for continuous welding without holding the button down, thus improving comfort and efficiency.
- Supports Foot Pedal : The TIG205 Pro offers several methods to adjust the welding current, giving you maximum flexibility. You can control the current using the torch, a foot pedal, the control panel on the machine, or through the APP. This versatility ensures that you can always find the most comfortable and efficient way to work, whether you prefer hands-free foot control or the precision of panel adjustments.
Specifications
| Model | TIG205 Pro |
| Rated Input Power | Single Phase AC240V; Single Phase AC120V |
| Rated Input Capacity | 7.8 kVA at 240V; 5.1 kVA at 120V |
| Rated Input Current | 33A at 240V; 43A at 120V |
| Rated Output Current/Voltage | 240V TIG: 205A/18.2V; 240V MMA: 205A/28.2V | 120V TIG: 145A/15.8V; 120V MMA: 145A/25.8V |
| Rated Duty Cycle | 60% |
| No-load Voltage | DC 65V |
| Output Current Range | 240V TIG: 10-205A; MMA: 10-205A | 120V TIG: 10-145A; MMA: 10-145A |
| Post-flow Time | 0-15 s |
| Down Slope | 0-15 s |
| Tweld | 10-999 ms |
| Ttakt | 0.1-10 s |
| Arc Ignition Type | HF |
| Enclosure Protection Class | IP21S |
| Insulation Grade | H |
| Power Factor | 0.73 |
| Efficiency | 80% |
| Dimensions | 15.2 x 6.1 x 9.6 in |
| Net Weight | 11.68 lbs |

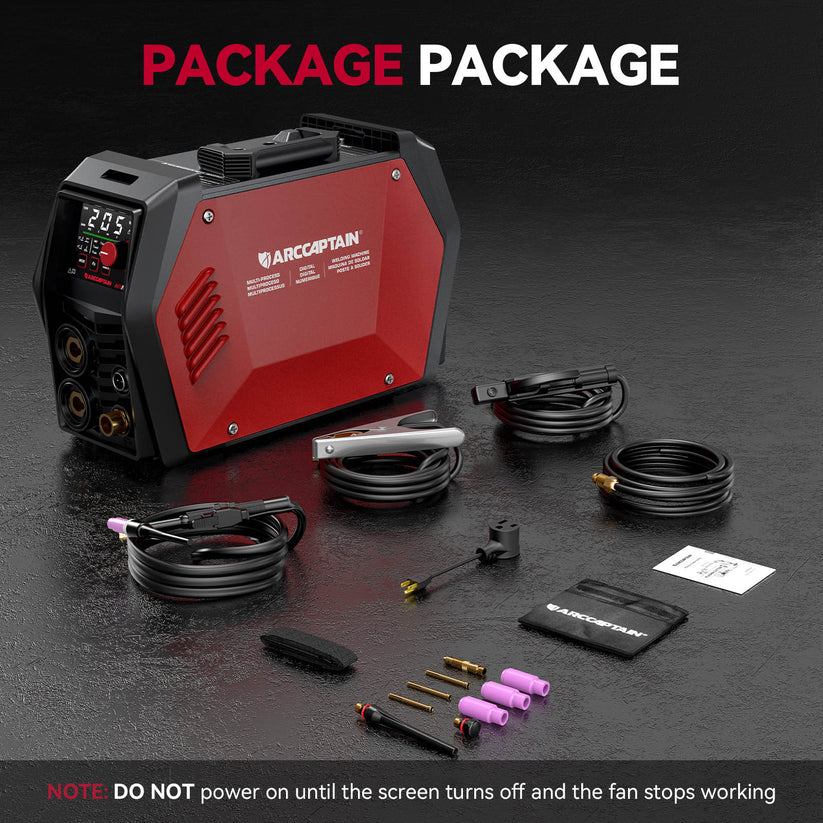

Package Contents
TIG205 Pro TIG Welder
13' WP-26 TIG Torch & Accessories
10' Electrode Holder
10' Earth Clamp
Gas Hose with Gas Connector
240V to 120V Adapter
Strap
Tungsten Electrode
User Manual
Warranty
This product comes with a 3 year factory warranty.
