Aston Technologies ASL-FR9022 Full-Rise Scissor Lift 9,000 Lbs 72" Electric Lock Release 220V New

Product Overview

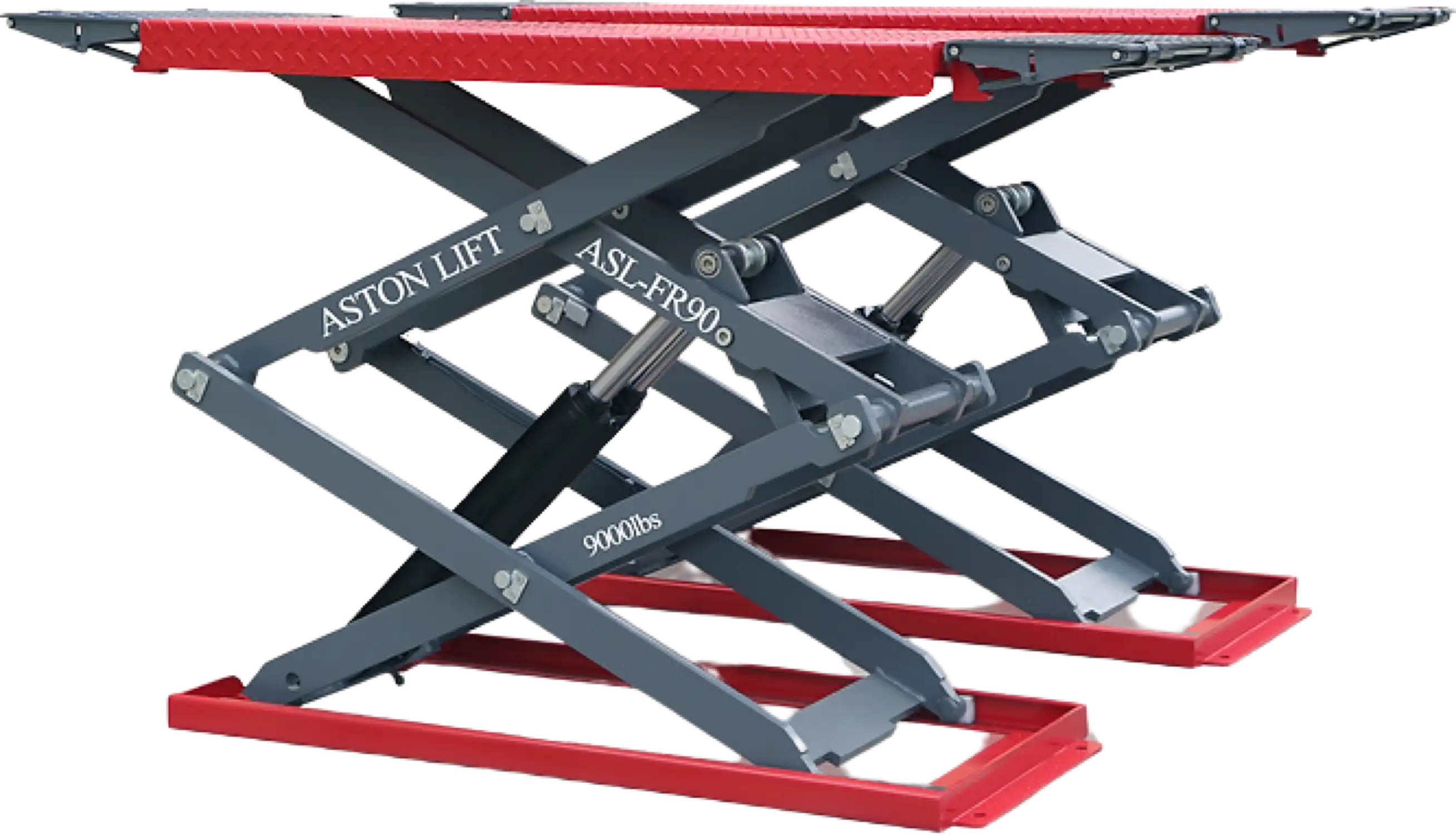

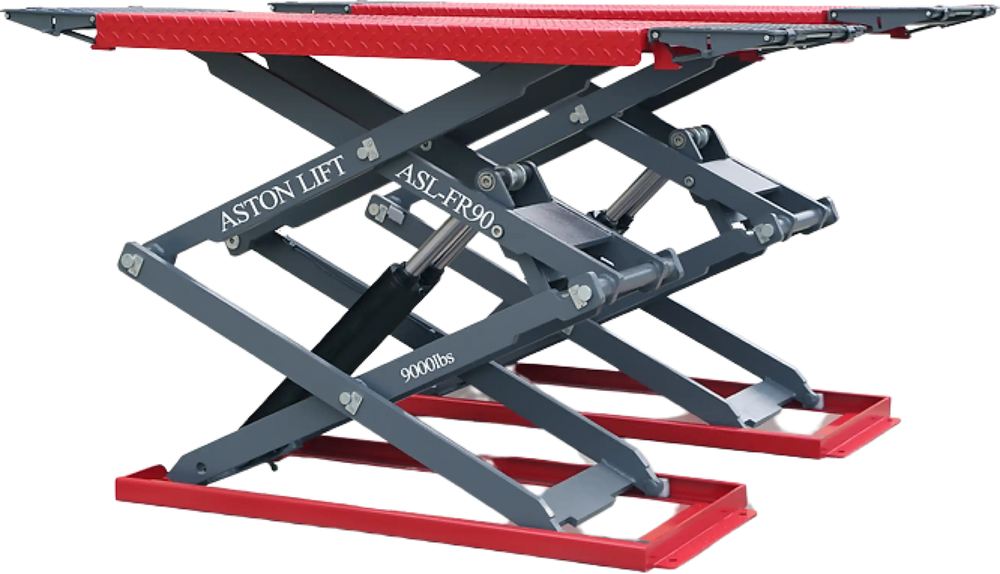

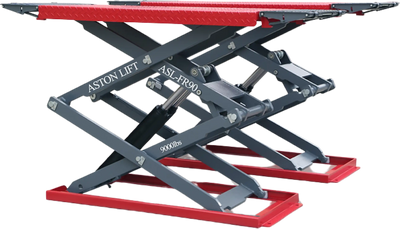

Aston Technologies Full-Rise Scissor Lift is capable of lifting up to 9,000 lbs with steady raising and lowering, effortlessly supporting a wide range of vehicles. This scissor lift is equipped with drive-on ramps that lock into position to serve as platform extensions. The electric release safety locking system, cylinders with anti-surge valves, and a height limit switch help to ensure safe operation.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from VA

checkmark

Authorized Aston Technologies dealer

Features

  • With a 9,000 lbs lifting capacity, this lift provides steady raising and lowering and makes no noise when lowered to the ground, contributing to a quieter and more efficient workshop environment.
  • This lift features a four cylinder design with anti-surge valves. Additionally, an auxiliary oil return system and oil injection hole work to prevent rust if not used for a long time and require less maintenance.
  • Equipped with a height limit switch, 24V safe control system, and an electric released safety locking system for secure operation, this lift prioritizes operator safety.
  • This lift has a maximum lifting height of 72" and a platform lenght of 59". The drive-on ramps lock into position as platform extensions, providing added stability during use.
  • The powder coated finish provides enhanced durability for long-term use, this lift is built to withstand daily use in demanding environments. Self-lubricated bushings and bearings further reduce maintenance requirements, ensuring reliable performance over time.

Specifications

Model ASL-FR9022
Power 2.2KW
Voltage 220V, 50Hz, 1 PH
Capacity 9,000 lbs
Max. Lifting Height 72"
Min. Height 4"
Platform Length 59"
Platform Width 24"
Lifting Time <50s
Lowering Time <30s
Overall Length 81"
Overall Width 80"
Overall Weight 1,608 lbs

Package Contents

Aston Technologies ASL-FR9022 Full-Rise Scissor Lift

User Manual

Warranty
