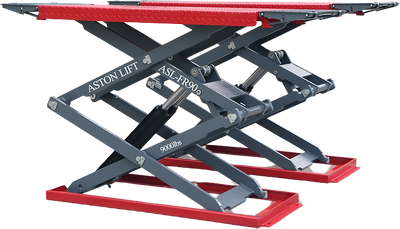

Aston Technologies ASL-FR9022 Full-Rise Scissor Lift 9,000 Lbs 72" Electric Lock Release 220V New
Manufacturer: Aston Technologies
SKU: ASL-FR9022
Voltage
QTY
or
(888) 999-1522
$ 5,669.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Aston Technologies ASL-FR9022 Full-Rise Scissor Lift 9,000 Lbs 72" Electric Lock Release 220V New
Product Overview
Aston Technologies Full-Rise Scissor Lift is capable of lifting up to 9,000 lbs with steady raising and lowering, effortlessly supporting a wide range of vehicles. This scissor lift is equipped with drive-on ramps that lock into position to serve as platform extensions. The electric release safety locking system, cylinders with anti-surge valves, and a height limit switch help to ensure safe operation.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from VA
Authorized Aston Technologies dealer
Features
- With a 9,000 lbs lifting capacity, this lift provides steady raising and lowering and makes no noise when lowered to the ground, contributing to a quieter and more efficient workshop environment.
- This lift features a four cylinder design with anti-surge valves. Additionally, an auxiliary oil return system and oil injection hole work to prevent rust if not used for a long time and require less maintenance.
- Equipped with a height limit switch, 24V safe control system, and an electric released safety locking system for secure operation, this lift prioritizes operator safety.
- This lift has a maximum lifting height of 72" and a platform lenght of 59". The drive-on ramps lock into position as platform extensions, providing added stability during use.
- The powder coated finish provides enhanced durability for long-term use, this lift is built to withstand daily use in demanding environments. Self-lubricated bushings and bearings further reduce maintenance requirements, ensuring reliable performance over time.
Specifications
| Model | ASL-FR9022 |
| Power | 2.2KW |
| Voltage | 220V, 50Hz, 1 PH |
| Capacity | 9,000 lbs |
| Max. Lifting Height | 72" |
| Min. Height | 4" |
| Platform Length | 59" |
| Platform Width | 24" |
| Lifting Time | <50s |
| Lowering Time | <30s |
| Overall Length | 81" |
| Overall Width | 80" |
| Overall Weight | 1,608 lbs |
Package Contents
Aston Technologies ASL-FR9022 Full-Rise Scissor Lift
User Manual
Warranty
This item comes with a 1 year limited factory warranty.
