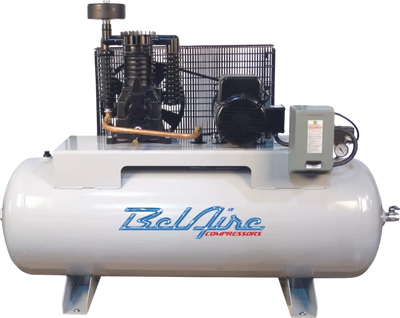

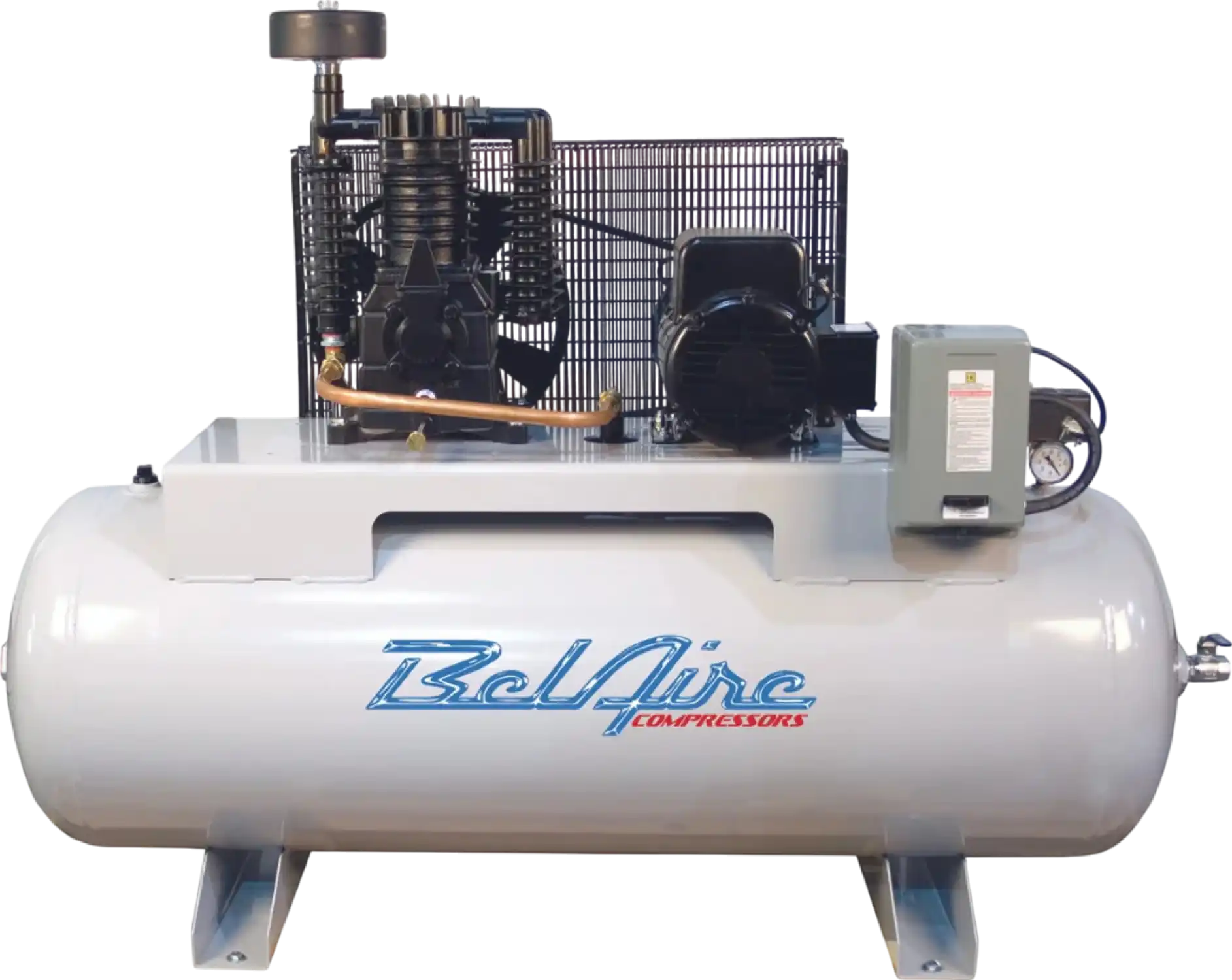

Belaire 318HE Air Compressor Elite Series 80 Gal. 5 HP Two Stage 208/230V Single Phase New
Manufacturer: Belaire
SKU: 8090250009
QTY
or
(888) 999-1522
$ 3,688.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-10 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 2 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Belaire 318HE Air Compressor Elite Series 80 Gal. 5 HP Two Stage 208/230V Single Phase New
Product Overview
This Elite Series air compressor comes equipped with a magnetic starter, low oil level switch, and automatic tank drain. Featuring a 5 HP motor and 80 gallon tank, this compressor outputs 18.5 CFM at 100 PSI.
Brand new
2 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Belaire dealer
Features
- Solid cast iron cylinder sleeve 2-stage pump
- Delivers 18.5 CFM at 100 PSI
- Elite Series triple pass pump-mounted aftercooler
- Start / Stop pressure switch controls
- 80 gallon ASME tank for big jobs or multiple users
- Automatic tank drain
- Low oil switch protects the pump; sight glass for easy maintenance
- Fully enclosed high-flow belt guard
- 208/230V single phase power
Specifications
| Voltage | AC 208-230V |
| Phase | Single Phase |
| Magnetic Starter | Yes |
| Horsepower | 5 HP |
| CFM @ 100PSI | 18.5 CFM |
| Pump Material | Aluminum w/ Cast Iron Sleeve |
| Max Pressure | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil System | Splash Lubricated |
| Low Oil Shut-off | Yes |
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4" |
| Tank Orientation | Horizontal |
| Product Dimensions | 71" x 24" x 49" |
| Shipping Weight | 501 lbs. |
Package Contents
Belaire 318HE 5HP 80 Gal. Two Stage Air Compressor
User Manual
Warranty
This item comes with a 2 year factory warranty.
