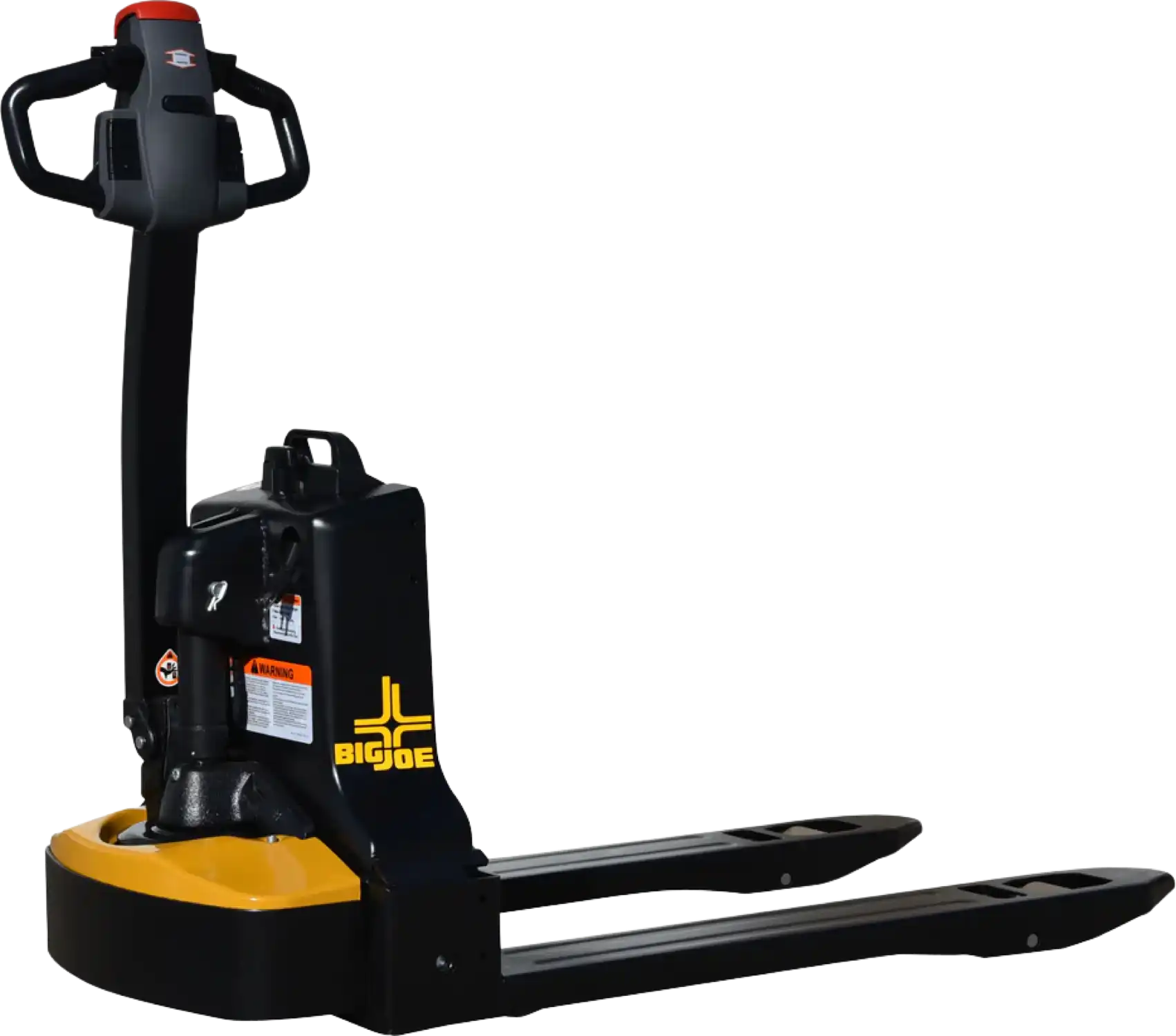

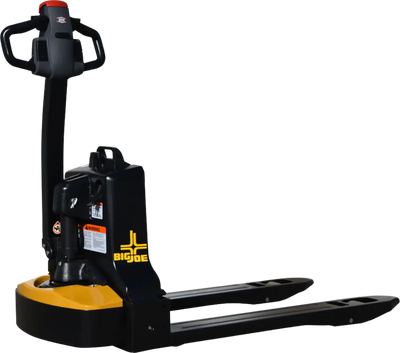

Big Joe LPT33 Lithium Pallet Truck Fully Electric 3,300 Lbs Capacity New
Manufacturer: Big Joe
SKU: LPT33
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 3,540.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Big Joe LPT33 Lithium Pallet Truck Fully Electric 3,300 Lbs Capacity New
Product Overview
The LPT33 fully electric pallet jack features an easy exchange Li-Ion battery, allowing you to purchase extra batteries and make running out of power a non-issue. This pallet truck is designed for use with standard 48" pallets and other common skids and containers. The forks can achieve a maximum height of 7.75" and are shaped at the load wheel housings for pallet entry and exit without the need for wearable rollers. The easy exchange battery delivers up to 2.5 hours of operation and can be fully charged within 2 hours.
Brand new
2 year factory warranty
Manufacturer direct shipping from CA, TX, & WI
Authorized Big Joe dealer
Features
- Easy exchange Li-Ion batteries provide up to 2.5 hours of run-time per charge and can be fully charged within 2 hours.
- All operator controls are accessible without having to lift one's hand from the handle grips. Travel, lift, and lower functions are located on the ergonomic control head.
- The pallet truck includes a key switch to limit access to approved personnel. The battery discharge indicator keeps you updated on the battery's status.
- An electromechanical brake provides good stopping power when the handle is upright or lowered beyond the operating range.
- The LPT33 has a max load capacity of 3,300 lbs. Variable speed from 0 to 2.9 mph when empty, and 0 to 2.7 mph loaded.
Specifications
| Item Model Number | LPT33 |
|---|---|
| Capacity | 3,300 lbs. @ 24" load center |
| Power | 24V Electric with Transistor Controller |
| Max Lift Height | 7.75" |
| Collapsed Height | 3.25" |
| Turning Radius | 52.5" |
| Travel Speed | 2.9 mph (empty), 2.7 mph (loaded) |
| Battery Type | Easy Exchange Li-Ion Battery |
| Battery Capacity | 24V 20AH rechargeable |
| Charger | 110V plug-in internal |
| Tires/Wheels | Drive: (1) 8.3" x 2.8" Polyurethane | Load: (2) 2.9" x 3.5" Polyurethane |
| Brakes | Electromechanical Brake |
|---|---|
| Overall Fork Dimensions | 46" x 27" |
| Individual Fork Dimensions | 45" x 6" x 3.2" |
| Vehicle Dimensions | 60" x 27" x 47" |
| Weight (with Battery) | 375 lbs. |
Package Contents
Big Joe LPT33 Lithium Pallet Truck
User Manual
Warranty
This item comes with a 2 year/1000 hour limited warranty on the frame, transmission, and power train. 1 year limited warranty on the batteries, and 6 months on all other parts excluding wearables.
