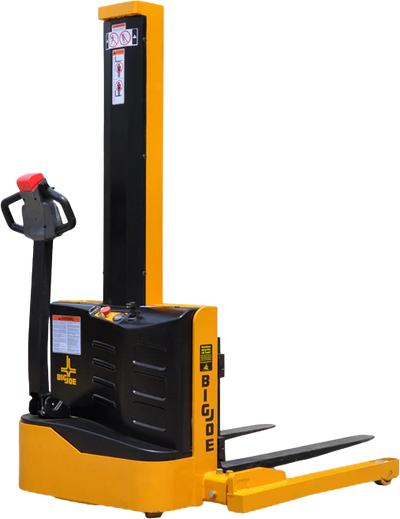

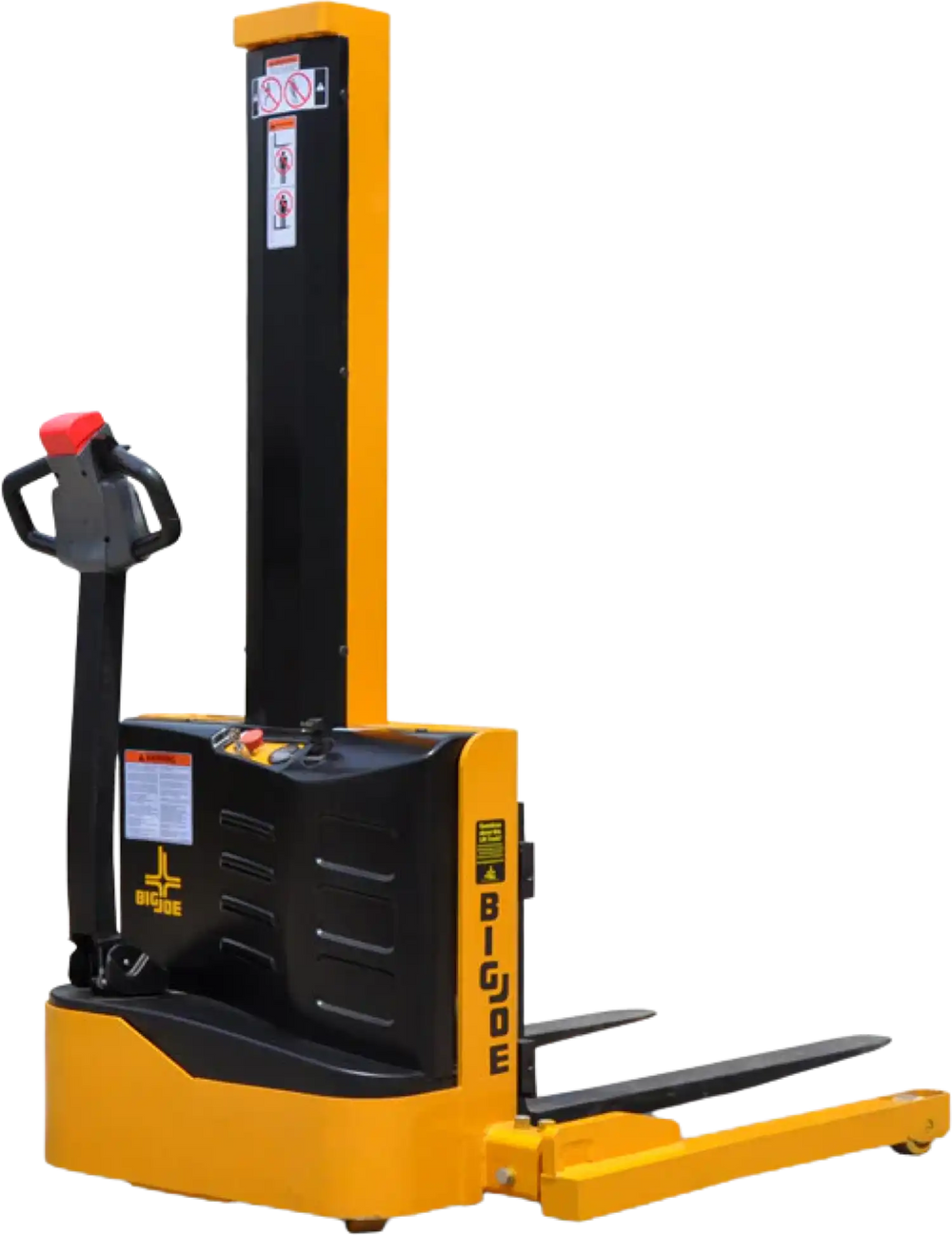

Big Joe S22-62 Walkie Straddle Stacker 2200 Lbs Capacity 62" Max Lift Height New
Manufacturer: Big Joe
SKU: S22-62
Max Lift Height
QTY
(888) 999-1522
$ 6,999.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 5-7 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 2 year/1000 hour limited warranty on the frame, transmission, and power train. 1 year limited warranty on the battery, and 6 months on all other parts excluding wearables.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year/1000 hour limited warranty on the frame, transmission, and power train. 1 year limited warranty on the battery, and 6 months on all other parts excluding wearables.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

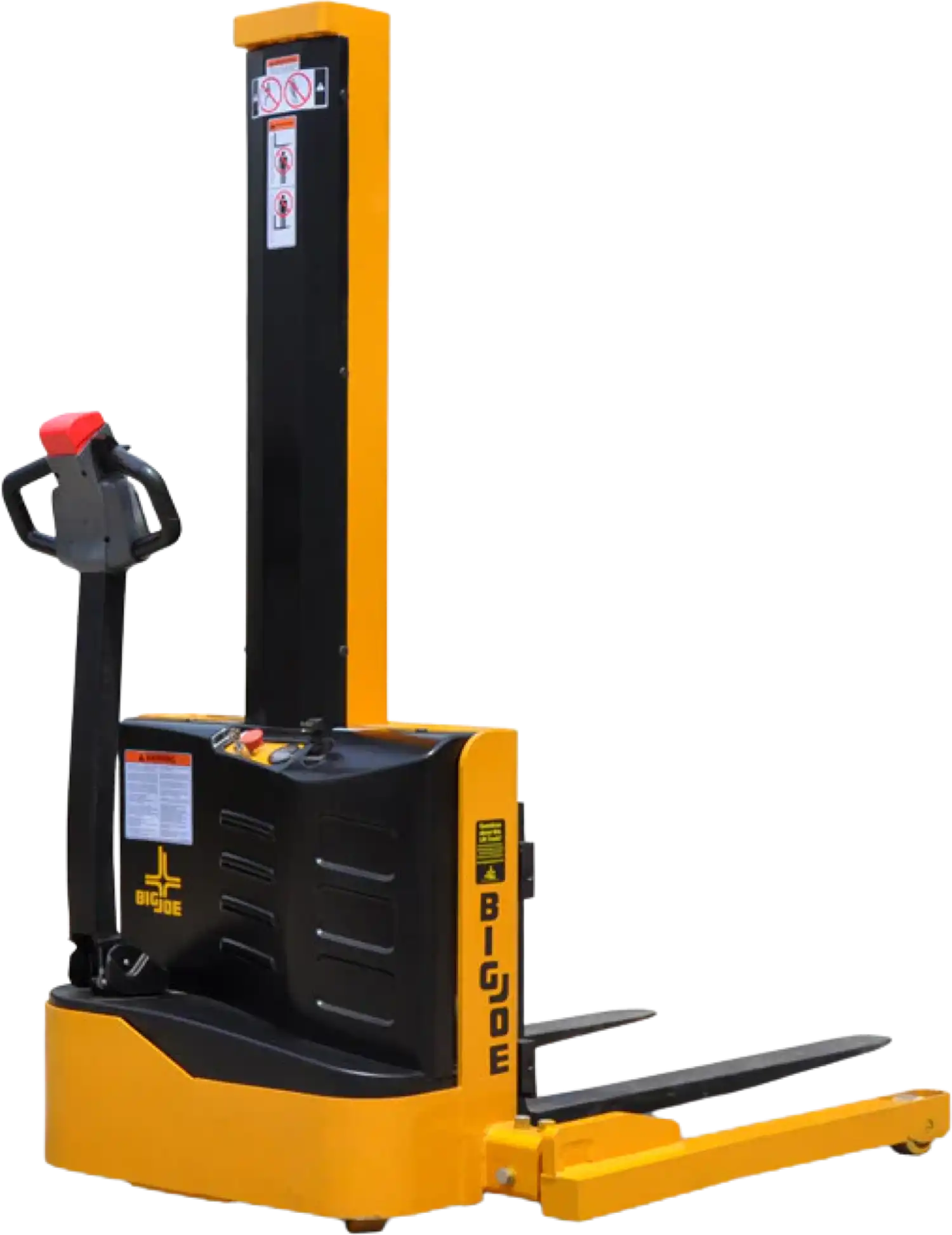

Big Joe S22-62 Walkie Straddle Stacker 2200 Lbs Capacity 62" Max Lift Height New
Product Overview
Brand new
2 year factory warranty
Manufacturer direct shipping from CA, TX, & WI
Authorized Big Joe dealer
Features
- This stacker features two 12V 85AH maintenance-free batteries, and a 110V smart charger which ensures the batteries are not overcharged when left plugged in.
- Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift one's hand from the handle. The angle grips are designed to allow easy operation with either hand.
- An offset steering arm provides excellent line of sight for operators. Capable of right angle stacking in aisles as narrow as 60".
- The electro-magnetic disc brake provides good stopping power. The fully enclosed wheel guard and flush mounted axles prevent wheel and axle damage during normal use.
- The S22-62 has a max load capacity of 2200 lbs. It has a travel speed of 3.1 mph empty, and 2.5 mph when loaded. It is capable of a lifting speed up to 39 fpm when empty and up to 20 fpm loaded, with a lowering speed of 21 fpm.
Specifications
| Item Model Number | S22-62 |
| Capacity | 2,200 lbs. @ 24" load center |
| Power | 24-volt DV |
| Max Lift Height | 62" |
| Collapsed Height | 2" |
| Turning Radius | 52.5" |
| Travel Speed | 3.1 mph (empty), 2.5 mph (loaded) |
| Battery Type | (2) 12V 85AH Maintenance-free Batteries |
| Charger | 110V Smart Charger |
| Battery Capacity | 85AH |
| Tires/Wheels | Drive: 8.3" x 2.8" Polyurethane | Stability Casters: 4" x 2" Polyurethane | Tandem Load: (2) 4" x 2" Polyurethane |
| Brakes | Electro-magnetic Disc Brake |
| Overall Fork Dimensions | 42" x 29.5" |
| Individual Fork Dimensions | 42" x 4" x 1.5" |
| Fork Diameter Adjustments | 8" to 29.5" |
| Straddle Leg Inside Dimension | 38" to 50" (in 4" increments) |
| Vehicle Dimensions | 62" x 44"-56" x 76.5" |
| Weight (with Battery & Charger) | 1200 lbs. |
Package Contents
Big Joe S22-62 Walkie Straddle Stacker
User Manual
Warranty
This item comes with a 2 year/1000 hour limited warranty on the frame, transmission, and power train. 1 year limited warranty on the battery, and 6 months on all other parts excluding wearables.
