Bishamon LX LoProfile Lift Table Electro-Hydraulic 2,200 Lbs Load 115V New
Product Overview

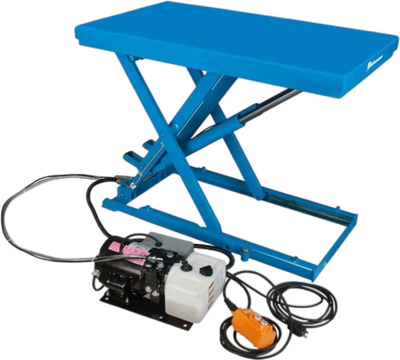

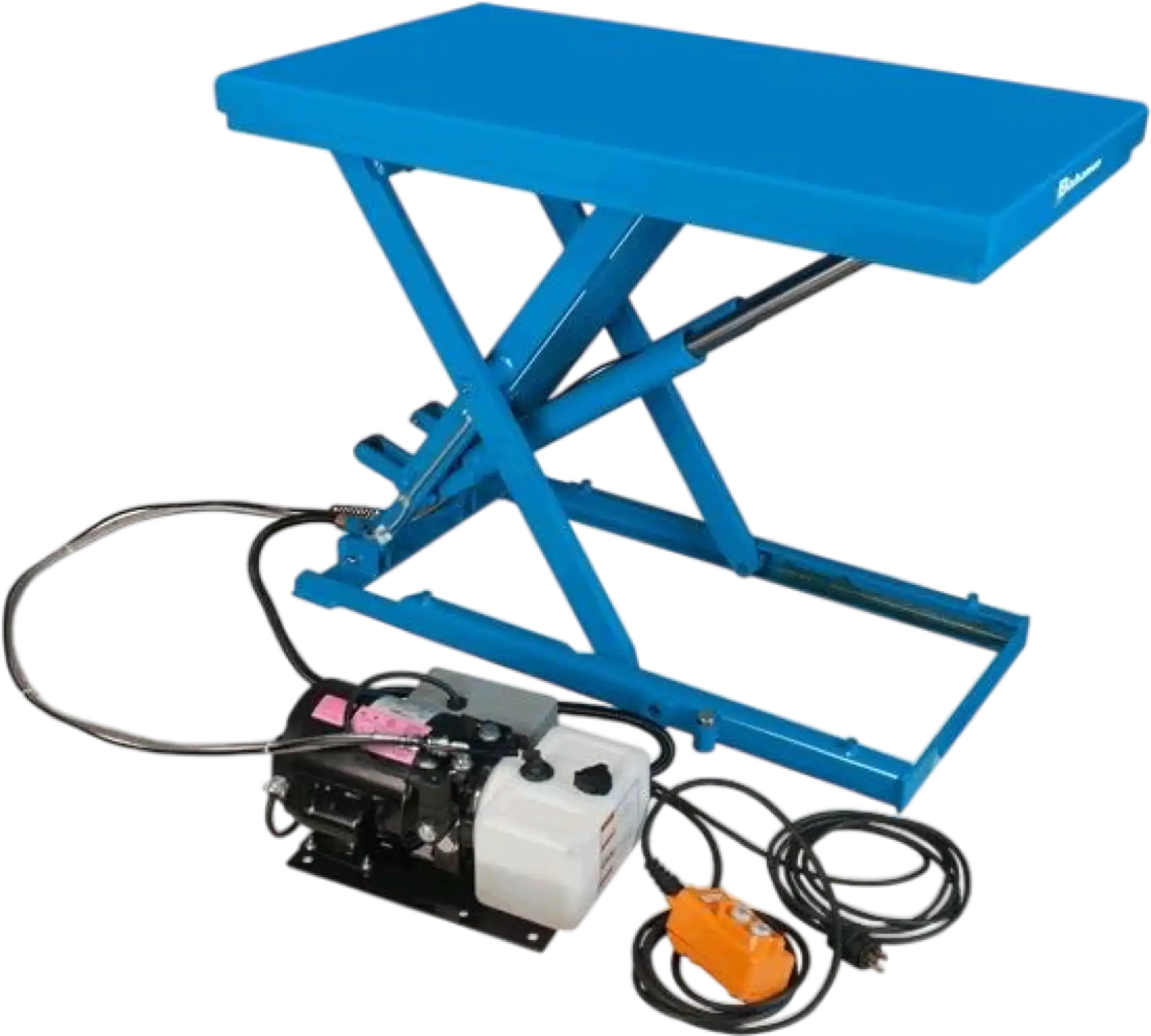

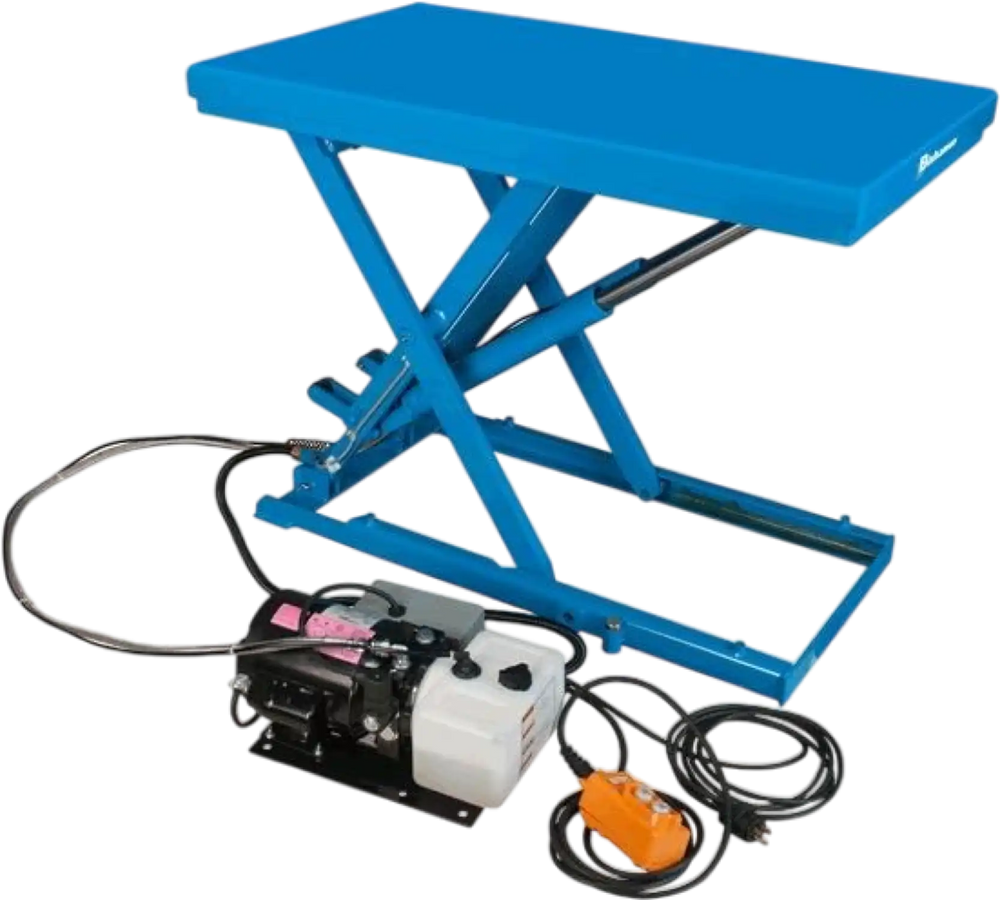

The Bishamon LX Series LoProfile Lift Table is a heavy-duty scissor lift table designed for lifting and positioning heavy loads. Boasting a 2,200 lb. load capacity, it's designed with a low collapsed height which allows for seamless access by pallet jacks, four-wheeled carts, and other low-clearance applications. Every model features a full-perimeter electric toe guard around the platform that ensures operator safety.
Brand new
1 year warranty
Manufacturer direct shipping from CA
Authorized Bishamon dealer
Features
- Extremely low collapsed height of 3.3" provides access for rolling products, carts, or pallet trucks.
- Electric full-perimeter toe guard around the platform provides optimum operator safety.
- Heavy-duty construction with captured scissor rollers for maximum stability.
- Remote power unit with hand held control.
- 24V operator control voltage.
- High performance external electric-hydraulic power unit.
- Durable steel braided hydraulic hose.
Specifications
| Model | LX-100N/W |
| Load Capacity | 2,200 lbs |
| Travel | 35.5" |
| Platform | 24.5" x 51" or 34.5" x 51" |
| Platform Height Lowered | 3.3 |
| Platform Height Raised | 38.6" |
| Power Unit | 115V / 1 HP |
| Approx. Time Up | 11 seconds |
| Approx. Time Down | 15 seconds |
| Shipping Weight | 529 lbs |
Package Contents
Bishamon LX LoProfile Lift Table
User Manual
Warranty
This item comes with a manufacturer's warranty of 1 year parts and labor.
