Blue Demon Bluearc 200MSTI Inverter Welding Machine Multi-Process 200A LCD Screen 115/230V New
Manufacturer: Blue Demon
SKU: BLUEARC-200MSTI
QTY
or
(888) 999-1522
$ 979.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Blue Demon Bluearc 200MSTI Inverter Welding Machine Multi-Process 200A LCD Screen 115/230V New

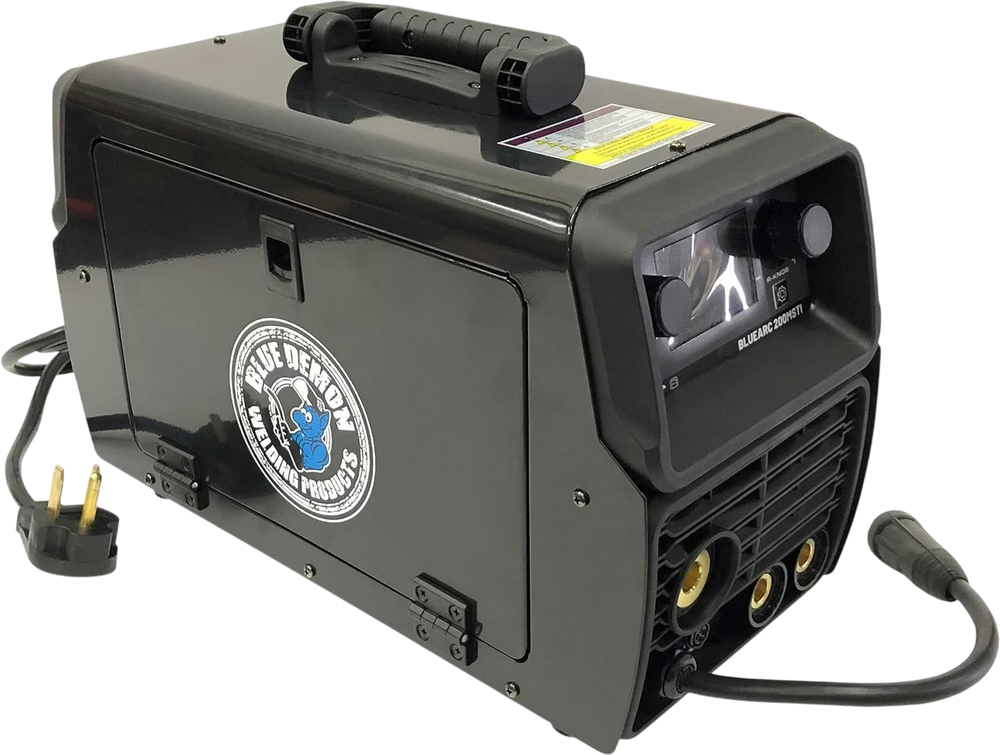

Product Overview
The Bluearc 200MSTI is a versatile 200 Amp inverter welding machine designed for multiple welding processes including GMAW, FCAW, GTAW, and SMAW capability. It features a clear 2 x 3 inch LCD screen with an intuitive interface for straightforward operation. The unit includes a MIG and TIG torches, with extra contact tips and replaceable consumables for easier maintenance. Its compact inverter design supports dependable performance in a portable format.
Brand new
1 year warranty
Manufacturer direct shipping from GA, NC, TX, and WI
Authorized Blue Demon dealer
Features
- Multiprocess GMAW-FCAW-GTAW-SMAW
- 2” x 3” LCD screen with user friendly interface
- Synergic settings
- Tweco® style back end connections and consumables
- IGBT inverter technology
- Electron reactor control
- Closed feedback circuit, invariable voltage output, and ability to balance voltage up to ±15%
- Welding voltage can be preset, and the voltage displays the preset voltage value when not welding.
- Both welding current and welding voltage can be viewed at the same time.
- Burn back time is adjustable.
- Slow wire feeding during arc start
- Small-size, light-weight (38lbs), easy to operate, and economical.
- Wire feeding part is separated from the welding machine, wide welding operation range
Specifications
| Processes | GMAW FCAW GTAW SMAW |
| Amperage | 200 A |
| Display Size | 2 x 3 in |
| Power Supply Voltage | Single-phase 220V |
| Input Current | 36 A |
| Power Supply Capacity | 8 kVA |
| Current Adjustment Range | 50 to 200 A |
| Output Voltage | 15 to 24 V |
| Rated Output Current | 200 A |
| Rated Output Voltage | 24 V |
| Rated Duty Cycle | 30% |
| Power Factor | 0.75 |
| Efficiency | 85% |
| Wire Feeder Type | External/Internal |
| Post-Flow Time | 1 s |
| Welding Wire Diameter | 0.6 /0.8 /1.0 mm |
| Plate Thickness | ≥0.8 mm |
| Insulation Class | F |
| Protection Class | IP21S |
| Weight | 37.5 lbs |
| Dimensions | 48.9 x 12.2 x 16.9 in |

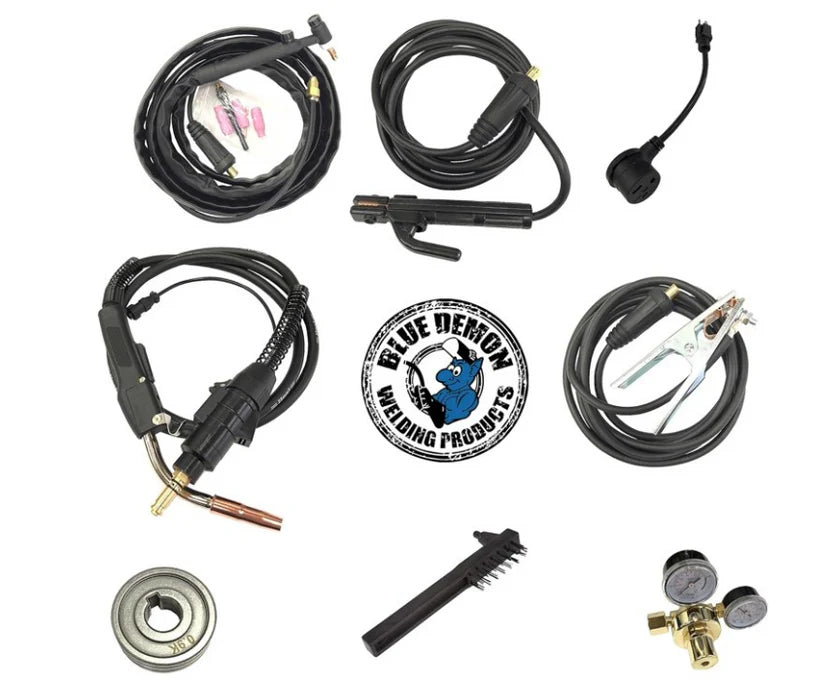

Package Contents
200MSTI Inverter Welding Machine
MIG Torch
TIG Torch
Electrode Holder/Stinger
Ground Clamp
Gas HOse
115V/230V Adapter
Consumables
User Manual
Warranty
This item comes with a 1 year limited warranty.
