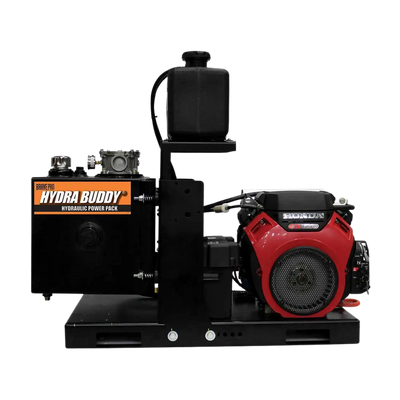

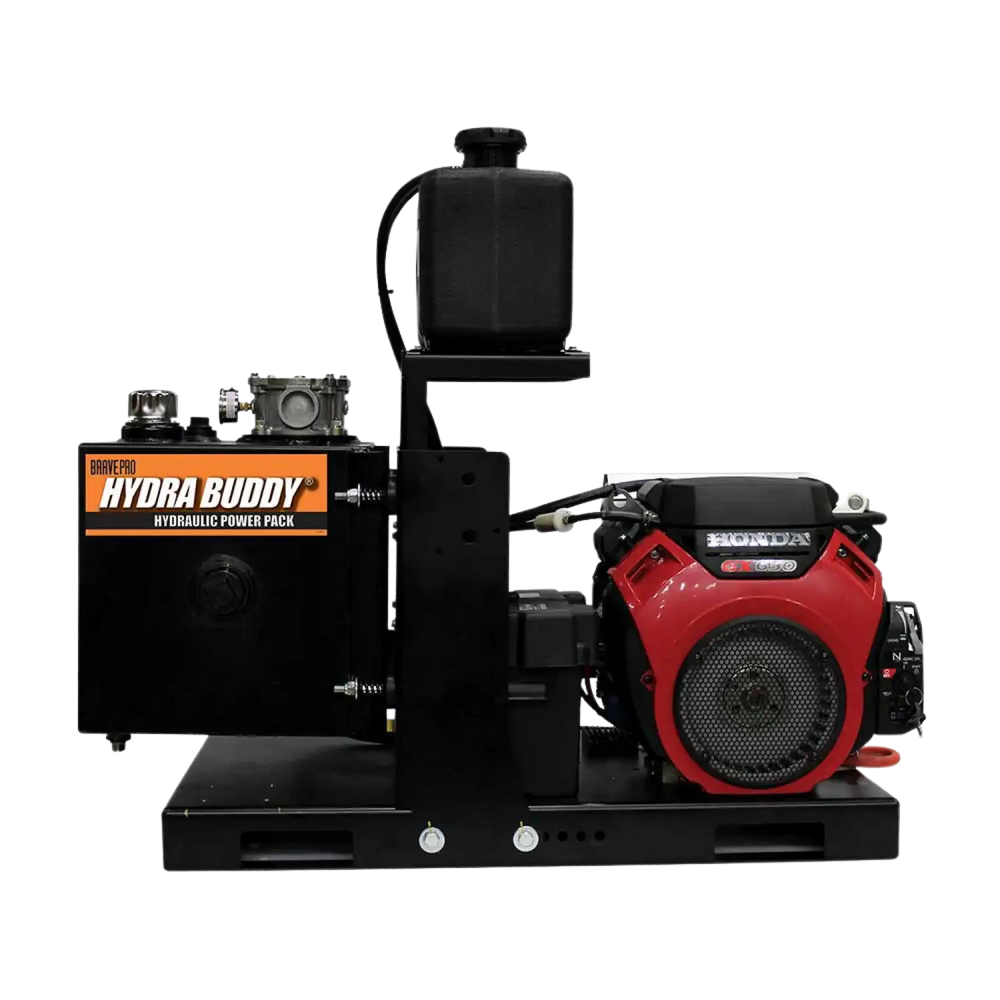

Brave Hydraulic Power Pack Hydra Buddy 2000 PSI 14 GPM with Honda GX630 Engine Skid Mount Electric Start HBHS620GXE New
Manufacturer: Brave
SKU: HBHS620GXE
QTY
or
(888) 999-1522
$ 6,758.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Brave Hydraulic Power Pack Hydra Buddy 2000 PSI 14 GPM with Honda GX630 Engine Skid Mount Electric Start HBHS620GXE New
Product Overview
The Brave skid mount hydraulic power pack mounts securely to your trailer or other applications making it ideal for job sites where no power or air is accessible. Compatible for use with single or double-acting cylinders. This unit can also be used with a forklift so it can reach where you need it to.
*Not for Sale in California*
Electric start
2 year limited factory warranty
Brand new from the manufacturer
Ships directly from Brave out of MN
Authorized Brave dealer
Features
- Power to run power conveyors, augers, lifts, hydraulic motors, and other implements
- Save money on fuel costs as well as hours and maintenance running your tractor
- Four-directional control valve lever (sold separately)
- Sight gauge for volume and temperature
- Filter indication gauge
- Skid mount securely mounts to your trailer or application
- Easily transportable using a forklift
- Not intended to be plumbed into a closed-center hydraulic system
Specifications
| Starter | Electric |
| Dimensions (L x W x H) | 48" x 24.5" x 43" |
| Product Weight | 368 lbs. |
| Manufacturer's Warranty | 2 years consumer use / 1 year commercial use |
| Equipment Type | Hydraulic Power Pack |
| Skid Mount | Yes |
| Engine Displacement | 688cc |
| Horsepower | 20.8 |
| Engine | GX630 |
| Engine Brand | Honda |
| Maximum PSI | 2,000 |
| Flow | 14 GPM |
| Maximum RPM | 3,600 |
| Hydraulic Tank Drain Port | 3/4 In. Npt |
| Hydraulic Tank Material | 12 Gauge Steel |
| Hydraulic Tank Capacity (Gallon) | 19.2 Nominal, 17.5 Actual, 13.5 Useable |
| Hydraulic Valve Inlet | 12 Orb Plumbed To Reservoir |
| Hydraulic Valve Outlet | 8 Male Jic Adapter Installed |
| Pump Displacement | 1.02 Cir |
| Pump Ports | Inlet: 1-1/16-12 Orb; Outlet: 7/8-14 Orb |
| Pump Rotation Direction | Clockwise |
Package Contents
Brave HBHS620GXE
User's Manual
Warranty
This item comes with a 2 years consumer use/ 1 year commercial use warranty.
