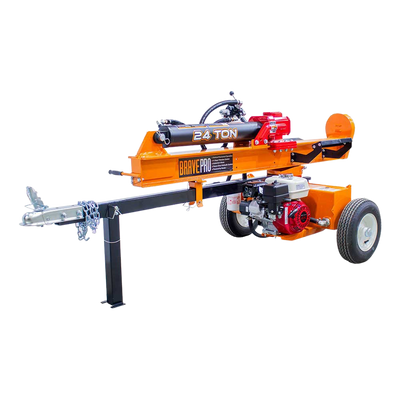

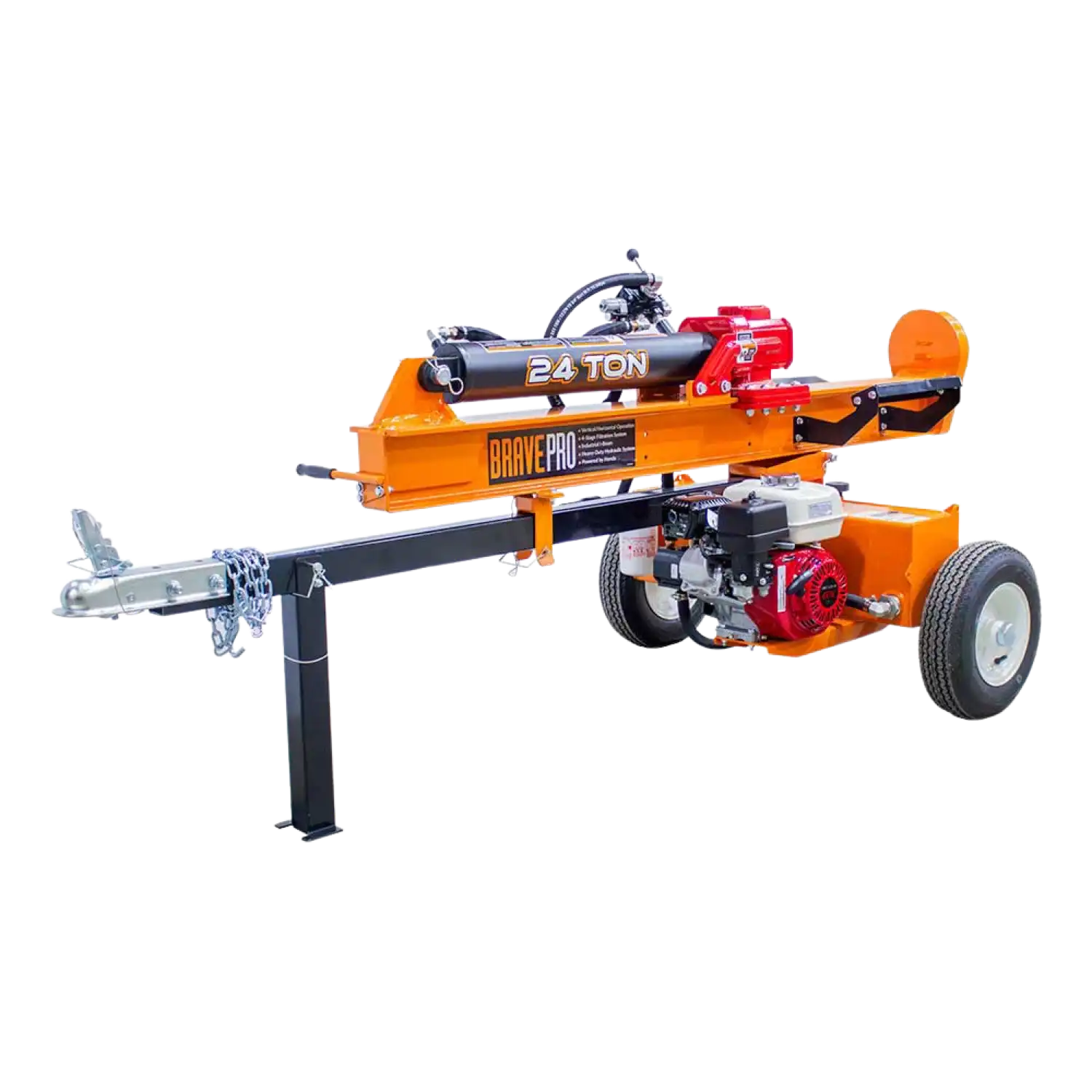

Brave Tow Behind Log Splitter 24-Ton Vertical/Horizontal Portable Gas with Honda GX160 Engine 160cc VH1724GX New
Manufacturer: Brave
SKU: VH1724GX
QTY
(888) 999-1522
$ 2,270.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Brave Tow Behind Log Splitter 24-Ton Vertical/Horizontal Portable Gas with Honda GX160 Engine 160cc VH1724GX New
Product Overview
This Brave 24-ton log splitter delivers ultimate splitting force, in a strong, well-balanced log splitter. Featuring a reliable Honda GX engine, you can easily split thick green logs with 24 tons of splitting pressure. This model offers commercial-grade features at a lower cost.
*Not for Sale in California*
2 year limited factory warranty
Brand new from the manufacturer
Ships directly from Brave out of MN
Authorized Brave dealer
Features
- Industrial I-beam construction provides incredible strength
- The 4-stage hydraulic filtration system prevents contamination and damage to the hydraulic system by removing metal and other microparticles; components include a suction strainer, breather cap air filter, return line filter, and magnetic drain plug
- Log cradles catch split logs and serve as a work table for large logs
- Heavy-duty log dislodger ejects logs that stick to the splitting wedge protecting the control valve and other hydraulic components from damage
- Convenient lift handle provides added control for quicker, easier, and safer transitions between the vertical and horizontal operating positions on 24-37 ton models
- Sherwin-Williams powder coat paint to withstand heavy use and weather elements
- Nylon hydraulic hose sleeve provides protection from abrasive wear that can damage the hose, accidental spraying from pinhole leaks, and sunlight which can break down the rubber
- Industrial cylinder with halite seals keeps constant and consistent pressure while splitting
- Tow-ready up to 45 MPH with 2-in. ball hitch, chains, and highway-rated tires
Specifications
| Log Diameter | 16 In. Max |
| Log Length | 25 in. Max |
| PSI | 3500 |
| Pump Type | 11 GPM 2-stage |
| Splitting Height | 28 In. |
| Towing Speed | 45 MPH |
| Wedge | 8 In. High Carbon Steel |
| Dry Weight | 500 lbs. |
| Equipment Type | Log Splitter (Tow-behind) |
| Operation | Horizontal And Vertical |
| Splitting Force (Tons) | 24 Tons |
| Cycle Time | 13 Seconds |
| Cylinder Size | 4 in. x 24 in. Clevis Type, 2-in. Rod |
| Engine Displacement | 160cc |
| Engine | GX160 |
| Engine Brand | Honda |
| Fenders | No |
| Fuel Capacity for Burner | .5 Gal |
| Hitch | 2 In. |
| Hydraulic Capacity | 8 Gal. |
| Log Cradle | Yes |
Package Contents
Brave VH1724GX
User's Manual
Warranty
This item comes with a 2 years consumer use/ 1 year commercial use warranty.
