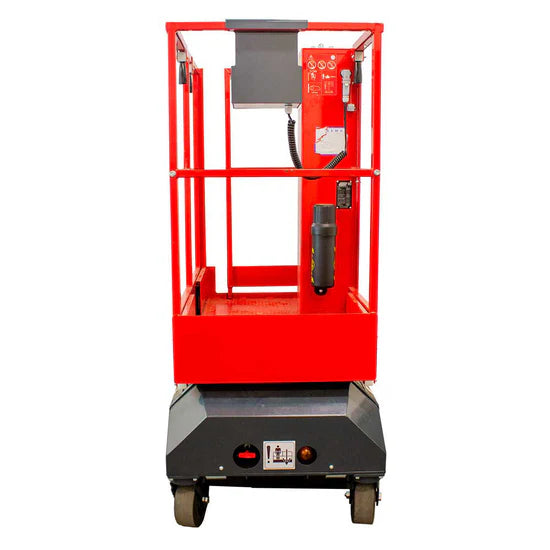

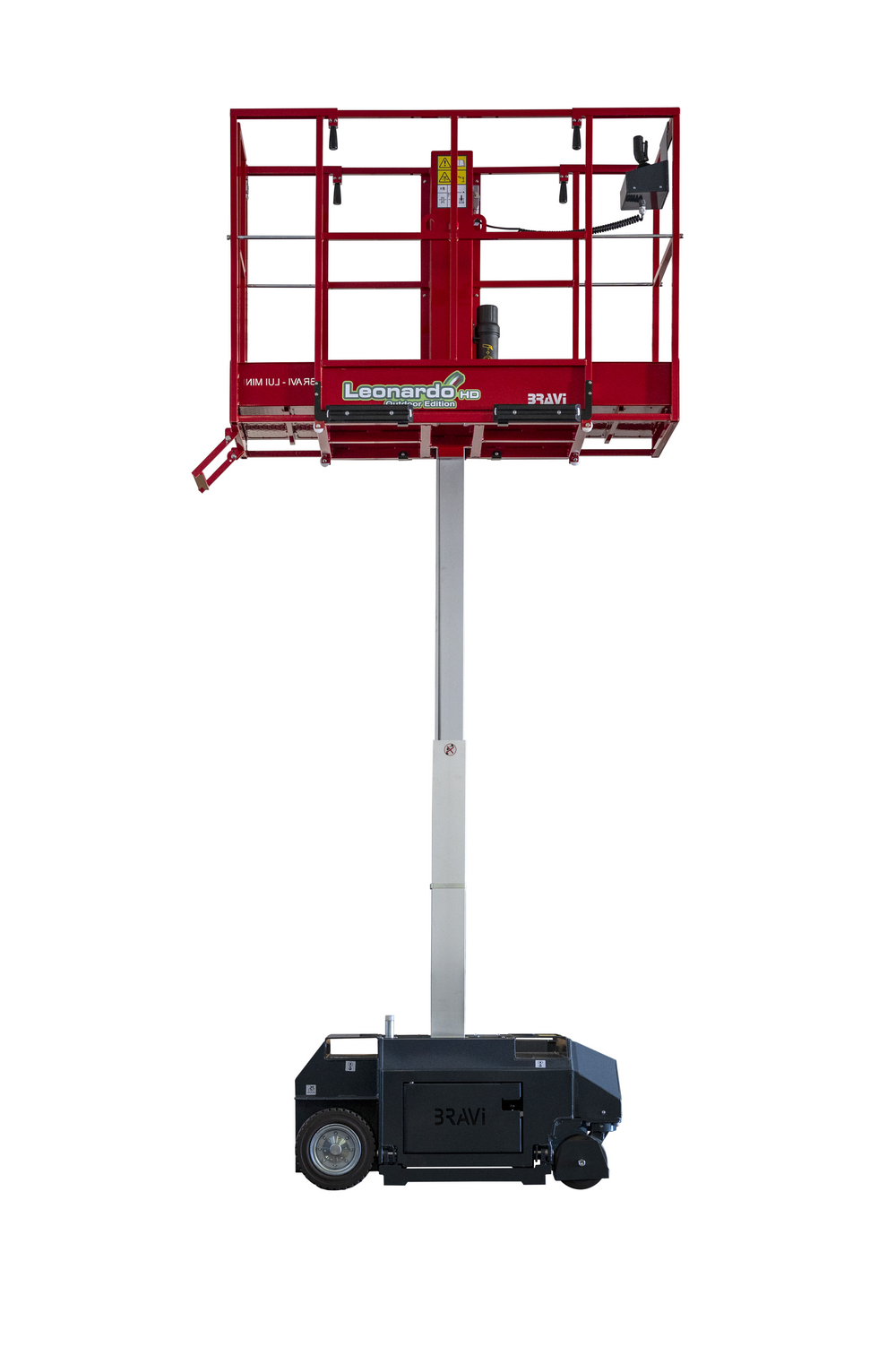

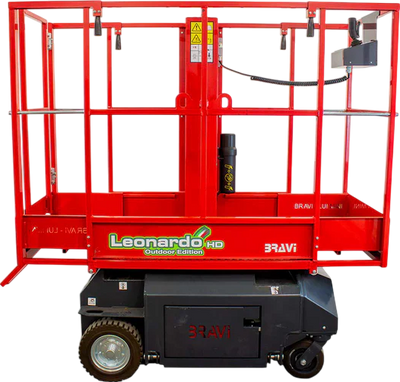

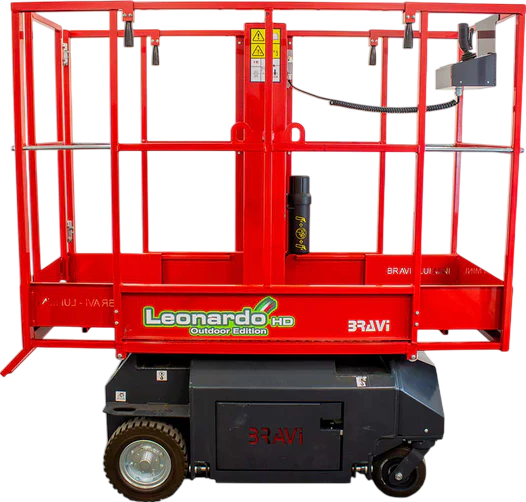

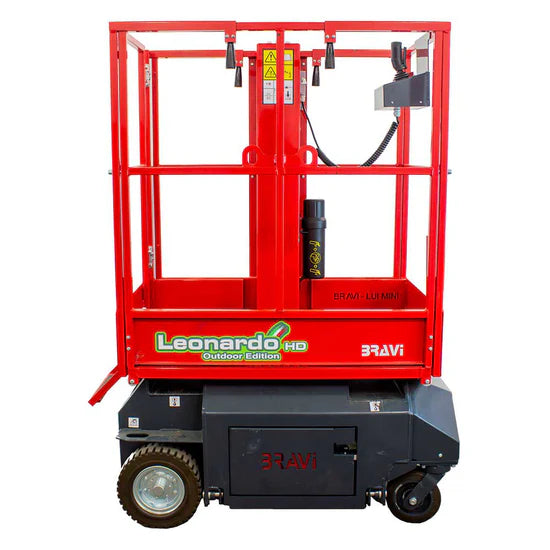

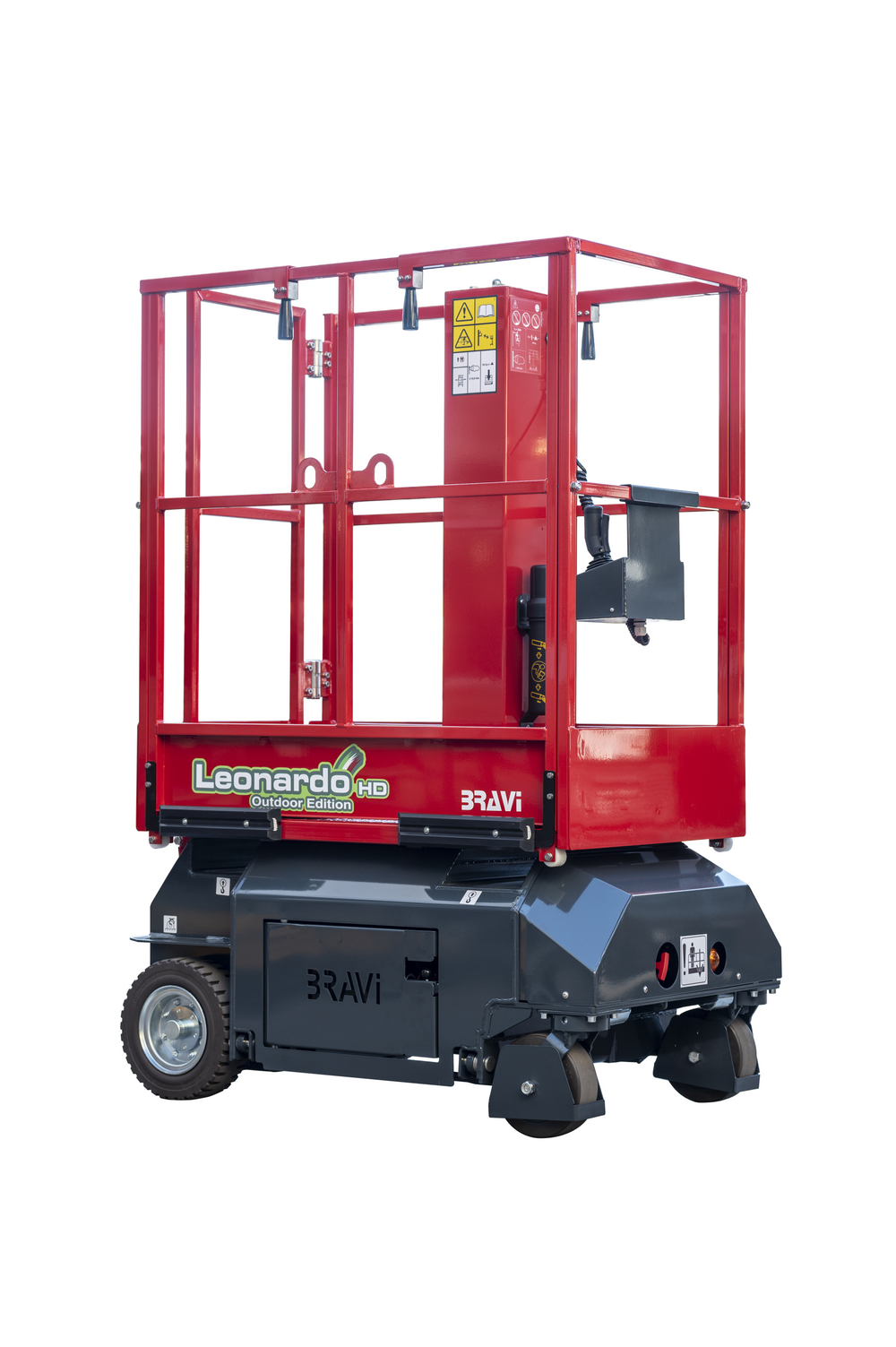

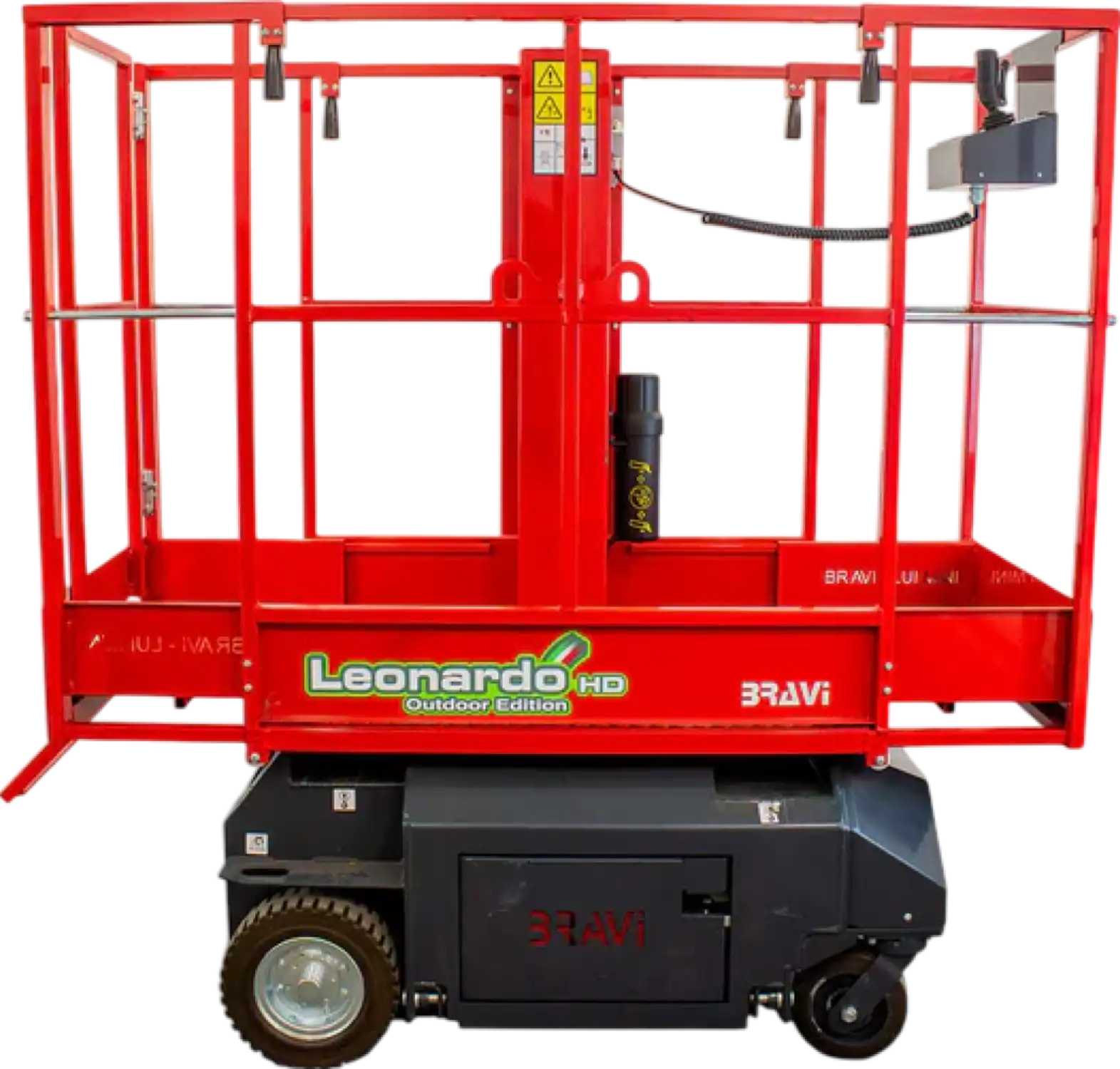

Bravi Platforms Leonardo HD Driveable Lift 16 Ft Work Height 500 Lbs Capacity New
Product Overview

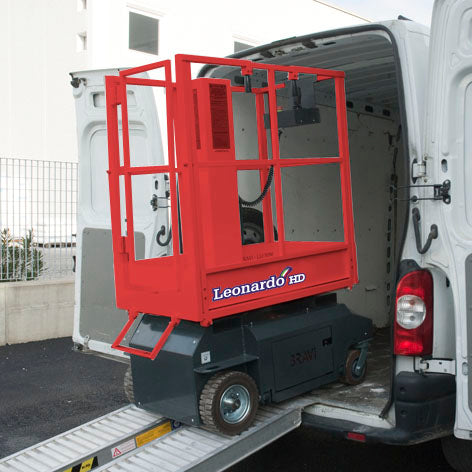

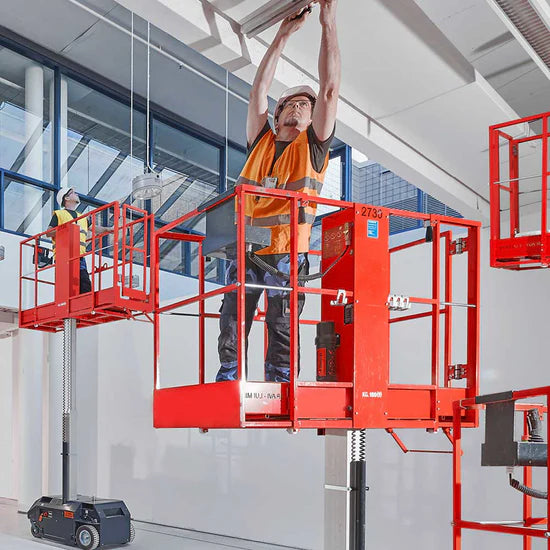

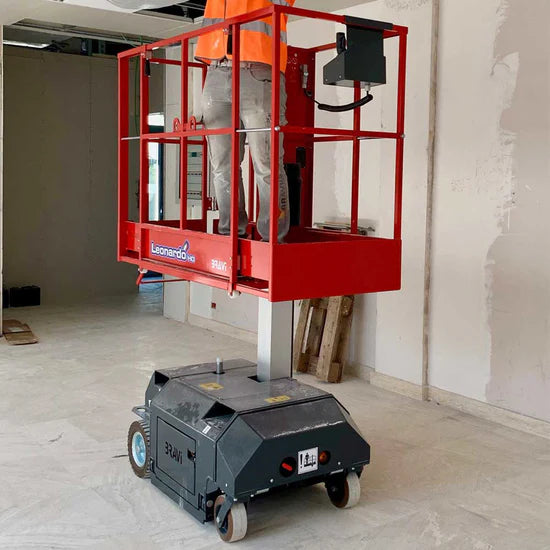

The Leonardo HD is the first mobile platform to arrive on site and the last to leave. With a working height of 16.4 feet (5 meters), the Leonardo can easily be driven through doorways and into tight spaces that would typically require the use of scaffolding or ladders. The compact size, and versatile maneuverability, and a weight of only 1,124 lbs. allows the Leonardo HD to fit into most elevators and reach top floors effortlessly without requiring the operator to leave the platform.
Brand new
3 year warranty
Manufacturer direct shipping from PA
Fast processing with free shipping
Authorized Bravi Platforms dealer
Features
- Easily drives through doorways, tight spaces, and passenger elevators
- Dual rollout decks provide outreach at both ends without sacrificing any platform capacity
- Wheel locking device allows you to drive forward and backward in a straight line when accessing narrow aisles or driving on ramps
- Wide drive and steer non-marking tires for reduced ground pressure and increased traction on tough jobs
- Driveable at full height, fully loaded and with the platform fully extended
- Unrestricted capacity of 397 lbs. reduces the need to climb up or down to load material
- Built-in sensor, flashing light, and audible alarms are all standard features
- Simple design and intuitive component-layout ensures a straightforward experience
Specifications
| Platform Height | 9' 6" |
| Working Height | 16' |
| Platform Length w/ Decks Ext. | 67" |
| Width | 30" |
| Base Length | 47" |
| Height Stowed | 68.7" |
| Platform Length | 40.7" |
| Platform Width | 24.8" |
| Entry Step | 15.7" |
| Ground Clearance | 3.6" |
| Platform Capacity w/ decks ext. | 500 lbs |
| Ascent/Descent Speed | 21 seconds |
| Drive Speed Stowed | 1.9 MPH |
| Drive Speed Elevated | 0.35 MPH |
| Batteries | 2 - 12V 85 Ah |
| Rated Number of Occupants | 1 |
| Unit Weight | 1234 lbs |
Package Contents
Bravi Platforms Leonardo HD
User Manual
Warranty
BRAVI warrants that the products supplied shall be free from defects in material and workmanship for a period of thirty-six (36) months from the date of delivery. The mast, cylinder, and wear pads come with a 10 year warranty, and 1 year warranty on the batteries.
