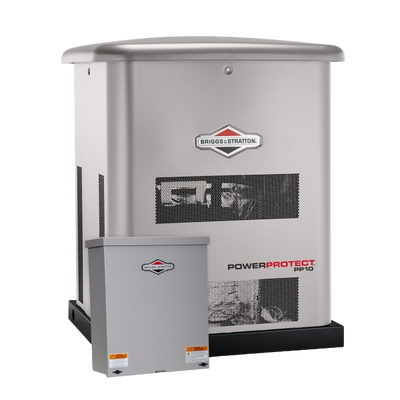

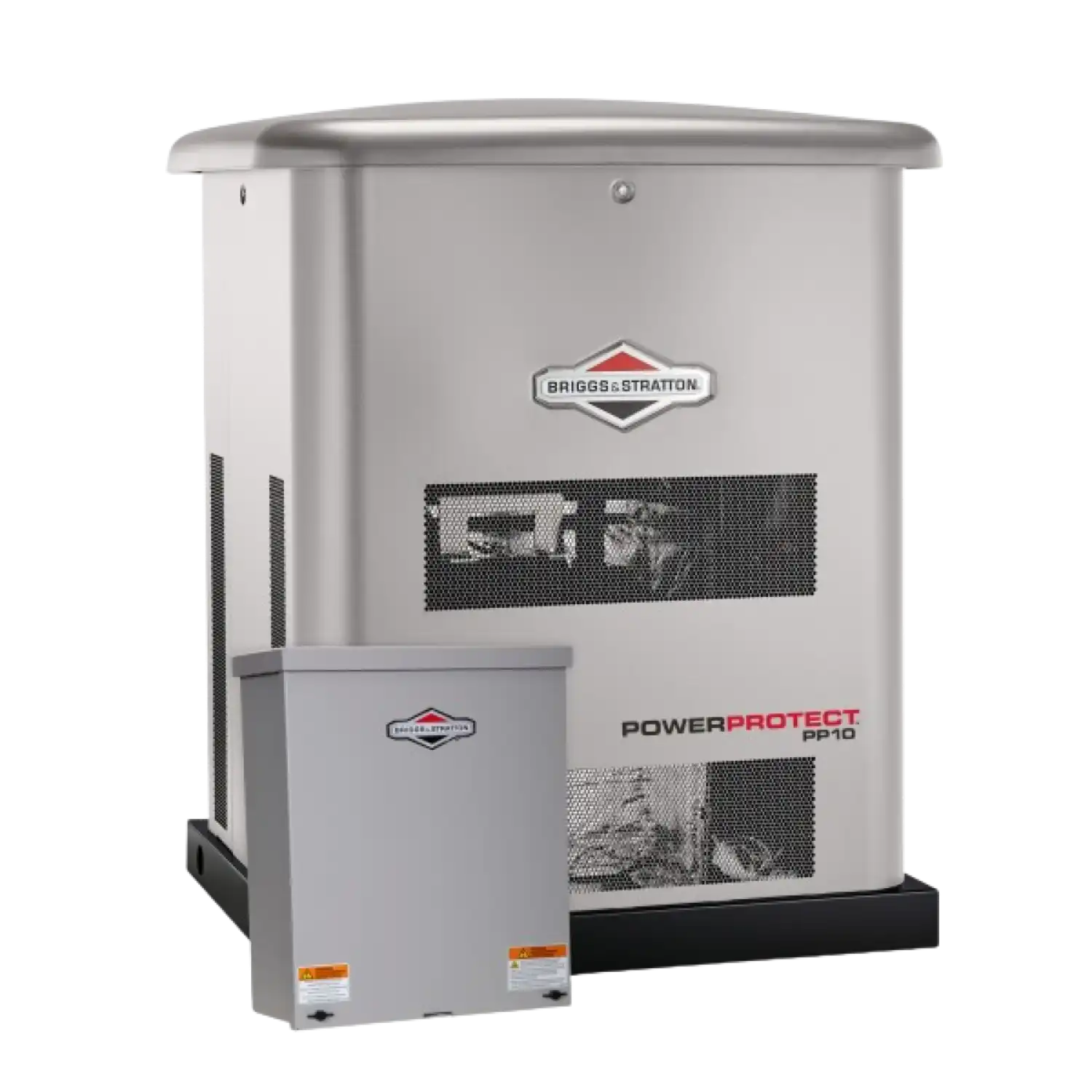

Briggs & Stratton 040685 10kW Standby Generator LP/NG w/ 100 Amp 16 Circuit Automatic Transfer Switch (Wifi) New
Product Overview
With nearly half the footprint size as competitors' like models, the 10kW PP10 standby generator offers more power in less space. its compact design, combined with its front-facing exhaust port, allow for easy placement outside your home and make installation a breeze. This bundle includes a 100-amp 16-circuit transfer switch (circuits not included).
6 year factory warranty
Brand new in box
Works with Liquid Propane and Natural Gas
Authorized Briggs and Stratton dealer
Features
- Footprint is 50% smaller than all other competitive generators, offering more installation options
- 6-Year limited warranty is the industry’s most comprehensive over time. (See manual for details)
- Vanguard® commercial-grade engine provides reliable power through the most demanding applications.
- Optimized for both NG and LP for reliable backup power to your home using either type of fuel
- Can be installed as close as 18" away from your home, giving you more installation options (See installation manual for details)
- Generator is designed, engineered and assembled in the U.S.A., with U.S. and Global parts
- Optional InfoHubâ„¢ remote monitoring offers 24/7 access to your generators status and custom alerts
- Schaeffer® Full Synthetic Generator Oil allows enhanced cold weather protection to -20 ̊F.
Specifications
| Battery | Not Included (540 CCA) |
|---|---|
| Enclosure | Steel |
| Circuit Breaker Size | 50 Amps |
| A/C Ton Rating | 2 x 3-Tons |
| Mounting Pad | Steel (Included) |
| Transfer Switch Style | Standard Installation |
| ATS Load Prioritizing | Sold Separately |
| ATS Load Shedding | Built-In |
| ATS Service Disconnect | No |
| Cooling System | Air Cooled |
| UL Listed | Yes |
| Grade Type | Emergency |
| Wi-Fi Remote Monitoring | Sold Separately |
| Prime Power | No |
| Engine Brand | Briggs and Stratton Vanguard |
| Starting System | 12v Auto Start |
| Consumer Engine Warranty | 6 Years |
| Engine RPM | 3600 RPM |
| Low Oil Alert/Shutdown | Yes |
| Product Category | Generator - Standby |
| Weight | 272 Pounds |
| Made in USA | Yes |
| Consumer Warranty | 6 Years |
| Product Style | Standby Generator |
| Product Length | 28 Inches |
| Product Width | 24.5 Inches |
|---|---|
| Product Height | 34.8 Inches |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 10000 Watts |
| Fuel Type | LP/Natural Gas |
| NG Power Capacity | 8000 Watts |
| LP Power Capacity | 10000 Watts |
| NG Fuel Consumption @ 50% Load | 111 ft³/hr |
| NG Fuel Consumption @ 100% Load | 169 ft³/hr |
| LP Fuel Consumption @ 50% Load | 1.2 gallons/hr |
| LP Fuel Consumption @ 100% Load | 1.9 gallons/hr |
| Rated Amps | 41.7 Amps |
| Decibel Rating @ 7m | 67 |
| Hour Meter | Yes |
| Transfer Switch | Automatic (Included) |
| Transfer Switch Amperage | 100-Amps |
| Max Circuits | 16 |
Package Contents
Briggs and Stratton Generator
100a 16 Circuit Automatic Transfer Switch w/Wifi
User Manual
Warranty
This item comes with a 6 year factory warranty.
