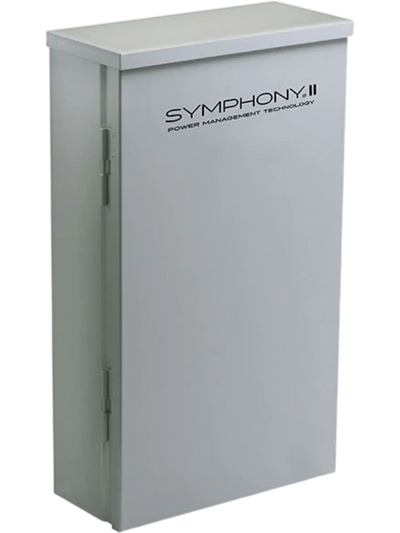

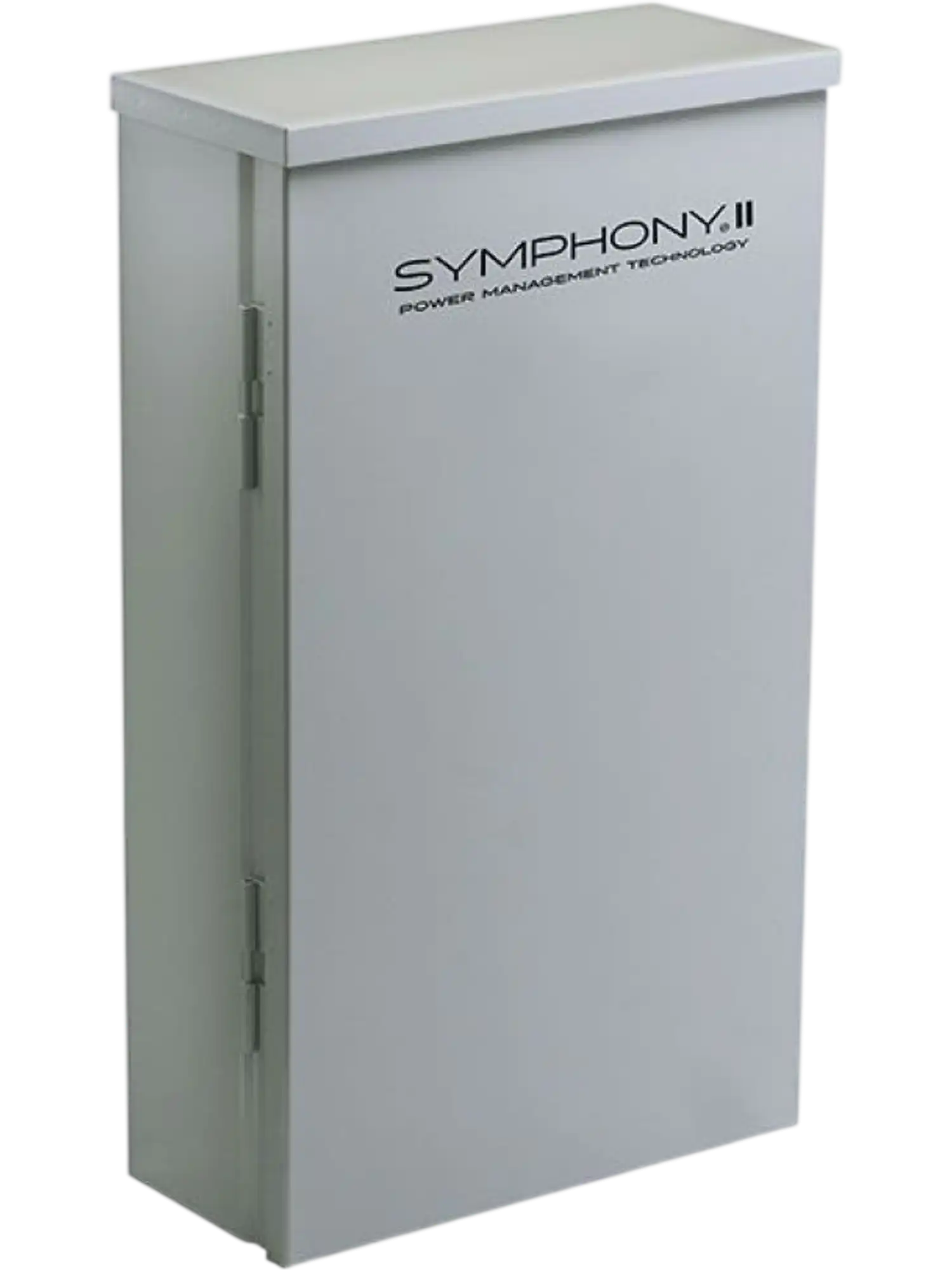

Briggs & Stratton 071057 Automatic Transfer Switch Dual 200A Split 400A Symphony II SED Power Management New
Product Overview
The industry exclusive Briggs & Stratton 71057 dual 200-amp/400-amp transfer switch matches the power of two 200-amp panels or one 400-amp switch. You benefit from less wiring and less installation time, to make the dual 200-amp/400-amp transfer switch the affordable solution.
The Briggs & Stratton 71057 Symphony II dual 200-amp/400-amp switch gives you whole-house power with a smaller, more affordable generator system.
6 year limited factory warranty
Brand new in box
Authorized Briggs & Stratton dealer
Features
- Service Entrance Rated with Disconnect for Dual 200Amp Home Services
- 120/240 Voltage, 2 Poles, 60 Frequency
- Nema 3R Indoor/Outdoor Enclosure, UL 1008 Listed
- Symphony II Power Management for up to 8 loads
Specifications
| Transfer Switch Style | Automatic Transfer Switch |
|---|---|
| Max Generator Continuous Watts | 25000 |
| Voltage | 120/240 |
| Transfer Switch Amps (Max Generator Input) | 400 |
| Transfer Switch Utility Breaker Amps | 2 x 200 |
| Transfer Switch Generator Breaker Amps | 200 |
| Phase | Single-Phase |
| Frequency | 60 Hz |
| Load Transition Type | Open Transition |
| Poles | 2 |
| Max Number Of Household Circuits | Whole House |
| Wired Whip | No |
| Service Entrance Disconnect | Yes |
| Power Management Method | Symphony II Power Management |
| Load Prioritizing (Transfer Switch) | Sold Separately |
|---|---|
| Load Shedding (Transfer Switch) | AC Shedding |
| Utility Voltage Drop-Out | < 70% |
| Utility Voltage Pickup | >80% |
| Weight (Lbs.) | 111 |
| Ship Weight (Lbs.) | 111 |
| Unit Dimensions | 37.0"L x 24.0"W x 7.0"H |
| Agency Compliance | UL 1008 (Transfer Switch) |
| NEMA Rating | NEMA 3R (Transfer Switch) |
Package Contents
Briggs & Stratton 071057 Dual 200A / Split 400A Automatic Transfer Switch
Warranty
This item comes with a 3 year warranty.
