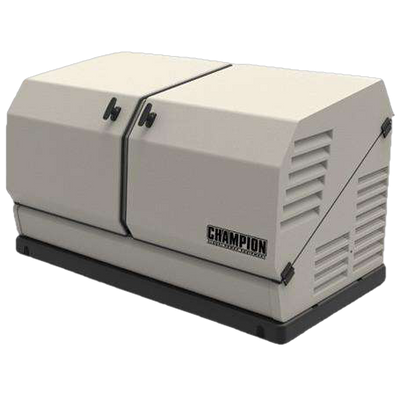

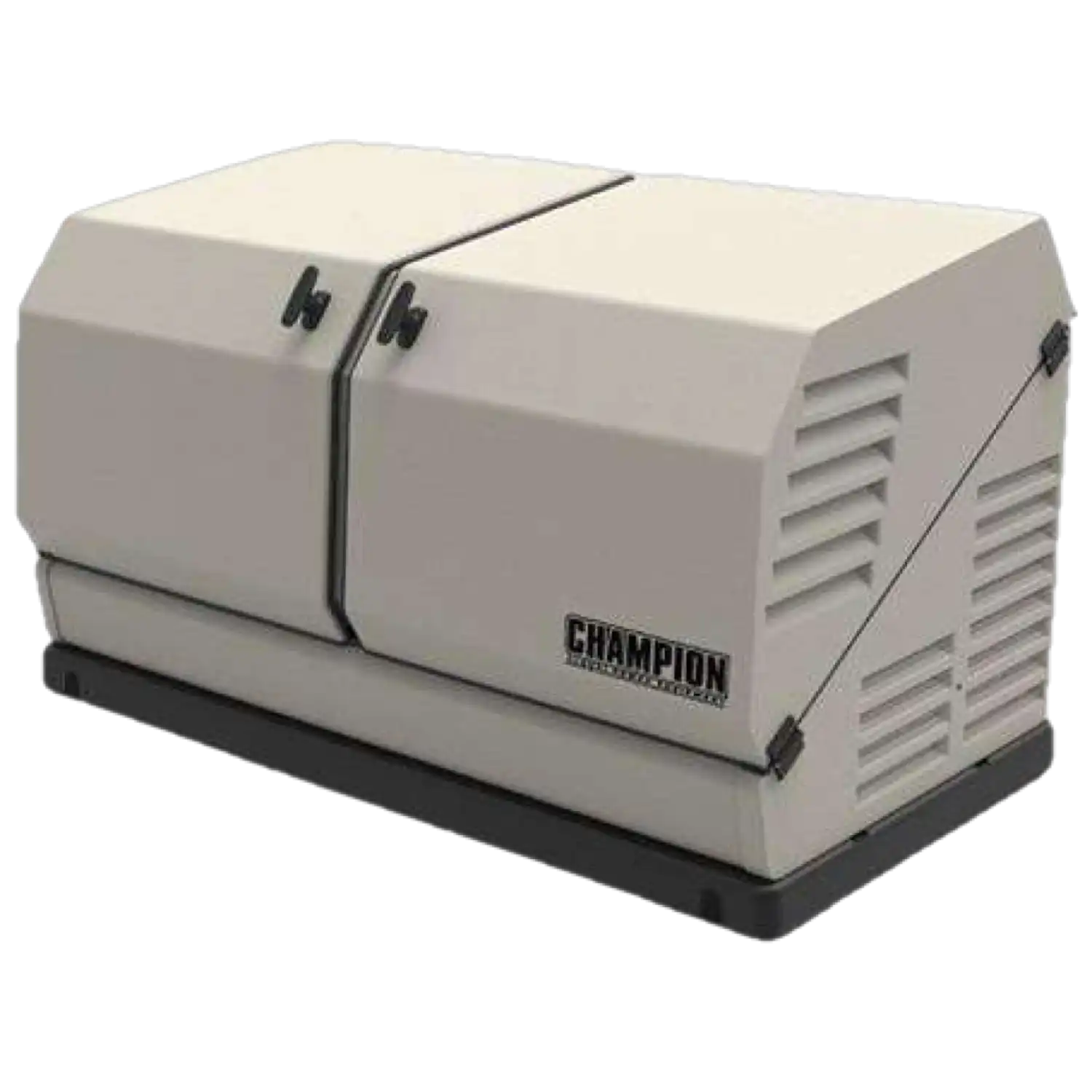

Champion 100174 Residential Standby Generator 8.5kW
Manufacturer: Champion
SKU: 100174
Share
Email
QTY
$ 2,299.00
Sign up for restock notifications!
Exceptional Customer Service
Manufacturer Direct
Product Overview
The Champion 100174 with 50-Amp NEMA 1 Indoor 8-Space Load-Center Automatic Transfer Switch supplies power to your home’s most essential circuits including refrigerators, freezers, sump pumps, lights, furnace, computers, security systems, and televisions. Even a window air conditioner or two. No shutting down to refuel in the dark. No extension cords to run. It runs automatically and supplies power within seconds after an outage occurs.
10 year manufacturer's warranty
Ships directly from Champion out of CA
Fast processing with free shipping
Authorized Champion dealer
Features
- Protection: Automatic 24/7 operation
- Fuel: LPG or natural gas for continuous operation
- Quiet operation: Designed for residential installations
- Convenience: Auto start in the event of utility power failure. Automatic weekly exercise and test function to insure the unit is always ready to perform

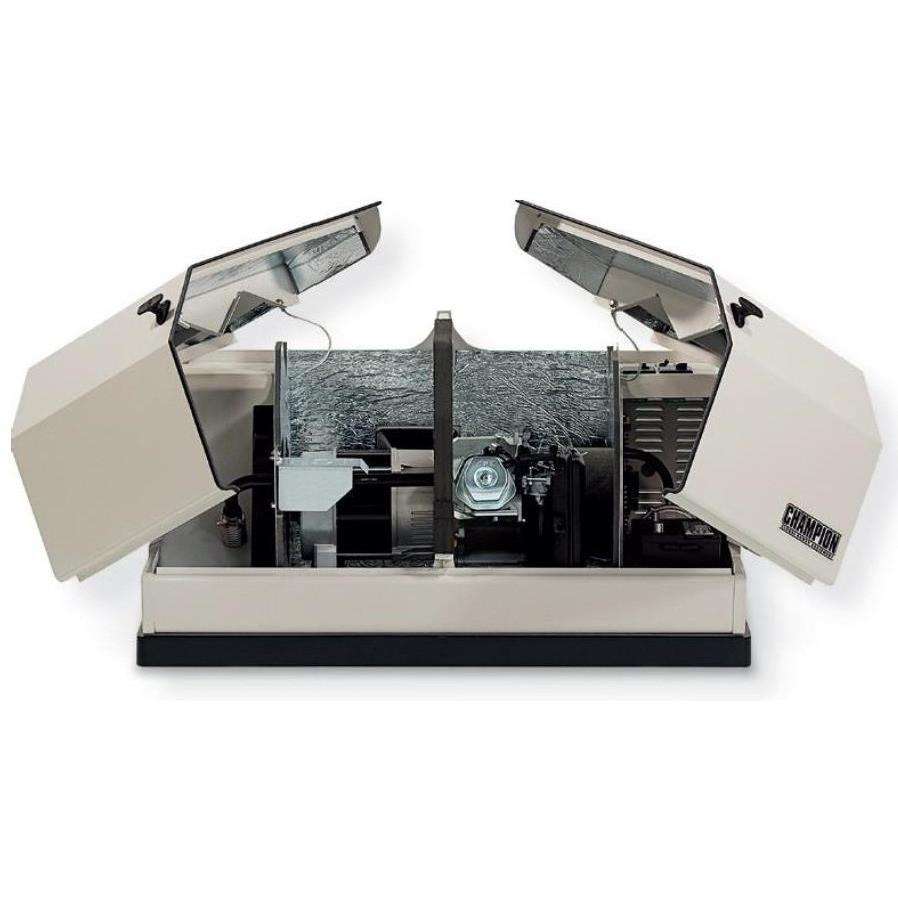

- Innovative: "Gullwing" enclosure permits easy installation and service
Specifications
| Model | 100174 |
| Manufacturer | Champion |
| Rated Watts | 8.5kw LP/7.5kw NG |
| Rated Amps | 35.4 LP/31.25 NG |
| Voltage | 120/240 Single Phase |
| Enclosure | Steel |
| UL Listed | Yes |
| Decibel Rating @ 7m | 59.5db |
| Starting System | Automatic |
| Low Oil Alert | Yes |
| Hour Meter | Yes |
| Battery Required? | Yes |
| Battery Type | 2x 12v U1 Group 350CCA |
| Mounting Pad | Composite Base |
| Weight | 365 lbs. |
| Dimensions (LxWxH) | 49 x 28 x 28 |
| Engine Brand | Champion |
| Engine Size | 436cc |
| RPM | 3600 |
| Cast Iron Sleeve | Yes |
| Cooling System | Air Cooled |
| Alternator | Brushed |
| Frequency | 60hz |
| NG Consumption @ Full Load | 135.76 cu.ft/hr |
| NG Consumption @ Half Load | 108.37 cu.ft/hr |
| LP Consumption @ Full Load | 58.67 cu.ft/hr |
| LP Consumption @ Half Load | 40.31 cu.ft/hr |

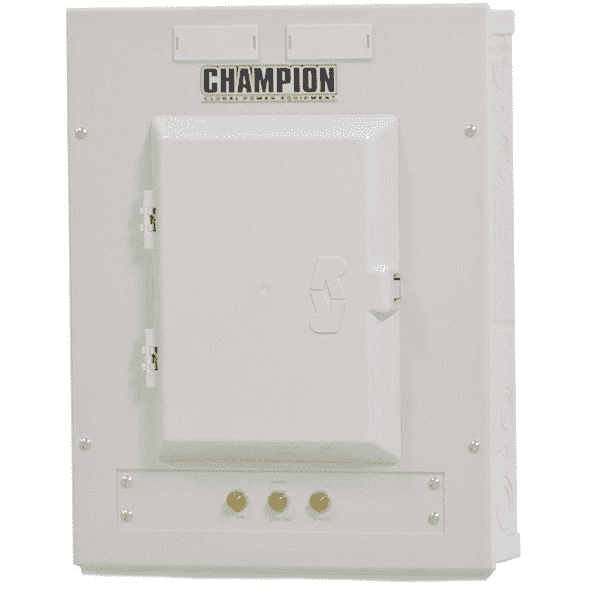

| Transfer Switch Model | 100947 |
| Switch Amps | 50a |
| Switch Circuits | 8 Space |
| ATS Poles | 2 |
Package Contents
8.5kw Standby Generator
Automatic 50 amp, 10 circuit transfer switch
All weather composite mounting pad
Warranty
This item comes with a 10 year manufacturer's warranty.
