Champion 100176 Home Standby Generator 12.5kW Nema 1 Transfer Switch
Manufacturer: Champion
SKU: 100176
Share
QTY
$ 3,299.00
Exceptional Customer Service
Manufacturer Direct
Champion 100176 Home Standby Generator 12.5kW Nema 1 Transfer Switch
Share
Product Overview

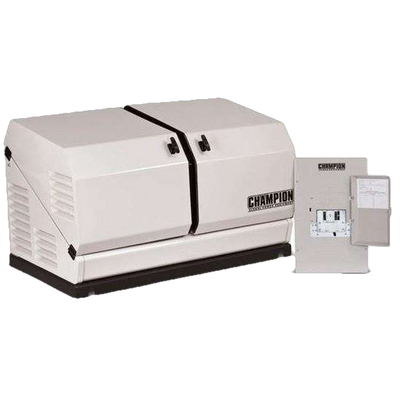

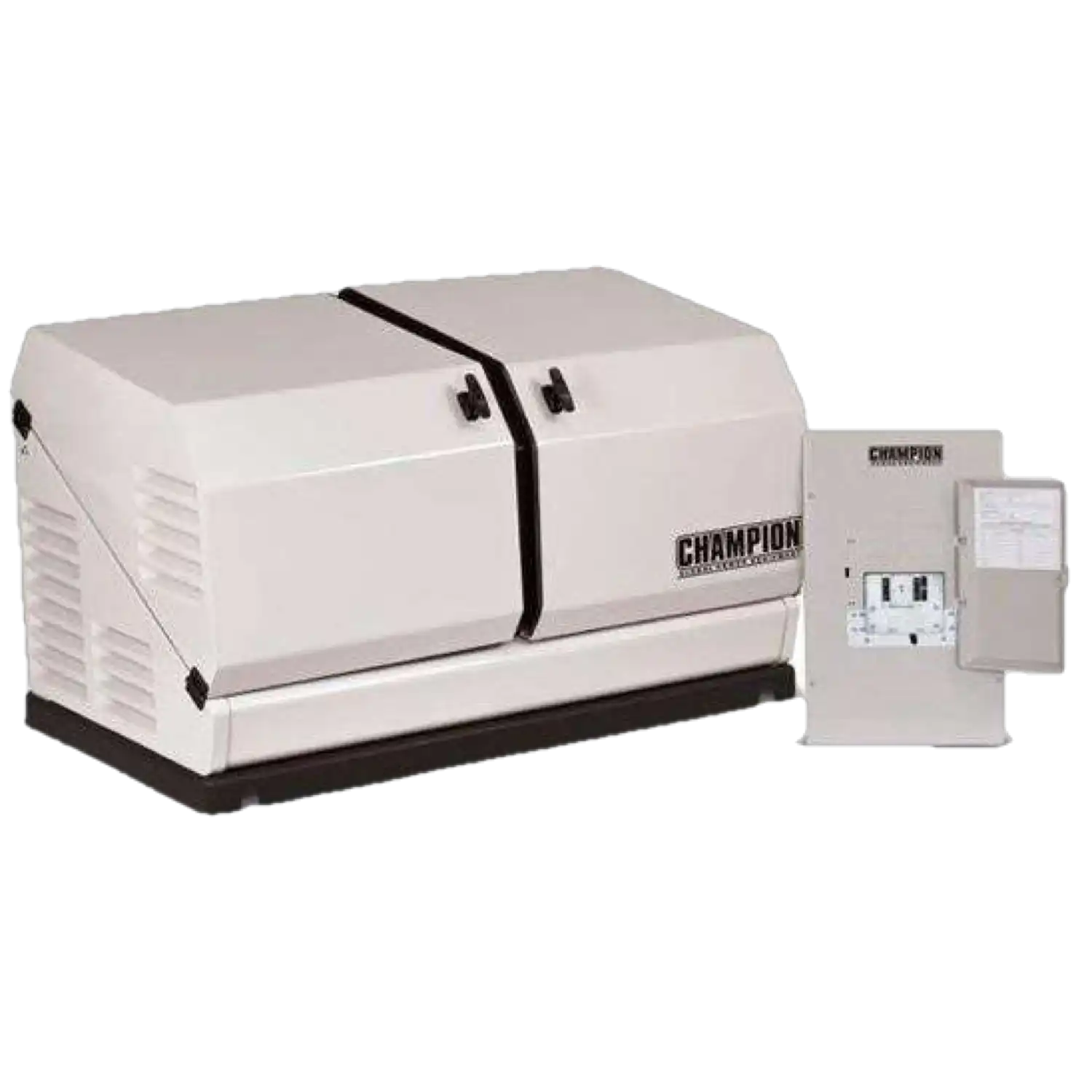

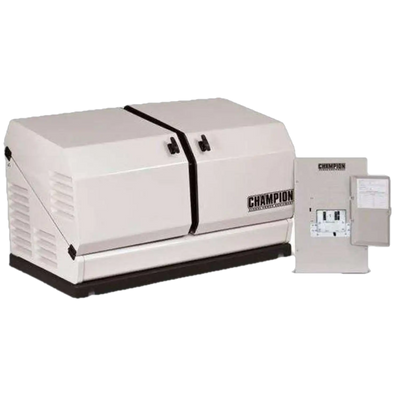

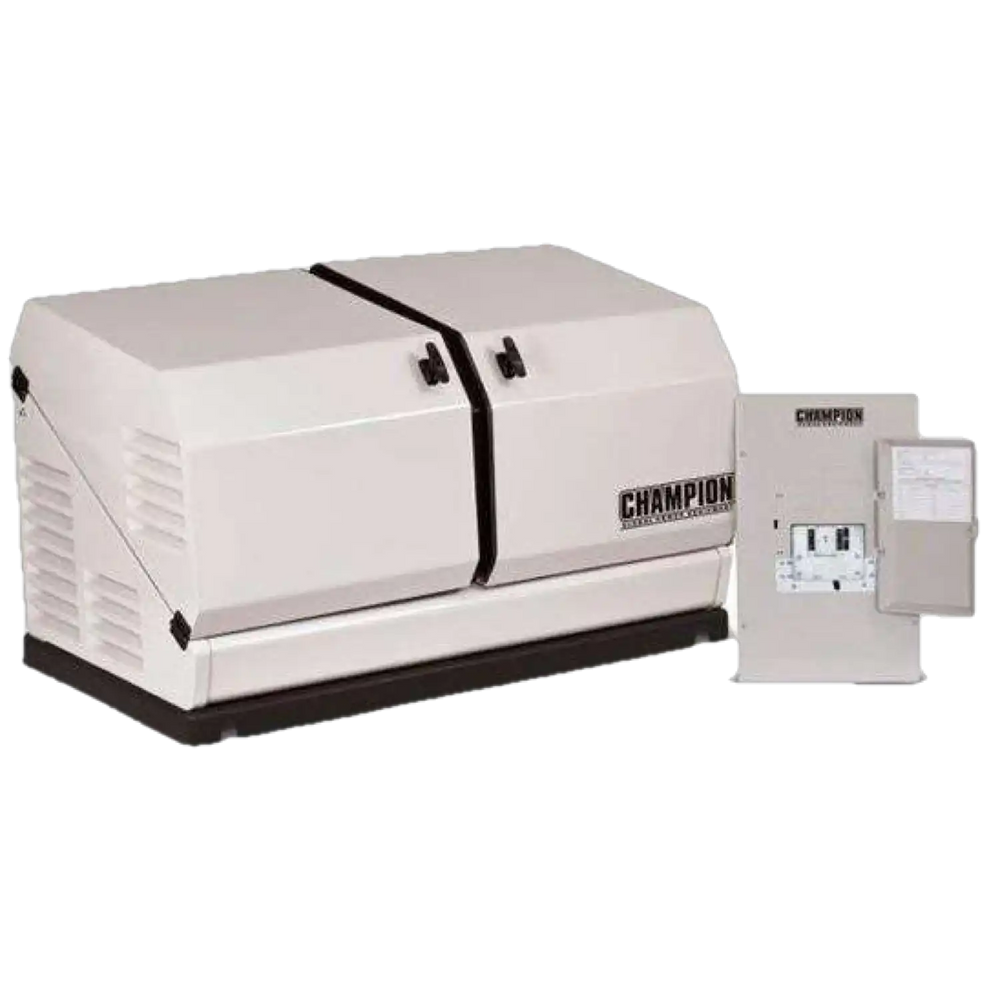

The 100176 Champion 12.5-kW Home Standby Generator with 100-Amp Indoor-Rated Automatic Transfer Switch supplies up to 12 of your home’s most essential circuits including refrigerators, freezers, sump pumps, lights, furnace and air conditioning, computers, security systems, televisions, and much more with backup power during an outage. Whether you live in a quiet suburban neighborhood, small town, or out in the country, you’ll appreciate the exceptionally quiet operation of your Champion Generator 12kW. At just 63dB(A), this generator runs quieter than most competing units.
10 year manufacturer's limited warranty
Ships directly from Champion out of CA
Fast processing with free shipping
Authorized Champion dealer
Features
- 12.5kW continuous electrical power
- 717cc Champion OHV engine, electric start and low oil pressure shut down
- Automatic 99 amp, 12 circuit indoor transfer switch
- Champion Auto Control Module (ACM)
- All weather composite mounting pad
- All weather steel enclosure
- Pressurized oiling system with spin on automotive type oil filter
- 10 year limited manufacturer warranty
- 24 volt starting system is the most powerful in the industry. Designed to assure starting at temperatures as low as -22° F
- Transfer switch Included - 99 amp Champion Automatic Transfer Switch, NEMA 1, Indoor Use (Model 100949)
- Natural gas (NG) or Propane (LPG) operation
Specifications
| Model | 100136 - 12.5kW Unit |
| Maximum Continuous Power LPG | 12.5 kW |
| Maximum Continuous Power NG | 11 kW |
| Rated Voltage | 120/240 |
| Amps | 104 LPG (91.6 NG) / 52 LPG (45.8 NG) |
| Harmonic Distortion | Less than 5% |
| Unit Circuit Breaker | 52 AMP |
| Phase | Single |
| Frequency | 60 Hz |
| Noise Level | 63 dBA |
| Operating Temperature | -22°F – 104°F |
| Unit Weight | 426 lbs |
| Size | 49 x 28 x 28 in. |
| UL Certified | UL2200 and CSA C22.2 No. 100 standards |
| Engine | |
| Type | Milwaukee Series™ OHV V-twin |
| No. of Cylinders | 2 |
| Displacement | 717cc |
| Cylinder Block | Aluminum with cast iron sleeves |
| Ignition System | Solid State – Magneto |
| Governor | Mechanical |
| Starter | 24 volt |
| Oil Capacity | 1.5 qt – 1.4 L |
Package Contents
12.5kw Standby Generator
NEMA 1 Transfer Switch
All weather composite mounting pad
Warranty
This item comes with a 10 year manufacturer's limited warranty.
