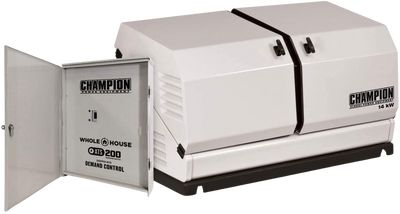

Champion 100294 14kW Standby Generator LP/NG w/ 200 Amp Automatic Transfer Switch New
Manufacturer: Champion
SKU: 100294
Share
QTY
$ 4,047.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Manufacturer Direct
Champion 100294 14kW Standby Generator LP/NG w/ 200 Amp Automatic Transfer Switch New
Share
Product Overview
The Champion 14kW Generator delivers 14,000 watts of clean, reliable power to your home with less than 5% total harmonic distortion and frequency regulated to 60 hertz by the engine governor. Voltage regulation maintains output to power sensitive electronics, motors, and other loads. No shutting down to refuel in the dark. No extension cords to run. It runs automatically and supplies power within seconds after an outage occurs.
10 year manufacturer's limited warranty
Ships directly from Champion out of CA
Fast processing with free shipping
Authorized Champion dealer
Features

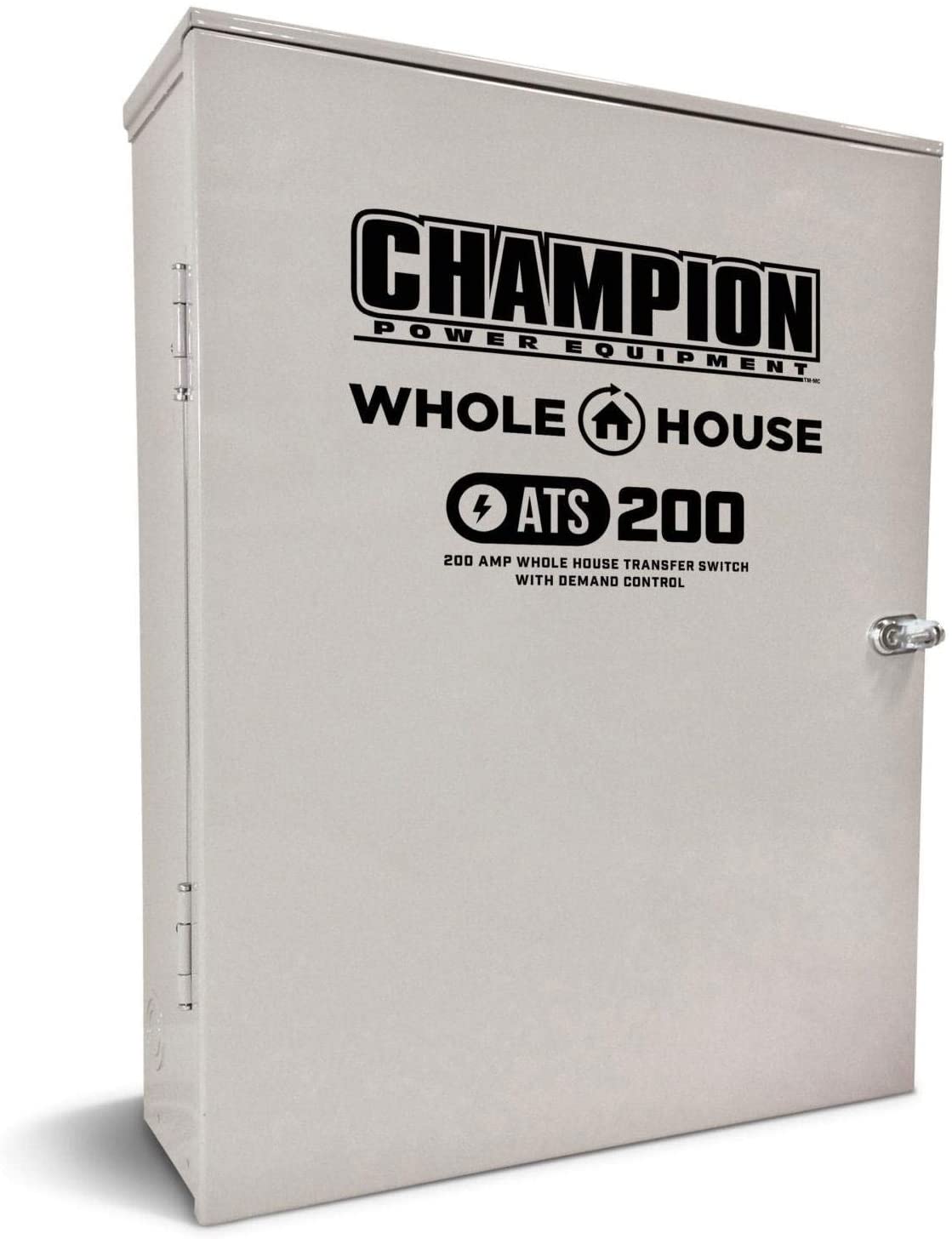

- The ATS200 Whole House Transfer Switch with Demand Control provides seamless, managed power to your entire home during an outage
- Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 63 dBA noise level
- 24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no warming kit necessary, plus the generator performs weekly self-diagnostic tests
- The 14-kilowatt generator provides 14,000 watts of continuous power on propane and 12,500 watts on natural gas, with no refueling, no manual operation and no extension cords needed
- Includes 10-year limited warranty with FREE lifetime technical support from dedicated experts
- Composite Mounting Pad
- All-Weather Steel Enclosure
Specifications
| Propane Rated Watts | 14000W |
| Natural Gas Rated Watts | 12500W |
| Propane Rated Amps at 120V | 116.7A |
| Propane Rated Amps at 240V | 58.3A |
| Natural Gas Rated Amps at 120V | 104.2A |
| Natural Gas Rated Amps at 240V | 52.1A |
| Rated Volts | 120/240 |
| Rated Frequency | 60Hz |
| Phase | Single |
| Propane Fuel Consumption at 1/2 Load | 1.6 gal/h |
| Propane Fuel Consumption at Full load | 2.6 gal/h |
| Natural Gas Fuel Consumption at 1/2 Load | 116.5 ft3/h |
| Natural Gas Fuel Consumption at Full Load | 180.1 ft3/h |
| Main Line Circuit Breaker | 65.0A |
| Starting System Automatic | 24V |
| Operational Volume | 63.5 dBA |
| Cooling System | Air Cooled |
| AC Ton Rating | 5T |
| Generator Enclosure | Steel |
| Generator Mounting Pad | Composite |
| Engine Brand | Champion |
| Engine Size | 754cc |
| Engine Type | 4-stroke V-Twin |
| Engine Speed | 3600 |
| Fuel Type | Propane (LPG), Natural Gas (NG) |
| Engine Oil Type | 5W-30 Full Synthetic |
| Engine Oil Capacity | 1.5 qt. |
| Low Oil Shut-Off | Yes |
| UL Listing | cULus |
| EPA Certified | Yes |
| Switch Amps | 200A |
| Switch Volts | 120/240 |
| Switch Type | Whole House |
| Switch Circuits | Whole Service |
| Switch Poles | 2 |
| Load Management | Yes |
| Service Entry Rated | Yes |
| Switch Enclosure | NEMA 3R |
| Dimensions (LxWxH) | 50.0" x 30.1" x 40.2" |
| Weight | 493.9 lb. |
Package Contents
Generator
200 Amp Automatic Transfer Switch
Oil Drain Pan
Flexible Fuel Line
HSB Enclosure Keys
Battery Cables & Hardware
LPG Jets
Jet Change Tool
Warranty
This item comes with a 10 year manufacturer's limited warranty.
