Champion 100425 34 Ton 338cc Horizontal/Vertical Log Splitter Manufacturer RFB
Product Overview
Champion’s towable 34-ton log splitter with its massive 338cc engine easily powers through tough logs. The fast 16-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.
Manufacturer refurbished units are guaranteed have less than 20 hours of use, and most have less than 3 hours. They are clean condition with occasional paint fading/scratching, but most look brand new. Units have minor issues that are fixed to the same strict standards of new units. Each unit is fully tested on load bank for performance. Life expectancy of this model with reasonable care is 3000-5000 hours. Guaranteed to work like new, free DOA replacement.
100% certified refurbished by the manufacturer
Guaranteed to work like new or your money back
Under 20 hours of use, most are under 10
90 day warranty with extended warranty available
Fast processing with free shipping
Authorized Champion dealer
Features
- Powerful - 34 tons of splitting capacity with a large 338cc Champion single-cylinder OHV engine

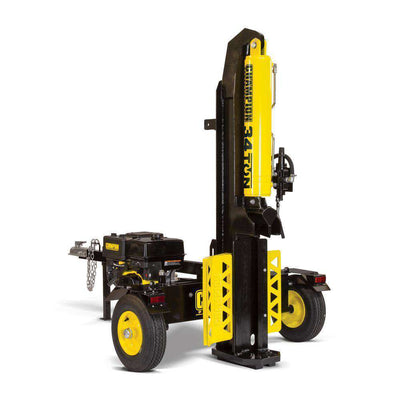

- Versatile - converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
- Efficient - 16-second cycle time expanded operator area and dependable auto-return valve capable of over 200 cycles per hour

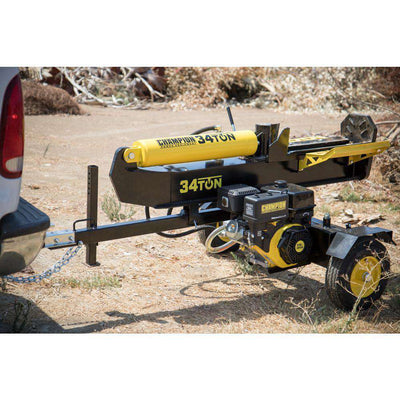

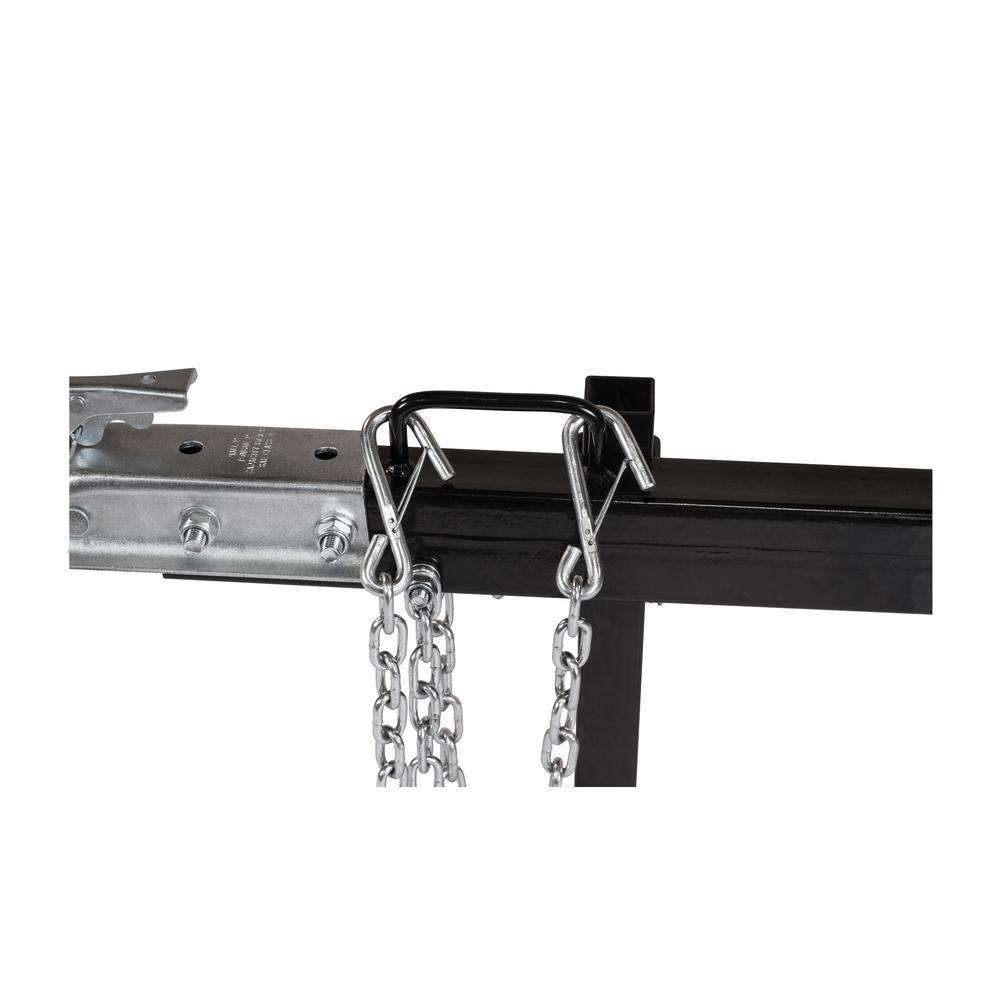

- Portable - Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires
- Reliable - Champion Support includes FREE lifetime technical support from dedicated experts
Specifications
| ENGINE SIZE | 338CC |
| ENGINE TYPE | 4-STROKE |
| GASOLINE CAPACITY | 1.5 GAL |
| ENGINE OIL TYPE | 10W-30 |
| ENGINE OIL CAPACITY | 1.2QT |
| ENGINE OIL INCLUDED | YES |
| LOW OIL SHUT-OFF | YES |
| WHEELS | YES |
| WHEEL TYPE | PNEUMATIC |
| WHEEL DIAMETER | 16.0 IN |
| TOWABLE | YES |
| HITCH TYPE | 2 IN. BALL HITCH |
| FEDNDER | YES |
| MAX TOW SPEED | 45 MPH |
| EPE CERTIFIED | YES |
| CARB COMPLIANT | YES |
| RAM FORCE | 34T |
| OPERATING POSITION | HORIZONTAL, VERTICLE |
| CYCLE TIME | 16 SEC |
| MAX LOG LENGTH | 24 IN |
| MAX LOG WEIGHT | 100LB |
| LOG CRADLES | YES |
| LOG CATCHER | YES |
| AUTO RETURN | YES |
| WEDGE TYPE | SINGLE |
| WEDGE MATERIAL | HARDENED STEEL |
| CYLINDER DIAMETER | 5.0 IN |
| CYLINDER ROD SIZE | 1.8 IN |
| HYDRALIC PUMP | 2-STAGE |
| HYDRALIC FLOW RATE | 13.0 GAL/MIN |
| HYDRAULIC OIL SYSTEM CAPACITY | 6.0 GAL |
| HYDRAULIC OIL TYPE | AW-32, UNIVERSAL HYDRAULIC OIL, AUTOMATIC TRANSMISSION FLUID |
| HYDRAULIC FILTER | INTERNAL/EXTERNAL |
| HYDRAULIC OIL INCLUDED | YES |
| POWER TYPE | GASOLINE |
| START TYPE | RECOIL |
| ENGINE BRAND | CHAMPION |
Package Contents
LOG CATCHERS
HYDRALIC OIL
Warranty
This item comes with a 90 day refurbished product warranty.
