Champion 100427 Electric Winch Kit with Speed Mount 12,000-lb. Synthetic Rope New
Product Overview
The Champion Power Equipment 100427 Truck/SUV Synthetic Rope Winch Kit is designed for powerful and reliable winching with your truck or SUV. With a rated line pull of 12,000 pounds, this winch installs quickly with the Speed Mount 2-inch hitch adapter. The winch features a gear reduction ratio of 216:1, boasting a line speed of 2.3 feet per minute with a full load. Designed with a stainless steel thimble and protective sleeve, the 85-ft by 11/32-in synthetic winch rope has a minimum break strength of 15,000 lbs. and is guided onto the drum through the fairlead.
Brand new in box
2 year factory warranty
Fast shipping from NY or CA
Manufacturer direct
Authorized Champion dealer
Features
- Powerful 12,000-lb. rated line pull powered by a 6-horsepower 12V DC series wound motor.
- Efficient line speed of 2.3 feet per minute with a full load, and 15.7 feet per minute with no load.
- Convenient Speed Mount 2-inch hitch adapter, included hand-held quick-connect remote control and free-spooling clutch create an easier than ever winching experience.
- The hawse fairlead creates a smooth pull with the safe, strong, and flexible synthetic rope, which is lightweight, splinter-free, won't kink, has less recoil than steel, and floats.
- Convenient handles are 3-position adjustable, plus they serve as side guards to protect the winch.
Specifications
| Winch Type | Truck and SUV |
| Line Pull | 12,000 lbs. |
| Remote Length | 12 ft. |
| Gear Ratio | 216:1 |
| Gear System | Three-Stage Planetary |
| Full Load Line Speed | 2.3 ft/min |
| No-Load Line Speed | 15.7 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Synthetic Rope |
| Rope Length | 85 ft. |
| Rope Diameter | 11/32 in. |
| Fairlead Type | Hawse |
| Drum Size | 2.5 x 8.8 in. |
| Bolt Pattern | 10 x 4.5 in. |
| Mounting Channel | Speed Mount |
| Hitch Adapter Size | 2 in. |
| Motor Type | 12V DC (Series Wound) |
| Horsepower | 6 HP |
| Max Current at Full Load | 480A |
| Duty Cycle | Intermittent |
| Dimensions | 22.3" x 5.9" x 10.1" |
| Weight | 95.9 lbs. |

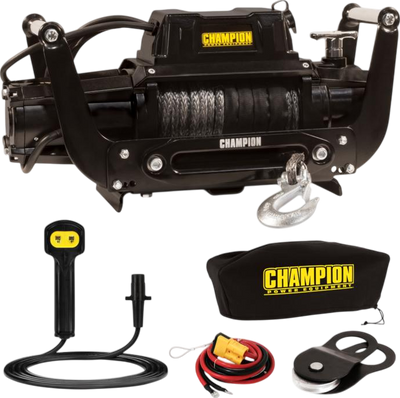

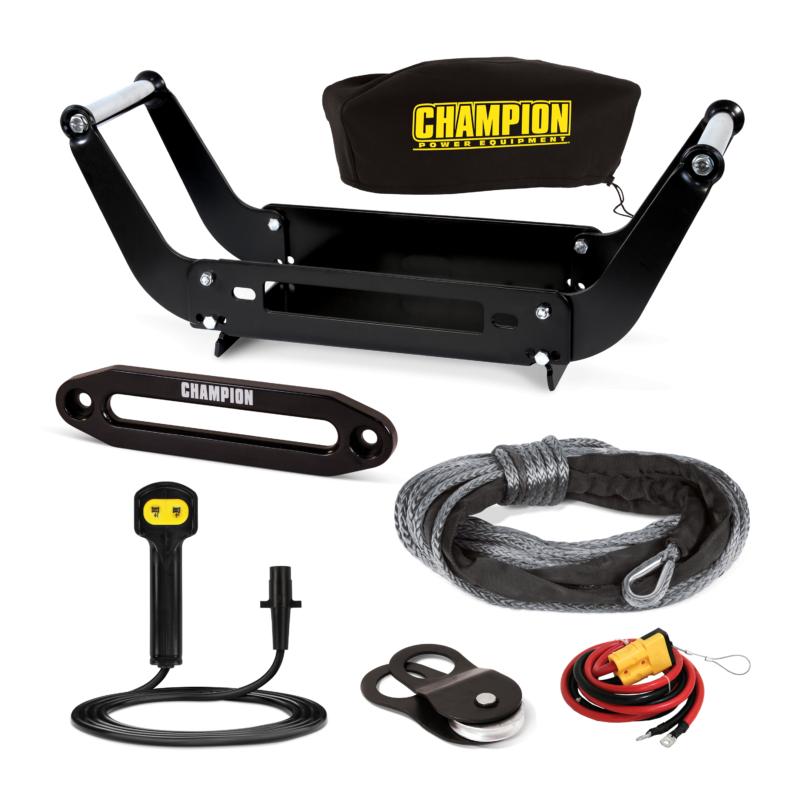

Package Contents
12,000-lb. Winch Kit
Clevis Hook
Hook Strap
Speed Mount Hitch Adapter
Hawse Fairlead
Remote Control
Snatch Block
Battery Leads
Winch Cover
Manual
Warranty
This product comes with a 2 year limited factory warranty.
