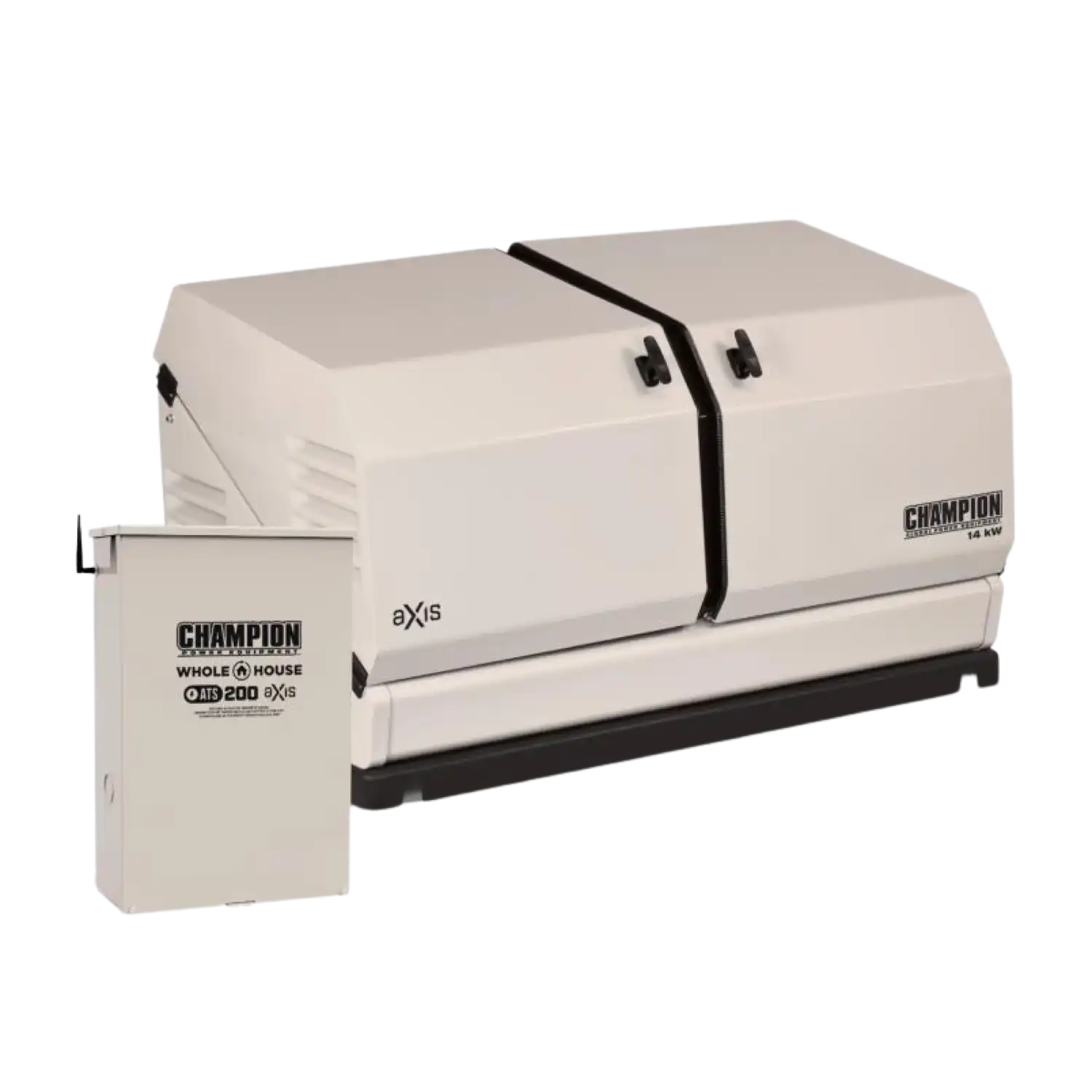

Champion 100837 14kW Home Standby Generator with 200 Amp Transfer Switch New
Manufacturer: Champion
SKU: 100837
QTY
(888) 999-1522
$ 4,659.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Champion 100837 14kW Home Standby Generator with 200 Amp Transfer Switch New
Product Overview
Champion’s 14-kW aXis Home Standby Generator System includes a 200-Amp aXis automatic transfer switch. This fully automatic system manages your home’s loads while providing quietest-in-class sound.
10 year manufacturer's limited warranty
Ships directly from Champion out of CA
Fast processing with free shipping
Authorized Champion dealer

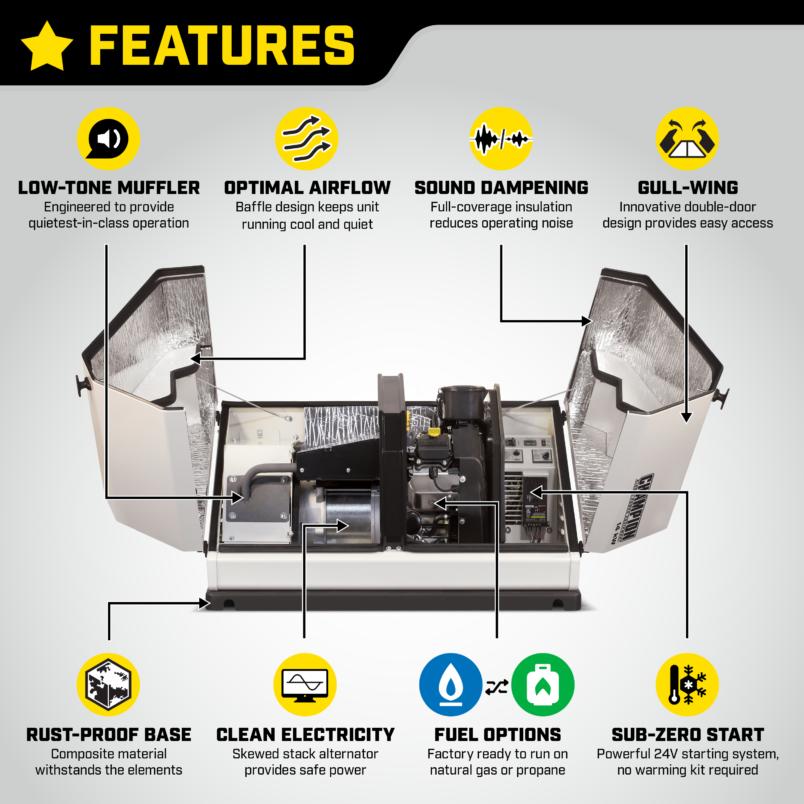

Features
- Whole House Power- The aXis ATS200 Whole House Automatic Transfer Switch provides managed power for your home with wi-fi setup and the ability to manage unlimited high demand loads using 4 priority levels
- Quietest-in-Class- Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 62 dBA noise level
- Reliable- 24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no cold weather kit necessary, plus the generator performs customizable self-diagnostic tests
- Powerful- The 14-kilowatt generator provides 14,000 watts of continuous power on propane and 12,500 watts on natural gas, with no refueling, no manual operation and no extension cords needed
- Champion Support- Includes a 10-year limited warranty, the longest standard warranty available on home standby generators in the market, with FREE lifetime technical support from dedicated experts
- Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with UL standards for the US
Specifications
| ETL Listing | ETLus |
| EPA Certified | Yes |
| Switch Amps | 200A |
| Switch Volts | 120/240 |
| Switch Type | Whole House |
| Switch Circuits | Whole Service |
| Switch Poles | 2 |
| Load Management | Yes |
| Service Entry Rated | Yes |
| Switch Enclosure | NEMA 3R |
| Length | 49 in. |
| Width | 28 in. |
| Height | 28 in. |
| Weight | 439 lb. |
| Propane Rated Watts | 14000W |
| Natural Gas Rated Watts | 12500W |
| Propane Rated Amps at 120V | 116.7A |
| Propane Rated Amps at 240V | 58.3A |
| Natural Gas Rated Amps at 120V | 104A |
| Natural Gas Rated Amps at 240V | 52A |
| Rated Volts | 120/240 |
| Rated Frequency | 60Hz |
| Phase | Single |
| Propane Fuel Consumption at 1/2 Load | 1.6 gal/h |
| Propane Fuel Consumption at Full load | 2.6 gal/h |
| Natural Gas Fuel Consumption at 1/2 Load | 116.5 ft3/h |
| Natural Gas Fuel Consumption at Full Load | 180.1 ft3/h |
| Main Line Circuit Breaker | 65A |
| Starting System Automatic | 24V |
| Operational Volume | 62 dBA |
| Cooling System | Air Cooled |
| AC Ton Rating | 5T |
| Generator Enclosure | Steel |
| Generator Mounting Pad | Composite |
| Engine Brand | Champion |
| Engine Size | 754cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Propane (LPG), Natural Gas (NG) |
| Engine Oil Type | Mobil 1 5W-30 Full Synthetic |
| Engine Oil Capacity | 1.7 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
Package Contents
14kw Standby Generator
200 Amp Transfer Switch
All weather composite mounting pad
HSB Enclosure Keys
LPG Jets
Jet Change Tool
Oil Drain Pan
Battery Cables and Hardware
Flexible Fuel Line
User's Manual
Warranty
This item comes with a 10 year manufacturer's limited warranty.
