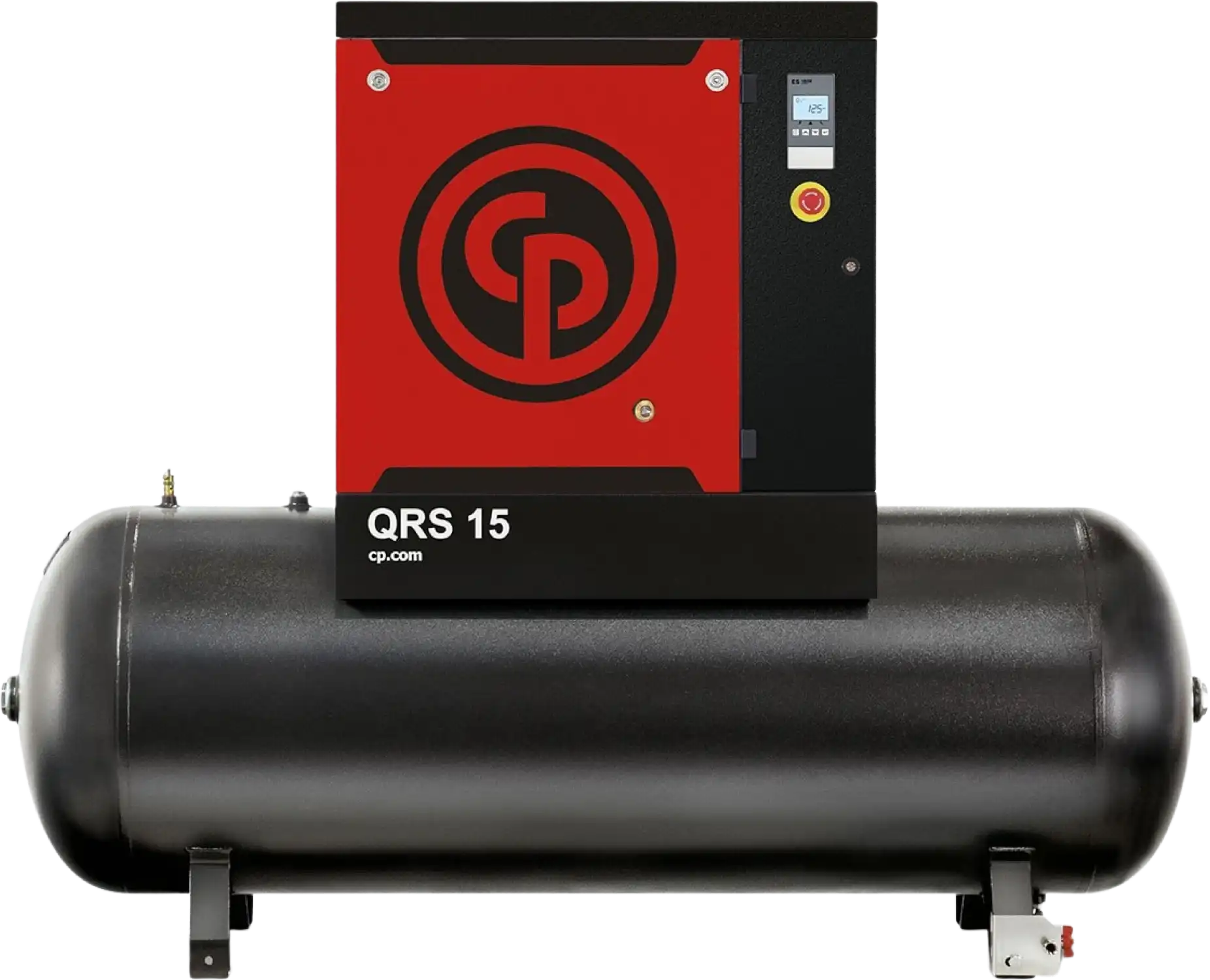

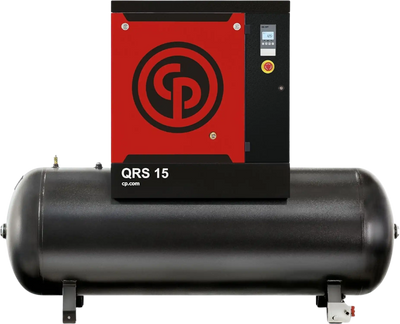

Chicago Pneumatic QRS-15 Rotary Screw Air Compressor 15HP 120 Gal. 3-Phase 230/460V New
Product Overview
Chicago Pneumatic's QRS is the leading rotary screw compressor for service or light industrial applications. Specially designed for high performance, efficiency, and reliability, the QRS rotary screw compressor will meet the compressed air demands of a tire shop, maintenance shop or paint shop. It offers comfortably quiet operation and you can use it all day long without cool-down periods.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Chicago Pneumatic dealer
Features
- Low Sound Enclosure; 69 dB(A) Quiet Operation
- 100% Duty Cycle Without Cool-Down Periods
- 3-Phase, 208-230/460V and 575V, TEFC Motor
- Load/No-Load Operation with Timed Shutdown
- Spin-on Oil Filter and Separator
- NEMA 1 Electrical Protection
- Vibration Isolated Assembly
- ES4000 Controller Displays Pressure & Temp Settings/Readings
- Warning and Service Alarms
- 120 Gal. ASME/CRN Certified Tank
- 125 PSI Max Working Pressure
Specifications
| Item Model # | QRS 15 TM-3 |
| Power Supply | 208-230V; 460V |
| Phase | 3-Phase |
| Horsepower | 15 HP |
| Pump Type | Rotary Screw |
| Free Air Flow Rate @ Max Pressure | 54.9 CFM |
| Max PSI | 125 |
| Air Dryer Included | No |
| Sound Level | 69 dB(A) |
| Enclosure Rating | NEMA 1 |
| Duty Cycle | 100% |
| Outlet Size | 1/2" |
| Product Dimensions | 76.2" x 25.4" x 57.9" |
| Weight | 622 lbs. |
Package Contents
Chicago Pneumatic QRS 15 TM-3 Rotary Screw Air Compressor
User Manual
Warranty
This item comes with a 1 year factory warranty.
