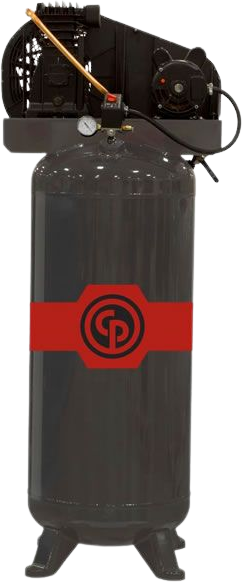

Chicago Pneumatic RCP-3561V Air Compressor 3.5HP 60 Gal. Single Stage Single-Phase 208-230V New
Manufacturer: Chicago Pneumatic
SKU: 8090254049
QTY
(888) 999-1522
$ 1,450.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 3-10 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Chicago Pneumatic RCP-3561V Air Compressor 3.5HP 60 Gal. Single Stage Single-Phase 208-230V New
Product Overview
For small business, residence or any other compressed air need, the RCP single stage compressor offers high volume, can operate on low amperage 208-230V single phase power, and is mounted on a rugged receiver tank to improve the consistency of your air flow. Featuring a solid cast iron cylinder, deep cooling fins, and aluminum head for unmatched heat dissipation. Balanced pistons and crankshaft mean smoother and quieter operation. All units are 100% tested at full pressure.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Chicago Pneumatic dealer
Features
- Start/Stop Pressure Switch Control
- ASME Safety Valves on Tank and Pump
- Fully Enclosed Belt Guard
- Tank Drain and Discharge Valve
- 208/230V; 3.5 HP Thermally Protected Motor
- Cast Iron Cylinder Construction
- Aluminum Head w/ Deep Cooling Fins
Specifications
| Item Model # | RCP-3561V |
| Power Supply | AC 208-230V |
| Phase | Single-Phase |
| Horsepower | 3.5 HP |
| Pump Type | Single Stage |
| CFM @ 100 PSI | 12.4 |
| Max PSI | 140 |
| Pump Material | Cast Iron |
| Pump Drive | Belt Drive |
| Oil System | Splash Lubricated |
| Tank Size | 60 Gallons |
| Tank Orientation | Vertical |
| Inlet/Outlet | 3/4" |
| Product Dimensions | 30" x 22" x 68" |
| Weight | 261 lbs. |
Package Contents
Chicago Pneumatic RCP-3561V Air Compressor
User Manual
Warranty
This item comes with a 1 year factory warranty.
