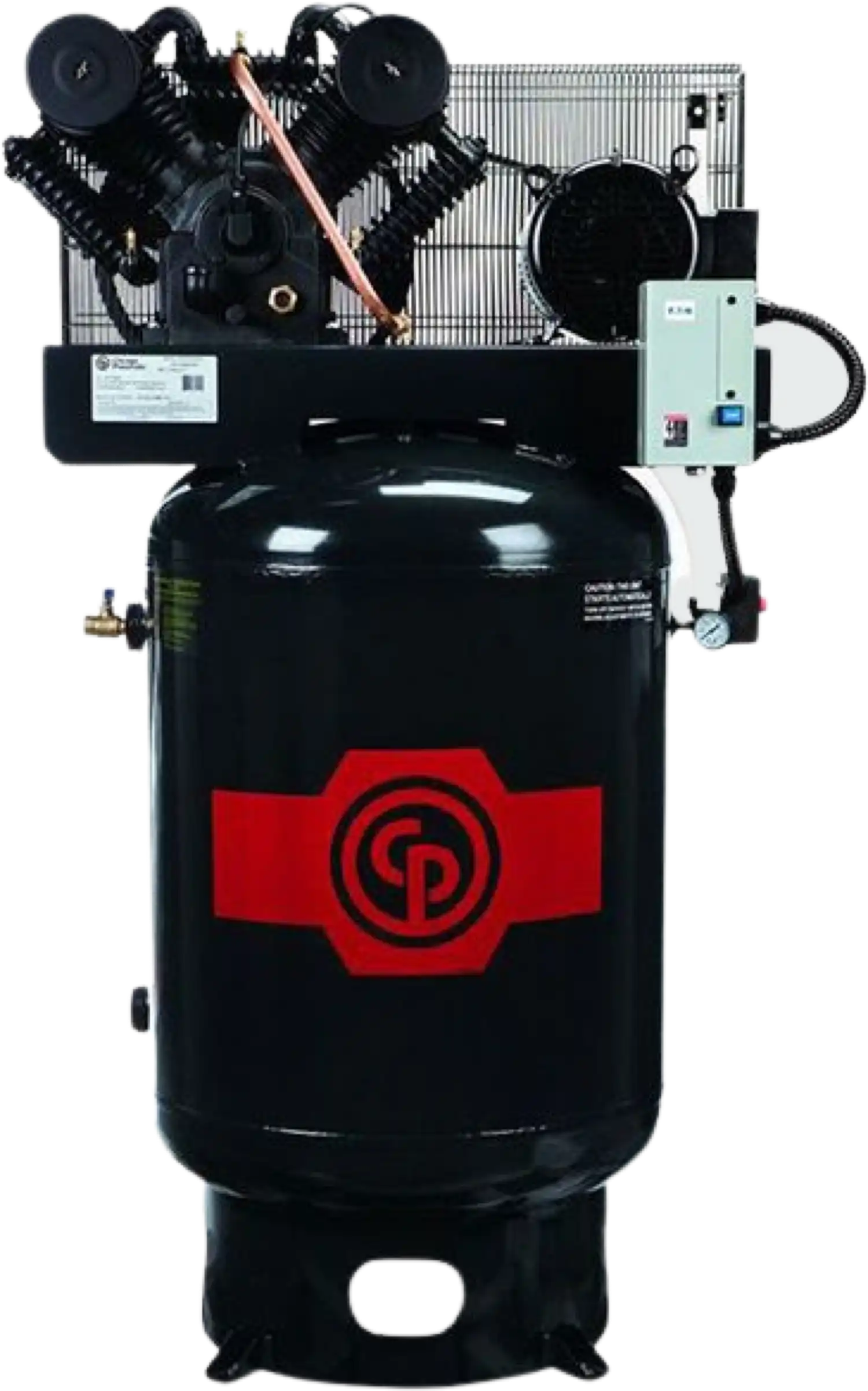

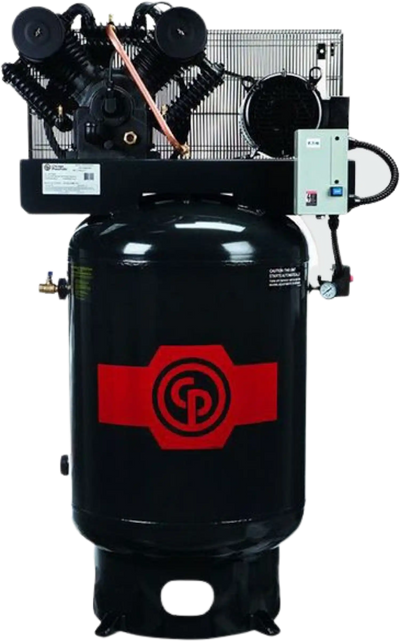

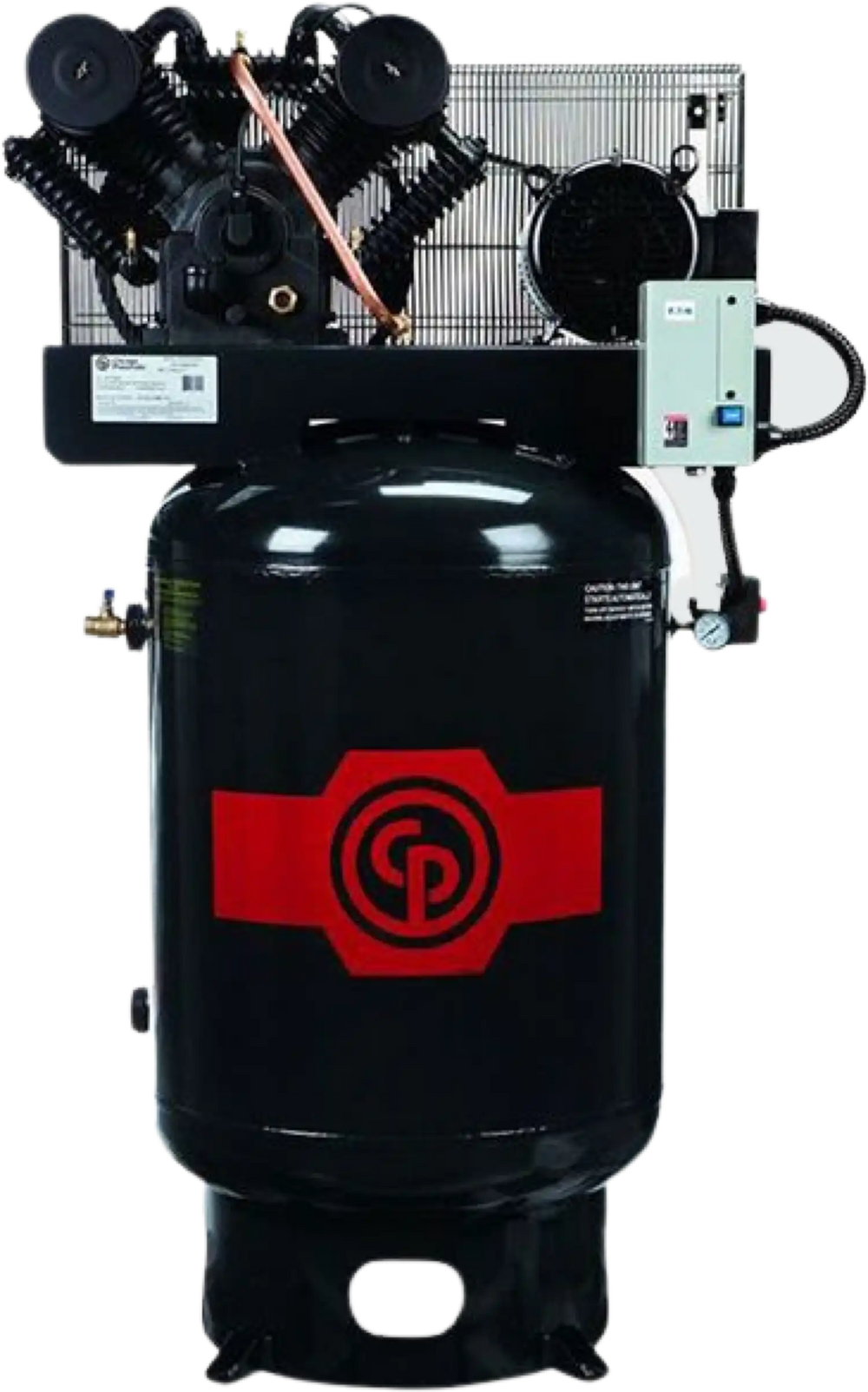

Chicago Pneumatic RCP-C10123VS Air Compressor 10HP 120 Gal. Two Stage 3-Phase 208-230V Iron Series New
Manufacturer: Chicago Pneumatic
SKU: 8090253066
QTY
(888) 999-1522
$ 5,020.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-10 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 2 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Chicago Pneumatic RCP-C10123VS Air Compressor 10HP 120 Gal. Two Stage 3-Phase 208-230V Iron Series New
Product Overview
Chicago Pneumatic's RCP Iron Series air compressors feature all cast iron pumps. Equipped with finned coolers and a splash lubricated oil system for unmatched heat dissipation. Featuring automotive style wrist pins and connecting rod bearings, concentric ring valves, and start-stop pressure switch control. All units are 100% tested at full pressure.
Brand new
2 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Chicago Pneumatic dealer
Features
- All Cast Iron Pump Construction
- Automotive Style Rod Bearings and Wrist Pins
- Concentric Ring Valves
- Splash Lubricated Oil System
- Start-Stop Pressure Switch Control
- Fully Enclosed Belt Guard
- ASME/CRN Certified Tank and Safety Valves
Specifications
| Item Model # | RCP-C10123VS |
| Power Supply | AC 208-230V |
| Amp Draw | 26-25 |
| Recommended Breaker | 60 Amp |
| Phase | 3-Phase |
| Horsepower | 10 HP |
| Pump Type | Two Stage |
| CFM @ 100 PSI | 35 |
| Max PSI | 175 |
| Pump Material | Cast Iron |
| Pump Drive | Belt Drive |
| Oil System | Splash Lubricated |
| Magnetic Starter | Yes |
| Tank Size | 120 Gallons |
| Tank Orientation | Vertical |
| Inlet/Outlet | 3/4" |
| Product Dimensions | 42" x 30" x 74" |
| Weight | 890 lbs. |
Package Contents
Chicago Pneumatic RCP-C10123VS Air Compressor Iron Series
User Manual
Warranty
This item comes with a 2 year factory warranty.
