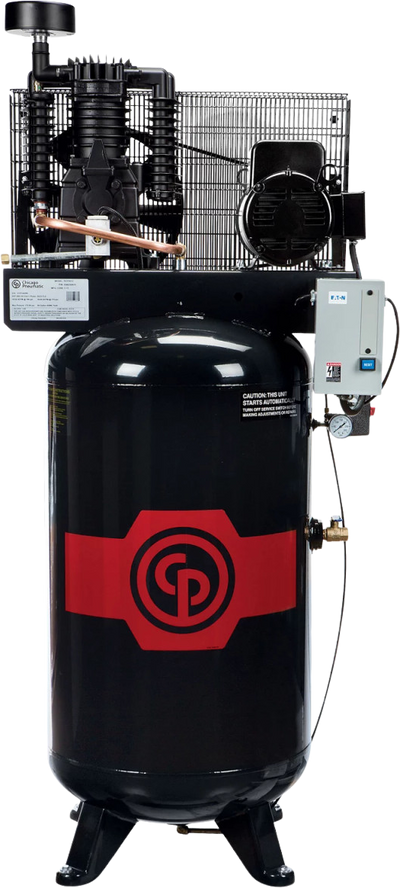

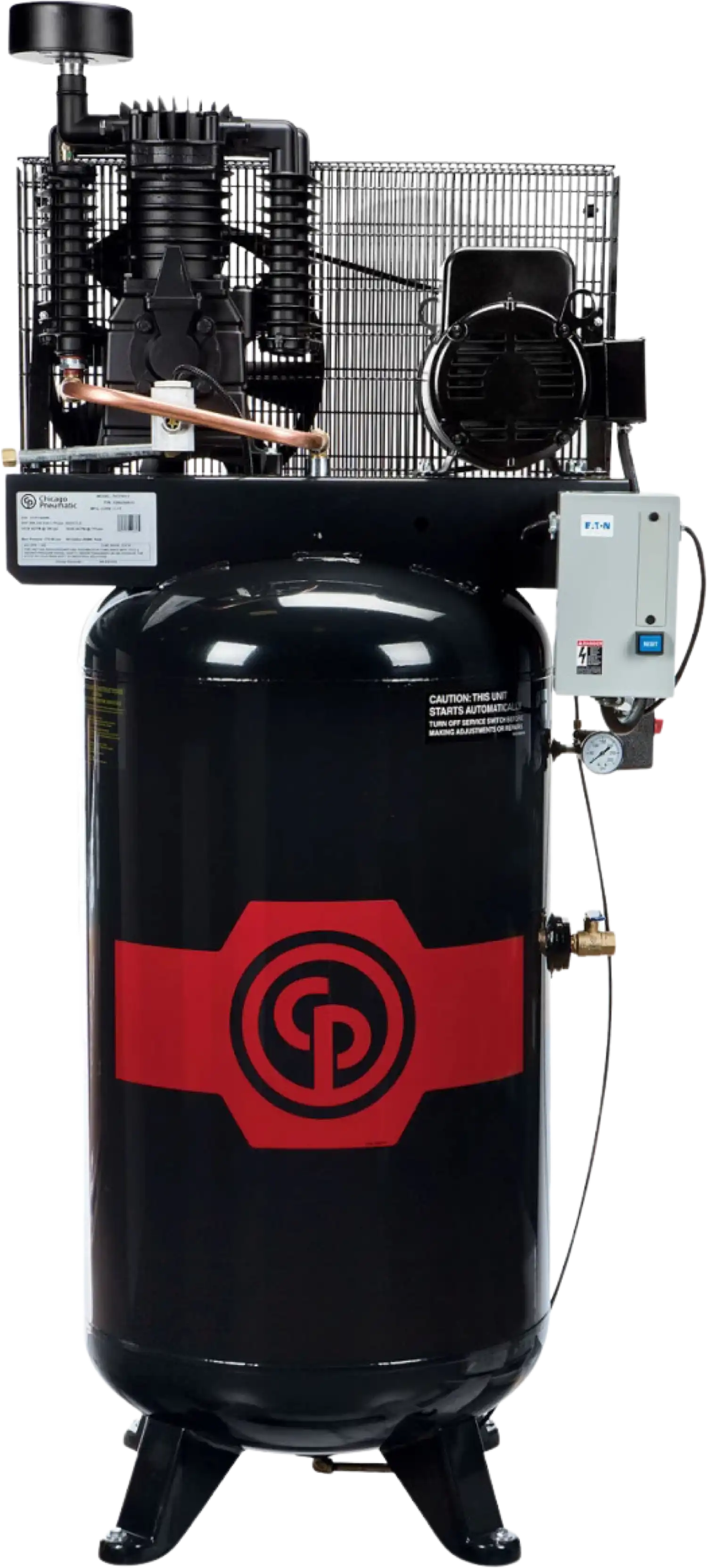

Chicago Pneumatic RCP-C7581VS Air Compressor 7.5HP 80 Gal. Two Stage Single-Phase 208-230V Iron Series New
Product Overview
Chicago Pneumatic's RCP Iron Series air compressors feature all cast iron pumps. Equipped with finned coolers and a splash lubricated oil system for unmatched heat dissipation. Featuring automotive style wrist pins and connecting rod bearings, concentric ring valves, and start-stop pressure switch control. All units are 100% tested at full pressure.
Brand new
2 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Chicago Pneumatic dealer
Features
- All Cast Iron Pump
- Concentric Ring Valves
- ASME Certified Tank & Safety Valves
- Automotive Style Wrist Pins and Connecting Rod Bearings
- Tapered Rolling Bearing on Crankshaft
- Splash Lubricated
- Baldor Motor w/ Magnetic Starter
- Start-Stop Pressure Switch Control
- High Flow Wire Belt Guard
Specifications
| Item Model # | RCP-C7581VS |
| Power Supply | AC 208-230V |
| Phase | Single-Phase |
| Amp Draw | 32-29 Amp |
| Horsepower | 7.5 HP |
| Pump Type | Two-Stage |
| CFM @ 100 PSI | 23 |
| Max PSI | 175 |
| Pump Material | Cast Iron |
| Pump Drive | Belt Drive |
| Oil System | Splash Lubricated |
| Tank Size | 80 Gallons |
| Tank Orientation | Vertical |
| Inlet/Outlet | 3/4" |
| Product Dimensions | 37" x 24" x 72" |
| Weight | 600 lbs. |
Package Contents
Chicago Pneumatic RCP-C7581VS Air Compressor Iron Series
User Manual
Warranty
This item comes with a 2 year factory warranty.
