Cummins A063P963 C30D6 30kW Generator Diesel with 24-Hour Fuel Tank Liquid Cooled Single Phase 120/240V New
Manufacturer: Cummins
SKU: A063P963
QTY
or
(888) 999-1522
$ 24,758.08
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 3-5 business days
Exceptional Customer Service
Authorized Dealer

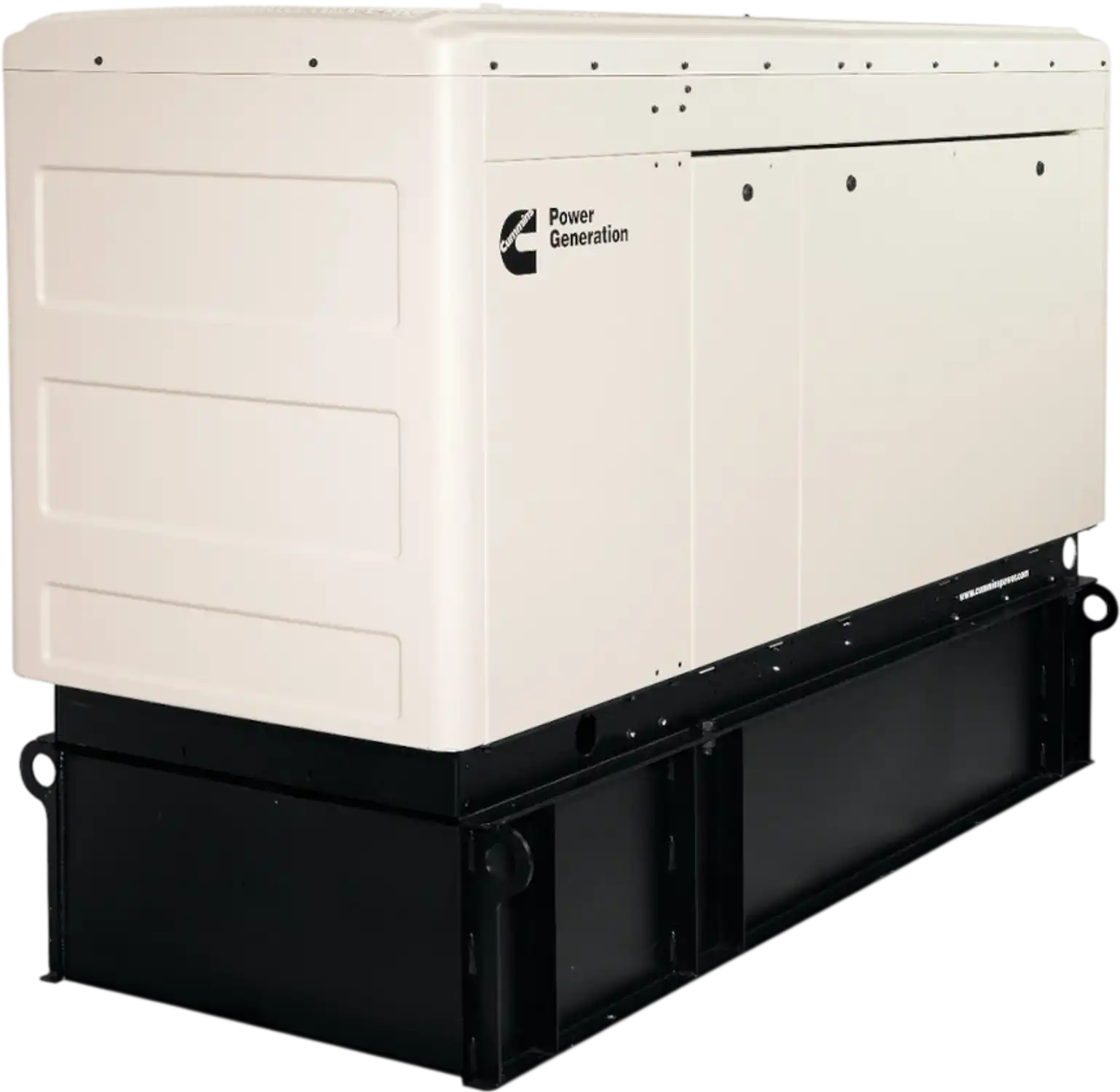

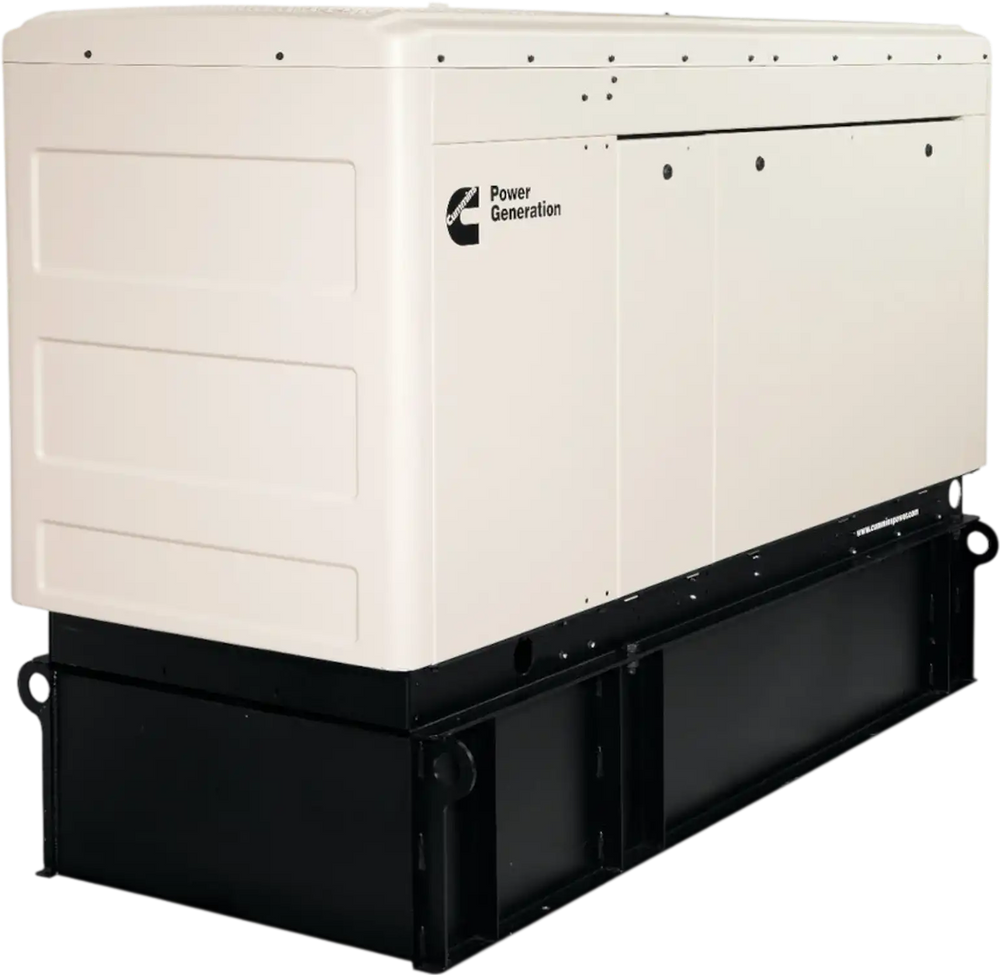

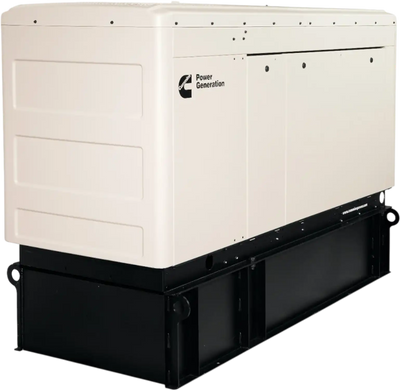

Cummins A063P963 C30D6 30kW Generator Diesel with 24-Hour Fuel Tank Liquid Cooled Single Phase 120/240V New
Product Overview
The Cummins C30D6 is a 30kW diesel generator designed for dependable backup power in demanding environments. This preconfigured unit includes a 24-hour fuel tank, a heavy-duty 3.3L 4-cycle diesel engine, and PowerCommand 1.1 electronic control for integrated operation and monitoring. The generator is UL 2200 listed, NFPA 110 Level 1 compliant, and CARB 2024 compliant. Its sound-attenuated enclosure and factory-direct configuration make it a strong solution for residential or light commercial standby applications.
2 year factory warranty
Brand new in box
Manufacturer direct shipping
Authorized Cummins dealer
Features
- Pre-Configured Fuel Tank - Includes a 24-hour fuel tank (approx. 74 gal.)
- Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
- Heavy duty engines - Rugged 4-cycle industrial diesel engines deliver reliable power and fast response to load changes.
- Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
- Control system - The PowerCommand® 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection.
- Cooling system - Standard cooling package provides reliable running at up to 122 °F (50 °C) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
- Enclosures - The aesthetically appealing enclosure incorporates special designs that deliver one of the quietest generators of its kind. Aluminum material plus durable powder coat paint provides the best anti-corrosion performance. The generator set enclosure has been evaluated to withstand 180 mph wind loads in accordance with ASCE 7-10.
Specifications
| Model | C30D6-A063P963 |
| Power Output | 30kW |
| Voltage | 120/240V |
| Phase | Single Phase |
| Fuel Type | Diesel |
| Engine | 3.3L 4-cycle diesel |
| Engine Speed | 1800 RPM |
| Alternator | 4-pole brushless |
| Control Panel | PowerCommand 1.1 |
| Fuel Tank Capacity | 74 gal |
| Fuel Consumption at 50% Load | 1.62 GPH |
| Fuel Consumption at 100% Load | 2.81 GPH |
| Battery Requirement | 12V 550 CCA |
| Enclosure | Sound Level 1 enclosure |
| Dimensions | 93.8 x 34 x 60.5 in |
| Dry Weight | 790 lbs |
Package Contents
Cummins C30D6 Diesel Generator w/ 24Hr Fuel Tank
Warranty
This item comes with a 2 year factory warranty.
