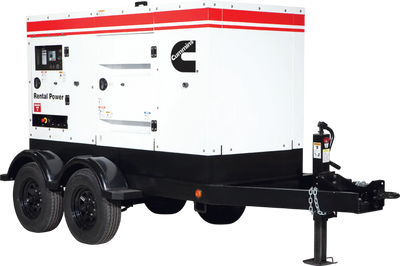

Cummins C100D2RE Generator 100kW Diesel Towable Package 50/60Hz New
Manufacturer: Cummins
SKU: C100D2RE
Watts
QTY
or
(888) 999-1522
$ 108,900.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Cummins C100D2RE Generator 100kW Diesel Towable Package 50/60Hz New
Product Overview
This Cummins Power Generation package is a fully integrated mobile power generation system, providing optimum performance, reliability, and versatility for standby and prime power applications. Equipped with a dual speed engine for operation at 50 or 60 Hz, and 4-position voltage selector switch.
Brand new
3 year warranty
Diesel powered
Authorized Cummins dealer
Features
- U.S. Tier IV Final and EU SIIIa certified Cummins QSB5-G11 engines which meet emissions limits without the use of a diesel particulate filter (DPF)
- Dual speed engine for operation at 50 or 60 Hz
- Advanced electronic engine controls with integrated aftertreatment system provide superior fuel efficiency while reducing emissions
- High-pressure common rail fuel system reduces engine noise and smoke
- Cummins Direct Flowâ„¢ air filtration offering improved air management, longer service life, and easier serviceability
- 2-stage fuel filtration with optimum particle and water separation
- The most advanced, reliable and capable generator set control system on the market today
- Controls provide precise frequency and voltage regulation, alarm and status message display in one easy to operate interface
- Sound attenuated, white powder coated lockable enclosure
- Engine control module includes remote start capability
- 12-lead reconnectable alternators fitted with voltage selection switch
- Permanent magnet excitation for improved performance in non-linear load applications
- 4 position voltage selector switch (60Hz: 277/480 or 139/240 or 120/208 VAC 3 phase or 120/240 VAC 1 phase). Also first position 50Hz: 230/400 VAC 3 phase)
Specifications
| Model Number | C100D2RE |
| Fuel Type | Diesel |
| Voltage | 60Hz: 277/480 or 139/240 or 120/208 VAC 3 phase or 120/240 VAC 1 phase; 50Hz: 230/400 VAC 3 phase) |
| Frequency | 50/60 Hz |
| Rated Watts | 100,000 Watts |
| Fuel Consumption @ 50% Load | Standby: 3.8 gallons/hr; Prime: 3.5 gallons/hr |
| Fuel Consumption @ 100% Load | Standby: 7.1 gallons/hr; Prime: 6.3 gallons/hr |
| Fuel Capacity | 131 gal. |
| Decibel Rating @ 23 ft. (7m) | 68 dB(A) |
| Engine Model | Cummins QSB5-G11 |
| Tier Rating | Tier IV |
| Displacement | 4.5 liters |
| Dimensions (L x W x H) | 121" x 50" x 77" |
| Dimensions (With trailer) | 189" x 83" x 96" |
| Weight (without fuel) | 7100 lbs. |
Package Contents
Cummins 100kW Towable Diesel Generator
Warranty
This item comes with a 3 year - 3,000 hours warranty.
