Cummins C100D6C 100kW Agricultural Generator Diesel Liquid Cooled 1 Phase 120/240V No Enclosure A061T471 New
Manufacturer: Cummins
SKU: A061T471
Power Output
QTY
or
(888) 999-1522
$ 28,497.76
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in (est) 3-5 business days
Exceptional Customer Service
Authorized Dealer
Cummins C100D6C 100kW Agricultural Generator Diesel Liquid Cooled 1 Phase 120/240V No Enclosure A061T471 New
Product Overview

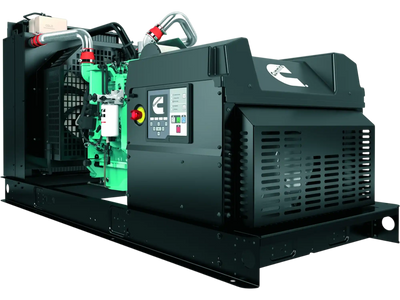

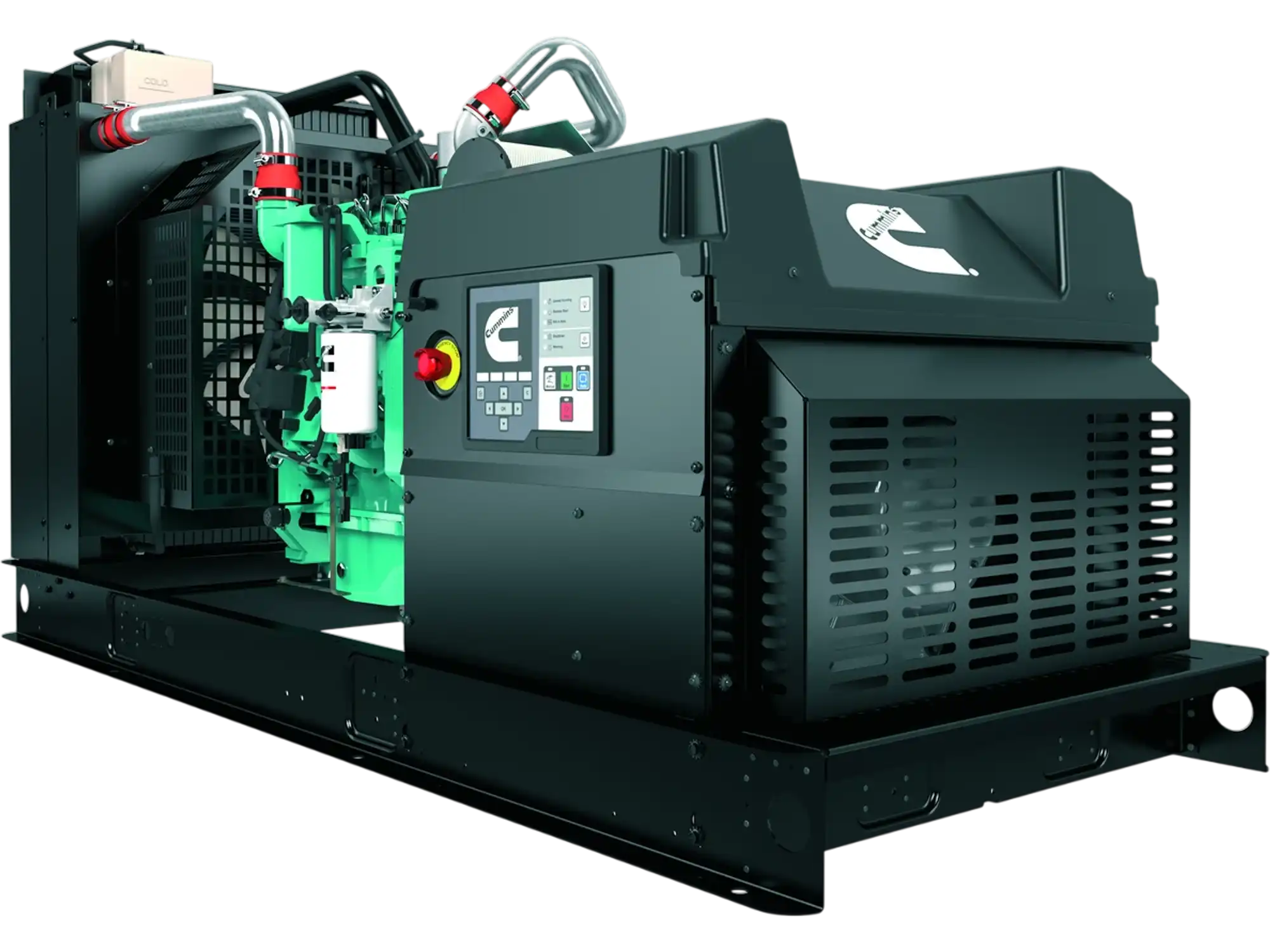

The Cummins C100D6C is a 100kW agricultural diesel generator built for reliable standby power in demanding farm and rural applications. It features a heavy-duty 4.5L 4-cycle diesel engine, a 4-pole brushless alternator, and PowerCommand 1.1 electronic control for integrated operation and monitoring. The standard cooling system supports operation in extreme temperatures, while the alternator is designed for low waveform distortion on non-linear loads. This preconfigured unit ships without an enclosure or fuel tank and is rated for standby power applications only.
Not for sale in California.
2 year factory warranty
Brand new in box
Manufacturer direct shipping
Authorized Cummins dealer
Features
- Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
- Heavy duty engine - Rugged 4-cycle industrial diesel delivers reliable power and fast response to load changes.
- Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
- Control system - Provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.
- Cooling system - Standard cooling package provides reliable running at up to 50 °C (122 °F) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
- Battle Short Mode – This mode will allow the generator to override certain faults that would normally shut the generator down.
- Flexible exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer's preference reducing unnecessary fuel consumption, emissions and noise.
- Self-diagnostics and easy service - The generator is equipped with Cummins PowerCommand® electronic control to provide industry-leading self-diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time
Specifications
| Model | C100D6-A061T471 |
|---|---|
| Power Output | 100kW |
| Voltage | 120/240V |
| Phase | Single Phase |
| Circuit Breaker | 600A |
| Fuel Type | Diesel |
| Engine | 4.5L 4-cycle diesel |
| Engine Speed | 1800 RPM |
| Alternator | 4-pole brushless |
| Control Panel | PowerCommand 1.1 |
|---|---|
| Enclosure | None |
| Fuel Tank | Not included |
| Dimensions | 98 x 38 x 52 in |
| Weight | 2439 lbs |
Package Contents
Cummins C100D6C 100kW Agricultural Generator
Warranty
This item comes with a 2 year factory warranty.
