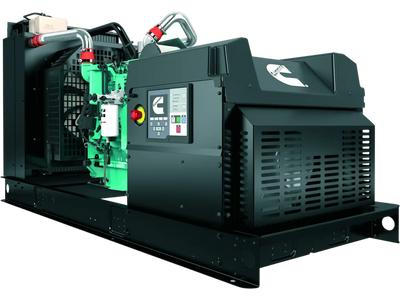

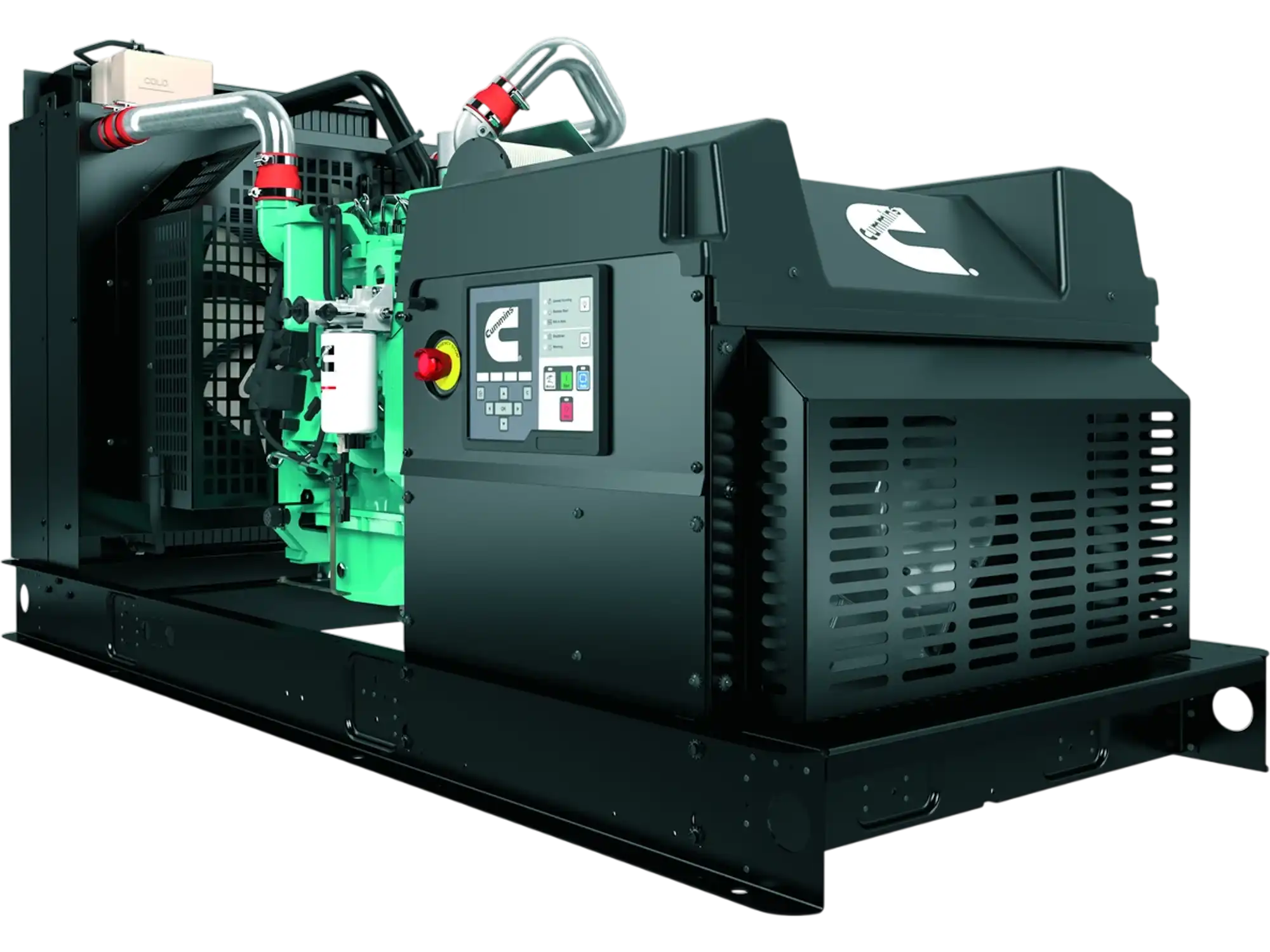

Cummins C200D6D 200kW Agricultural Generator Diesel Liquid Cooled 1 Phase 120/240V No Enclosure A061T477 New
Product Overview
The Cummins C200D6D is a 200kW agricultural diesel generator built for standby power applications in demanding environments. It uses a heavy-duty 6.69 liter 4-cycle diesel engine with a brushless 4-pole alternator and PowerCommand 1.1 electronic control. The standard cooling system supports operation in temperatures up to 122°F and includes coolant heaters for dependable starting down to -40°F. This preconfigured unit ships without an enclosure and does not include a fuel tank.
Not for sale in California.
2 year factory warranty
Brand new in box
Manufacturer direct shipping
Authorized Cummins dealer
Features
- Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
- Heavy duty engine - Rugged 4-cycle industrial diesel delivers reliable power and fast response to load changes.
- Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
- Control system - Provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.
- Cooling system - Standard cooling package provides reliable running at up to 50 °C (122 °F) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
- Battle Short Mode – This mode will allow the generator to override certain faults that would normally shut the generator down.
- Flexible exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer's preference reducing unnecessary fuel consumption, emissions and noise.
- Self-diagnostics and easy service - The generator is equipped with Cummins PowerCommand® electronic control to provide industry-leading self-diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time
Specifications
| Model | C200D6-A061T477 |
|---|---|
| Power Output | 200kW |
| Voltage | 120/240V |
| Phase | Single Phase |
| Circuit Breaker | 800A |
| Fuel Type | Diesel |
| Engine | QSB7 6.69 liter inline 4-cycle diesel |
| Engine Speed | 1800 RPM |
| Alternator | 4-pole brushless revolving field |
| Control Panel | PowerCommand 1.1 |
|---|---|
| Enclosure | None |
| Fuel Tank | Required, not included |
| Dimensions | 113 x 40 x 56 in |
| Weight | 3491 lbs |
Package Contents
Cummins C200D6D 200kW Agricultural Generator
Warranty
This item comes with a 2 year factory warranty.
