Cummins C80D6C 80kW Agricultural Generator Diesel Liquid Cooled 1 Phase 120/240V No Enclosure A061T469 New
Manufacturer: Cummins
SKU: A061T469
Power Output
QTY
or
(888) 999-1522
$ 26,625.23
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in (EST) 18-21 weeks
Exceptional Customer Service
Authorized Dealer

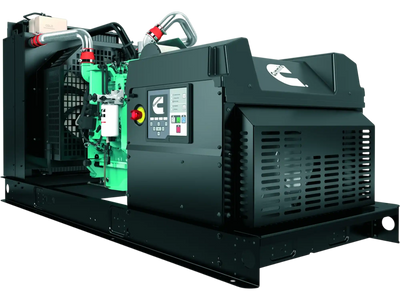

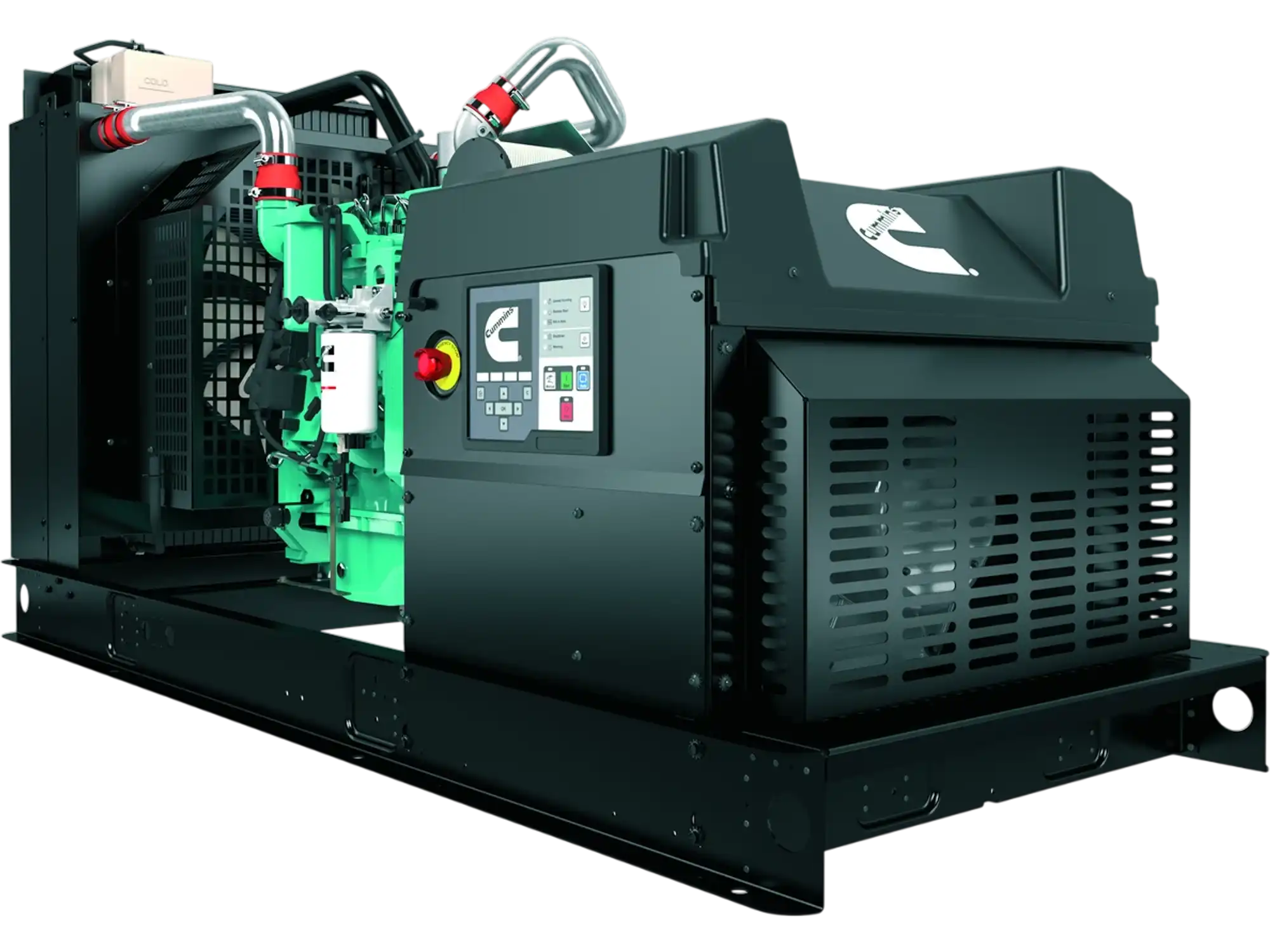

Cummins C80D6C 80kW Agricultural Generator Diesel Liquid Cooled 1 Phase 120/240V No Enclosure A061T469 New
Product Overview
The Cummins C80D6C is an 80kW agricultural diesel generator built for standby power in demanding farm and industrial environments. It features a heavy-duty 4.5 liter 4-cycle diesel engine, a 4-pole brushless alternator, and PowerCommand 1.1 electronic control for integrated system management. The standard cooling system supports operation in high ambient temperatures and includes coolant heaters for cold-weather starting. This model is configured without an enclosure and requires a separate fuel tank.
Not for sale in California.
2 year factory warranty
Brand new in box
Manufacturer direct shipping
Authorized Cummins dealer
Features
- Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
- Heavy duty engine - Rugged 4-cycle industrial diesel delivers reliable power and fast response to load changes.
- Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
- Control system - Provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.
- Cooling system - Standard cooling package provides reliable running at up to 50 °C (122 °F) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
- Battle Short Mode – This mode will allow the generator to override certain faults that would normally shut the generator down.
- Flexible exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer's preference reducing unnecessary fuel consumption, emissions and noise.
- Self-diagnostics and easy service - The generator is equipped with Cummins PowerCommand® electronic control to provide industry-leading self-diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time
Specifications
| Model | C80D6-A061T469 |
|---|---|
| Rated Output | 80kW |
| Voltage | 120/240V |
| Phase | Single Phase |
| Fuel Type | Diesel |
| Engine | 4.5 liter 4-cycle diesel |
| Engine Model | QSB5 |
| Rated Engine Speed | 1800 RPM |
| Alternator Type | 4-pole brushless alternator |
| Control | PowerCommand 1.1 |
|---|---|
| Fuel Tank | Not included |
| Enclosure | None |
| Dimensions | 98 x 38 x 52 in |
| Weight | 2324 lbs |
Package Contents
Cummins C80D6C 80kW Agricultural Generator
Warranty
This item comes with a 2 year factory warranty.
