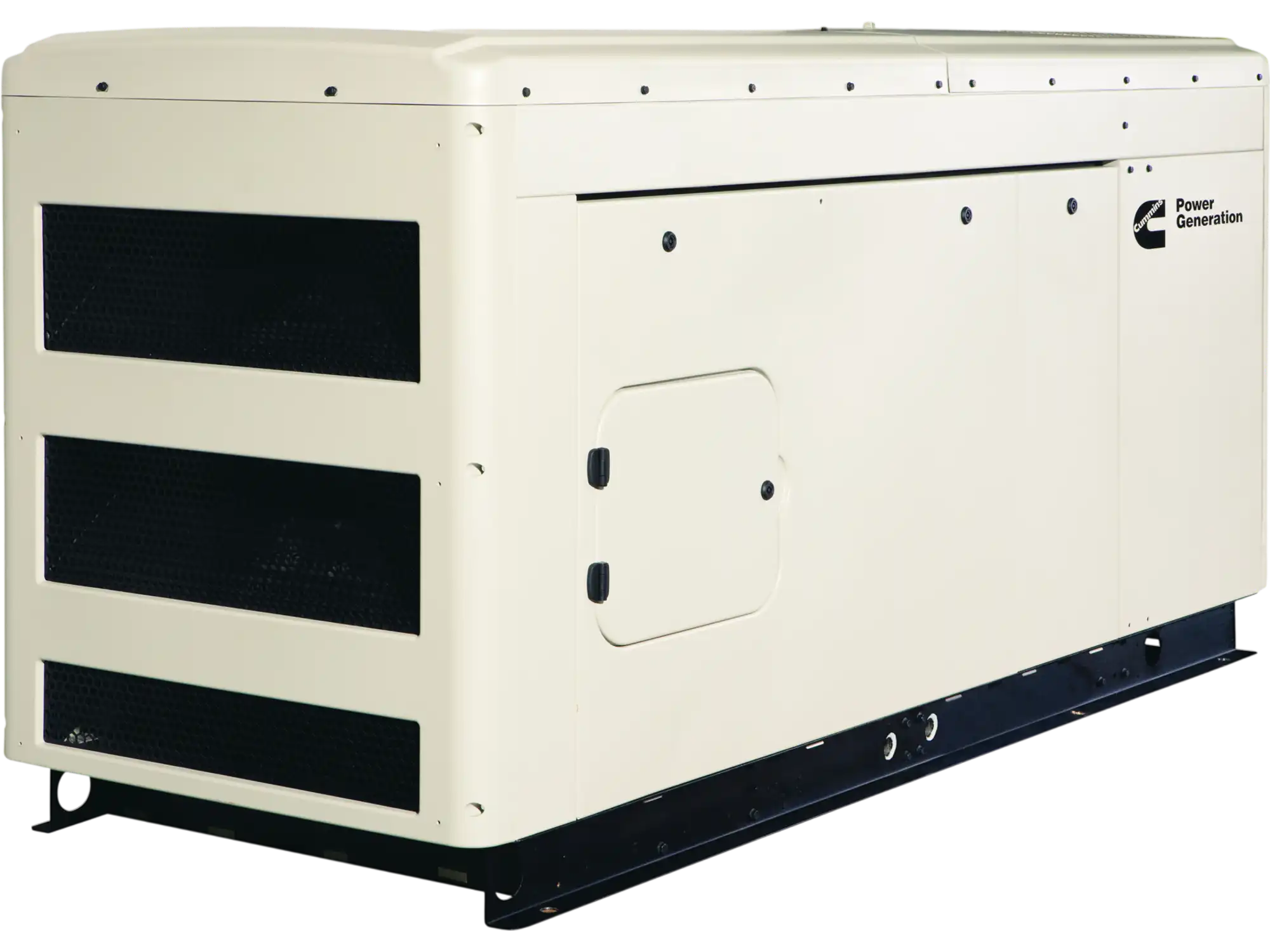

Cummins C80D6C 80kW Standby Generator Diesel Liquid Cooled 1 Phase 120/240V CARB No Fuel Tank A063P969 New
Manufacturer: Cummins
SKU: A063P969
Power Output
Fuel Tank Options
QTY
or
(888) 999-1522
$ 34,652.81
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in (EST) 18-21 weeks
Exceptional Customer Service
Authorized Dealer
Cummins C80D6C 80kW Standby Generator Diesel Liquid Cooled 1 Phase 120/240V CARB No Fuel Tank A063P969 New
Product Overview
The Cummins C80D6C is an 80kW diesel generator built for reliable standby power in demanding environments. It features a heavy-duty 4.5 liter 4-cycle diesel engine, a 4-pole brushless alternator, and PowerCommand 1.1 electronic control for integrated operation and protection. The standard cooling system supports operation in high ambient temperatures and includes coolant heaters for dependable cold-weather starting. This preconfigured model comes in a Sound Level 1 sandstone enclosure and does not include a fuel tank.
2 year factory warranty
Brand new in box
Manufacturer direct shipping
Authorized Cummins dealer
Features
- Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
- Heavy duty engines - Rugged 4-cycle industrial diesel engines deliver reliable power and fast response to load changes.
- Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
- Control system - The PowerCommand® 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.
- Cooling system - Standard cooling package provides reliable running at up to 122 °F (50 °C) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
- Flexible exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer's preference reducing unnecessary fuel consumption, emissions and noise.
- Self-diagnostics and easy service - The generator is equipped with Cummins PowerCommand® electronic control to provide industry-leading self-diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time
Specifications
| Model | C80D6-A063P969 |
|---|---|
| Series | Quiet Connect |
| Rated Power | 80 kW |
| Voltage | 120/240V |
| Phase | Single Phase |
| Circuit Breaker | 400A |
| Engine | 4.5 liter 4-cycle diesel |
| Engine Model | QSB5 |
| Engine Speed | 1800 RPM |
| Alternator | 4-pole brushless alternator |
| Controller | PowerCommand 1.1 |
|---|---|
| Enclosure | Sound Level 1 |
| Enclosure Color | Sandstone |
| Cooling System | Liquid Cooled |
| Dimensions | 119 x 40 x 58 in |
| Weight | 2500 lbs |
Package Contents
Cummins C80D6C 80kW Diesel Generator
Warranty
This item comes with a 2 year factory warranty.
