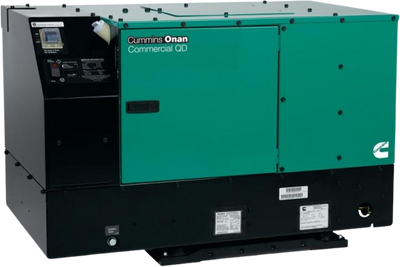

Cummins Onan QD 10000 10kW RV Generator 10HDKCA11506 RV Diesel Single Phase 120 Volt Liquid Cooled New

Manufacturer: Cummins

SKU: A055E835

CommercialQD1012scr_43
CommercialQD1012scr_43

QTY

(888) 999-1522

$ 13,987.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

in stock checkmark

In Stock

tags

ON SALE!

delivery truck icon

USE FOLLOWING CODE AT CHECKOUT FOR $50 OFF: CRV COPY

Ships in (est) 3-5 business days

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Cummins Onan QD 10000 10kW RV Generator 10HDKCA11506 RV Diesel Single Phase 120 Volt Liquid Cooled New

Cummins Onan QD 10000 10kW RV Generator 10HDKCA11506 RV Diesel Single Phase 120 Volt Liquid Cooled New

Product Overview

Cummins Onan QD Diesel powered 10000 watt RV generator. Computer controlled constant speed operation, Quiet Diesel performance for smaller RV's.  Special sound-controlling housing encloses the cooling system and muffler.  Double isolation mounting system reduces vibration.
vendor logo
divider
authorized dealer
checkmark

3 year factory warranty

checkmark

Brand new in box

checkmark

Diesel powered

checkmark

Authorized Cummins dealer

Features

  • 10.0 kW Diesel Powered RV Generator (Model 11506)
  • Designed for Type A RVs w/ 3 AC units (45A 2-Pole Breaker)
  • Runs 3 15,000 BTU AC units w/ 2500 additional watts available
  • Cummins Onan 1499cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.43 Gal/h @ 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Variable Speed Operation
  • Matches engine speed to load demand, minimizes noise levels
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • 3 Year / 2000 Hour Warranty

Specifications

Hour Meter Yes
Fuel Consumption .38-.78 gallons/hr
Circuit Breaker Size 45 Amps
Min. Air Inlet - Front 19" x 12"
Min. Air Outlet - Bottom 15" x 16"
Grade Type Recreational
Engine Brand Cummins Onan
Starting System 12-Volt Button Start
HP 27 HP
CC 1499 CC
Consumer Engine Warranty 3 Years
Low Oil Alert/Shutdown Yes
Product Category Generator - RV
Weight 767 Pounds
Consumer Warranty 3 Years
Product Style RV Generator
Product Length 41.4 Inches
Product Width 24.5 Inches
Product Height 27 Inches
Additional Model Numbers RV QD 10000, A055E835
Voltage 120/240 Single-Phase
Frequency 60 Hertz
Alternator Brush
Auto Voltage Regulation Yes
Rated Watts 10000 Watts
Fuel Type Diesel
Rated Amps 41.7 Amps
Diesel Fuel Consumption @ 50% Load .54 gallons/hr
Decibel Rating @ 3m 70
Idle Control Yes

Package Contents

Cummins Onan QD 10000 Diesel Generator

User's manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year factory warranty.
