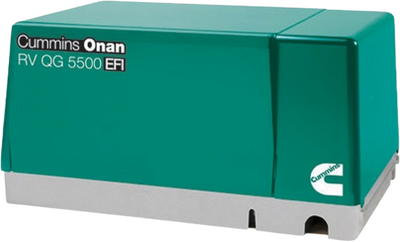

Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-600 RV Gas Single Phase 120 Volt Air Cooled 30A/20A Breaker New

Manufacturer: Cummins

SKU: A063C087

QG_5500_EFI__30161

QG_5500_EFI__30161

QTY

$ 5,292.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

tags

ON SALE!

truck icon

USE FOLLOWING CODE AT CHECKOUT FOR $50 OFF: CRV COPY

Ships in (est) 3-5 business days

Extended Warranty

×

Factory Warranty

  • This item comes with a 3 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 3 year factory warranty.

$399.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees
  • Brand NewFull parts and labor warranty

$499.00

(Details)

  • WarrantyExtends factory warranty to 3 total years
  • WarrantyCovers functionality issues for 3 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

$599.00

(Details)

  • WarrantyExtends factory warranty to 5 total years
  • WarrantyCovers functionality issues for 5 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Product Overview

Cummins Onan QG EFI Gasoline powered 5500 watt RV Generator. Includes electronic fuel ignition for maximum performance. Runs two air conditioners with power to spare.

**0541-1002 – must order fuel pump kit for electronic fuel injection. The Electronic Fuel Injection genset may only be installed on motorized chassis equipped to handle the fuel return and evaporative emissions. Current emissions regulations prevent adding a return port to any fuel tank not specifically manufactured to accommodate our fuel injected genset.
vendor logo
divider
authorized dealer
checkmark

3 year factory warranty

checkmark

Brand new in box

checkmark

Gasoline powered

checkmark

Authorized Cummins dealer

Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-600 RV Gas Single Phase 120 Volt Air Cooled 30A/20A Breaker New

Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-600 RV Gas Single Phase 120 Volt Air Cooled 30A/20A Breaker New

Features

  • Electronic fuel injection - industry first for maximum performance.
  • Quietest generator set in its class.
  • Exceptionally low vibration levels.
  • Integrated design with enclosed muffler for easy installation.
  • Self-diagnostic capability to simplify troubleshooting.
  • Runs two air conditioners with power to spare.
  • Digital voltage regulation for stability as appliance loads change.
  • 3-year limited warranty, lifetime drive warranty.

Specifications

Battery For Electric Start Not Included
Warranty 3 Year (Limited)
Weight (Lbs.) 288
Ship Weight (Lbs.) 338
Operating Weight (Lbs.) 288
Dimension No Wheel Kit 22.2"W x 33.6"L x 16.7"H
Agency Compliance CARB (California), EPA, National Park Approved
Surge Start Watts 5,500.0
Continuous Rated Watts 5,500.0
Prime Rating Watts 5,500
Phase Single-Phase
Voltage 120
Rated Amps @ Min Volt (Commonly 120v) 45.8
Frequency 60 Hz
Power Factor 1.0
Alternator Brush
Voltage Regulation 0.6%
Voltage Regulation Type Digital
Frequency Regulation Less Than 2 Percent
Insulation Class H
Manufacturer Cummins
SKU 5.5HGJAA-600
Model Number QG 5500
Generator Grade Recreational
Generator Style RV Generator
Engine/Motor Brand Cummins
Engine Model EH65V
Fuel Type Gasoline
Starting System Electric
Horsepower 20.0 HP
Engine/Motor Type Air-Cooled, OHV, 90-degree V-twin, Electronic Fuel Injected
Displacement 653 cc
Engine RPM 2400 RPM
Generator RPM 2400 RPM
Fuel Induction System Electronic Fuel Injection
Lubrication System Full Pressure
Engine Governor Electronic
Operational Volume (dB @10ft) 69.0
Operational Volume (dB @50ft) 60.0
Auto Fuel Shut-Off Valve Yes
Muffler/Exhaust Enclosed Spark-Arrestor
Evaporative Emissions Control Equipped Model No, generator is NON-EVAP and is not evaporative emissions compliant. Your generator application/installation requires its own evaporative emissions standards compliance measures.
Altitude Affected Yes
Vibration Isolators Yes

Package Contents

Cummins Onan QG 5500 Gas Generator

User's manual

Warranty
