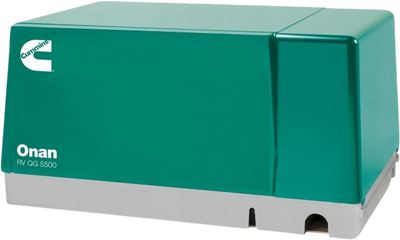

Cummins Onan QG 5500 5.5kW RV Generator 5.5HGJAB RV Single Phase 120 Volt Air Cooled New
Manufacturer: Cummins
SKU: A063B869
Share
QTY
$ 5,259.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Manufacturer Direct
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
Cummins Onan QG 5500 5.5kW RV Generator 5.5HGJAB RV Single Phase 120 Volt Air Cooled New
Share
Product Overview
The Cummins Onan 5.5 HGJAB features exceptionally low vibration levels and is the quietest in its class. The 5.5 HGJAB is capable of running up to two air conditioners with power to spare. Cummins backs this generator with a standard 3 year limited warranty.
3 year factory warranty
Brand new in box
Gasoline and propane powered
Authorized Cummins dealer
Features
- Quietest in its class
- Exceptionally low vibration levels
- Integrated design with enclosed muffler for easy installation
- Self-diagnostic capability to simplify troubleshooting
- Runs one or two air conditioners with power to spare.
- Digital voltage regulation for stability as appliance loads change
- 3-year limited warranty, lifetime drive warranty
- Gasoline or LP fueled
Specifications
| Model Number | QG 5500 |
| Alternate Model Number | A063B871 A063B873 A063B870 A063B869 |
| Generator Grade | Recreational |
| Generator Style | RV Generator |
| Engine/Motor Brand | Cummins |
| Engine Model | EH65V |
| Fuel Type | Gasoline or Propane |
| Starting System | Electric |
| Horsepower | 20.0 HP |
| Engine/Motor Type | Air-Cooled, OHV, 90-degree V-twin |
| Displacement | 653 cc |
| Engine RPM | 2400 RPM |
| Generator RPM | 2400 RPM |
| Fuel Cons. @ 50% Ld | 0.6 |
| Fuel Cons. @ 100% Ld | 0.9 |
| Fuel Induction System | Carburetor |
| Auto Choke | Yes |
| Lubrication System | Full Pressure |
| Engine Governor | Mechanical |
| Operational Volume (dB @10ft) | 69.0 |
| Operational Volume (dB @50ft) | 60.0 |
| Auto Fuel Shut-Off Valve | Yes |
| Muffler/Exhaust | Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model | Yes, generator is EVAP or evaporative emmissions compliant. Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system. |
| Altitude Affected | Yes |
| Vibration Isolators | Yes |
| Battery For Electric Start | Not Included |
| Warranty | 3 Year (Limited) |
| Weight (Lbs.) | 288 |
| Ship Weight (Lbs.) | 328 |
| Operating Weight (Lbs.) | 288 |
| Dimension No Wheel Kit | 22.2"W x 33.6"L x 16.7"H |
| Agency Compliance | CARB (California), EPA, National Park Approved |
| Surge Start Watts | 5,500.0 |
| Continuous Rated Watts | 5,500.0 |
| Prime Rating Watts | 5,500 |
| Phase | Single-Phase |
| Voltage | 120 |
| Rated Amps @ Min Volt (Commonly 120v) | 45.8 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 2 |
| Alternator | Brush |
| Voltage Regulation | 1.1% |
| Voltage Regulation Type | Digital |
| Frequency Regulation | < 5% |
| Circuit Breakers | 30 Amp/20 Amp |
| Insulation | Class H |
Package Contents
Cummins Onan QG 5500 Gas or Propane Generator
User's manual
Warranty
This item comes with a 3 year factory warranty.
