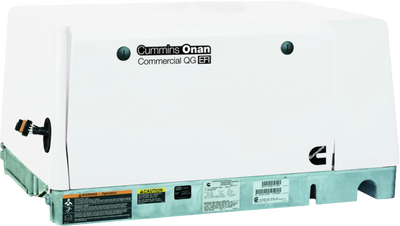

Cummins Onan QG 5500 5.5kW Generator 5.5HGJAD-2274+ Commercial Mobile Gas Single Phase 120 Volt Air Cooled EVAP New

Cummins Onan QG 5500 5.5kW Generator 5.5HGJAD-2274+ Commercial Mobile Gas Single Phase 120 Volt Air Cooled EVAP New

Product Overview

The Cummins Onan 5.5HGJAD is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty.


**Evaporative control model required for applications using a fuel tank separate from the propulsion engine
**Efi units do not include fuel pump – must order kit 541-1002
vendor logo
divider
authorized dealer
checkmark

2 year factory warranty

checkmark

Brand new in box

checkmark

Gas powered

checkmark

Authorized Cummins dealer

Features

  • EVAP Control Model: Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system
  • 4-cycle Air-Cooled, OHV, 90-degree V-twin engine
  • Meets full load capability at 120° F (50° C) ambient conditions
  • High performance motor-starting capability for heavy loads.
  • Completely enclosed with muffler, quick and easy to install.
  • EFI (electronic fuel injection)
  • Start and run without AC output - engine run only
  • Requires Cummins Onan EFI Fuel Pump Kit "541-1002" (Not Included)

Specifications

Battery For Electric Start Not Included
Warranty 2 Year (Limited)
Weight (Lbs.) 288
Ship Weight (Lbs.) 328
Operating Weight (Lbs.) 288
Dimension No Wheel Kit 22.2"W x 33.6"L x 16.7"H
Agency Compliance CARB (California), EPA, National Park Approved
Surge Start Watts 5,500.0
Continuous Rated Watts 5,500.0
Prime Rating Watts 5,500
Phase Single-Phase
Voltage 120
Rated Amps @ Min Volt (Commonly 120v) 45.8
Frequency 60 Hz
Power Factor 1.0
Poles 2
Alternator Brush
Voltage Regulation 1.7%
Voltage Regulation Type Digital
Circuit Breakers 30 Amp
Insulation Class H
Manufacturer Cummins
SKU 5.5HGJAD-2274
Model Number QG 5500
Generator Grade Commercial
Generator Style Commercial Mobile Generator
Engine/Motor Brand Cummins
Engine Model EH65V
Fuel Type Gasoline
Starting System Electric
Horsepower 20.0 HP
Engine/Motor Type Air-Cooled, OHV, 90-degree V-twin, Electronic Fuel Injected
Displacement 653 cc
Engine RPM 2400 RPM
Generator RPM 2400 RPM
Fuel Tank Add @ Checkout
Fuel Cons. @ 50% Ld 0.6
Fuel Cons. @ 100% Ld 1.0
Fuel Induction System Electronic Fuel Injection
Engine Governor Electronic
Operational Volume (dB @10ft) 69.0
Auto Fuel Shut-Off Valve Yes
Muffler/Exhaust Enclosed Spark-Arrestor
Evaporative Emissions Control Equipped Model Yes, generator is EVAP or evaporative emissions compliant. Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system.
Altitude Affected Yes
Vibration Isolators Coil Spring

Package Contents

Cummins Onan QG 5500 Gas Generator

User's manual

Warranty
