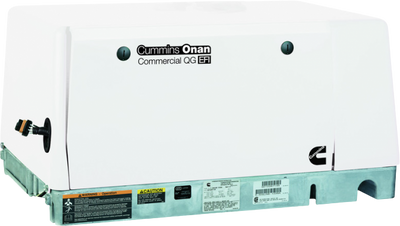

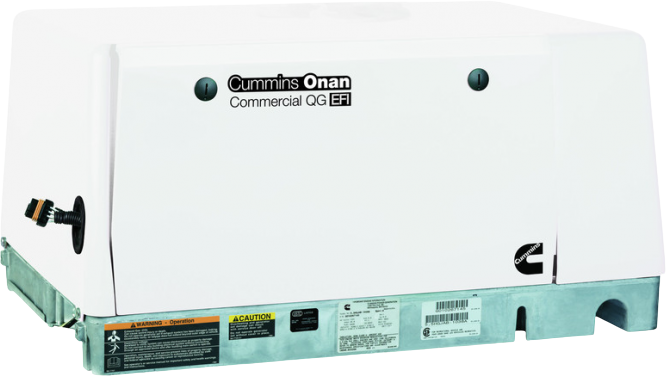

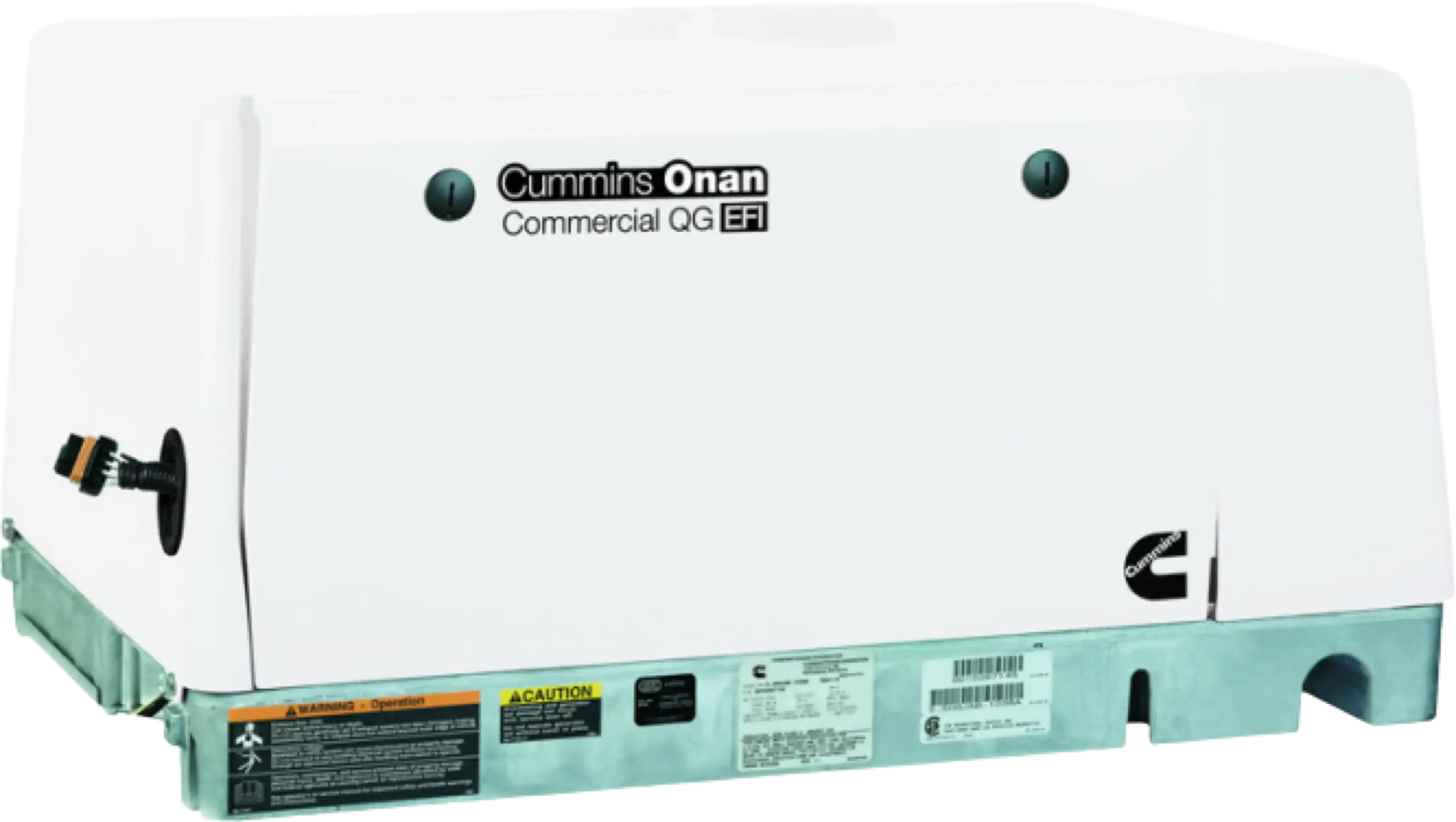

Cummins Onan QG 5500 5.5kW Generator Commercial Mobile Propane or Gas Single Phase 120 Volt Air Cooled New

Manufacturer: Cummins

SKU: A063B613

onan-quiet-gas_6

onan-quiet-gas_6

Fuel:

QTY

$ 5,635.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

The Cummins Onan 5.5HGJAE is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty.

+ Evaporative control model required for applications using a fuel tank separate from the propulsion engine.
vendor logo
divider
authorized dealer
checkmark

2 year factory warranty

checkmark

Brand new in box

checkmark

Propane or Gas powered

checkmark

Authorized Cummins dealer

Cummins Onan QG 5500 5.5kW Generator Commercial Mobile Propane or Gas Single Phase 120 Volt Air Cooled New

Cummins Onan QG 5500 5.5kW Generator Commercial Mobile Propane or Gas Single Phase 120 Volt Air Cooled New

Features

  • 4-cycle Air-cooled, single cylinder engine for reliable consistent power
  • Integral USDA Forest Service-approved spark-arrestor muffler.
  • Self-diagnostic capability to simplify troubleshooting.
  • Completely enclosed with muffler, quick and easy to install.
  • Sound-attenuated housing
  • 2-year limited warranty
  • EVAP Control Model: Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system (Gas Model)

Specifications

Vibration IsolatorsCoil Spring
Battery For Electric StartNot Included
Warranty2 Year (Limited)
Weight (Lbs.)288
Ship Weight (Lbs.)328
Operating Weight (Lbs.)288
Dimension No Wheel Kit22.2"W x 33.6"L x 16.7"H
Agency ComplianceCARB (California), EPA, National Park Approved
Surge Start Watts5,500.0
Continuous Rated Watts5,500.0
Prime Rating Watts5,500
PhaseSingle-Phase
Voltage120, 240
Rated Amps @ Min Volt (Commonly 120v)45.8
Rated Amps @ Max Volt (Commonly 240v 1-Phase)22.9
Frequency60 Hz
Power Factor1.0
Poles2
AlternatorBrush
Voltage Regulation1.7%
Voltage Regulation TypeDigital
Circuit Breakers30 Amp
InsulationClass H
ManufacturerCummins
SKU5.5HGJAE-2144 (A063B614), 5.5HGJAE-6757 (A063B613)
Model NumberQG 5500
Alternate Model NumberA063B614, A063B613
Generator GradeCommercial
Generator StyleCommercial Mobile Generator
Engine/Motor BrandCummins
Fuel TypeLP (Propane) (A063B614), Gasoline (A063B613)
Starting SystemElectric
Horsepower20.0 HP
Engine/Motor TypeAir-Cooled, OHV, 90-degree V-twin
Displacement653 cc
Engine RPM2400 RPM
Generator RPM2400 RPM
Fuel TankAdd @ Checkout
LP Consumption 100% Ld1.1
Fuel Induction SystemCarburetor
Engine GovernorMechanical
Operational Volume (dB @10ft)69.0
Auto Fuel Shut-Off ValveYes
Muffler/ExhaustEnclosed Spark-Arrestor
Evaporative Emissions Control Equipped Model ( A063B614 )No, generator is NON-EVAP and is not evaporative emissions compliant. Your generator application/installation requires its own evaporative emissions standards compliance measures.
Evaporative Emissions Control Equipped Model ( A063B613 )Yes, generator is EVAP or evaporative emissions compliant. Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system.
Altitude AffectedYes

Package Contents

Cummins Onan QG 5500 Gas or LP Generator

User's manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 2 year factory warranty.

Customer Reviews (1)

Customer Reviews

08/13/2023
SCOTT SOLUM
Great Quality

It was easy to install just took a couple of evenings. I also installed a separate battery with a trickle charger in case thew house batteries went dead we can still start it.
