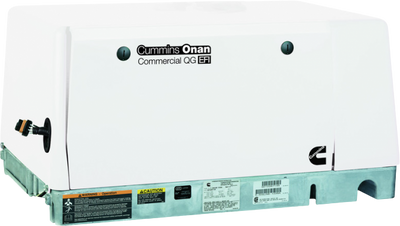

Cummins Onan QG 5500 5.5kW Generator Commercial Mobile Propane or Gas Single Phase 120 Volt Air Cooled New
Manufacturer: Cummins
SKU: A063B613
QTY
or
(888) 999-1522
$ 6,146.97
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 1 left in stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships same or next day if ordered by 2PM EST
Extended Warranty
Factory Warranty
- This item comes with a 2 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Cummins Onan QG 5500 5.5kW Generator Commercial Mobile Propane or Gas Single Phase 120 Volt Air Cooled New
Product Overview
2 year factory warranty
Brand new in box
Propane or Gas powered
Authorized Cummins dealer
Features
- 4-cycle Air-cooled, single cylinder engine for reliable consistent power
- Integral USDA Forest Service-approved spark-arrestor muffler.
- Self-diagnostic capability to simplify troubleshooting.
- Completely enclosed with muffler, quick and easy to install.
- Sound-attenuated housing
- 2-year limited warranty
- EVAP Control Model: Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system (Gas Model)
Specifications
| Vibration Isolators | Coil Spring |
| Battery For Electric Start | Not Included |
| Warranty | 2 Year (Limited) |
| Weight (Lbs.) | 288 |
| Ship Weight (Lbs.) | 328 |
| Operating Weight (Lbs.) | 288 |
| Dimension No Wheel Kit | 22.2"W x 33.6"L x 16.7"H |
| Agency Compliance | CARB (California), EPA, National Park Approved |
| Surge Start Watts | 5,500.0 |
| Continuous Rated Watts | 5,500.0 |
| Prime Rating Watts | 5,500 |
| Phase | Single-Phase |
| Voltage | 120, 240 |
| Rated Amps @ Min Volt (Commonly 120v) | 45.8 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) | 22.9 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 2 |
| Alternator | Brush |
| Voltage Regulation | 1.7% |
| Voltage Regulation Type | Digital |
| Circuit Breakers | 30 Amp |
| Insulation | Class H |
| Manufacturer | Cummins |
| SKU | 5.5HGJAE-2144 (A063B614), 5.5HGJAE-6757 (A063B613) |
| Model Number | QG 5500 |
| Alternate Model Number | A063B614, A063B613 |
| Generator Grade | Commercial |
| Generator Style | Commercial Mobile Generator |
| Engine/Motor Brand | Cummins |
| Fuel Type | LP (Propane) (A063B614), Gasoline (A063B613) |
| Starting System | Electric |
| Horsepower | 20.0 HP |
| Engine/Motor Type | Air-Cooled, OHV, 90-degree V-twin |
| Displacement | 653 cc |
| Engine RPM | 2400 RPM |
| Generator RPM | 2400 RPM |
| Fuel Tank | Add @ Checkout |
| LP Consumption 100% Ld | 1.1 |
| Fuel Induction System | Carburetor |
| Engine Governor | Mechanical |
| Operational Volume (dB @10ft) | 69.0 |
| Auto Fuel Shut-Off Valve | Yes |
| Muffler/Exhaust | Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model ( A063B614 ) | No, generator is NON-EVAP and is not evaporative emissions compliant. Your generator application/installation requires its own evaporative emissions standards compliance measures. |
| Evaporative Emissions Control Equipped Model ( A063B613 ) | Yes, generator is EVAP or evaporative emissions compliant. Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system. |
| Altitude Affected | Yes |
Package Contents
Cummins Onan QG 5500 Gas or LP Generator
User's manual
Warranty
This item comes with a 2 year factory warranty.
