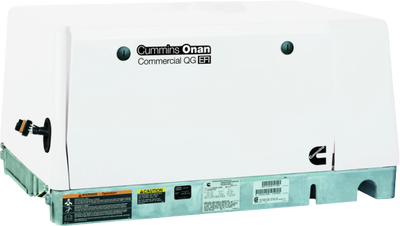

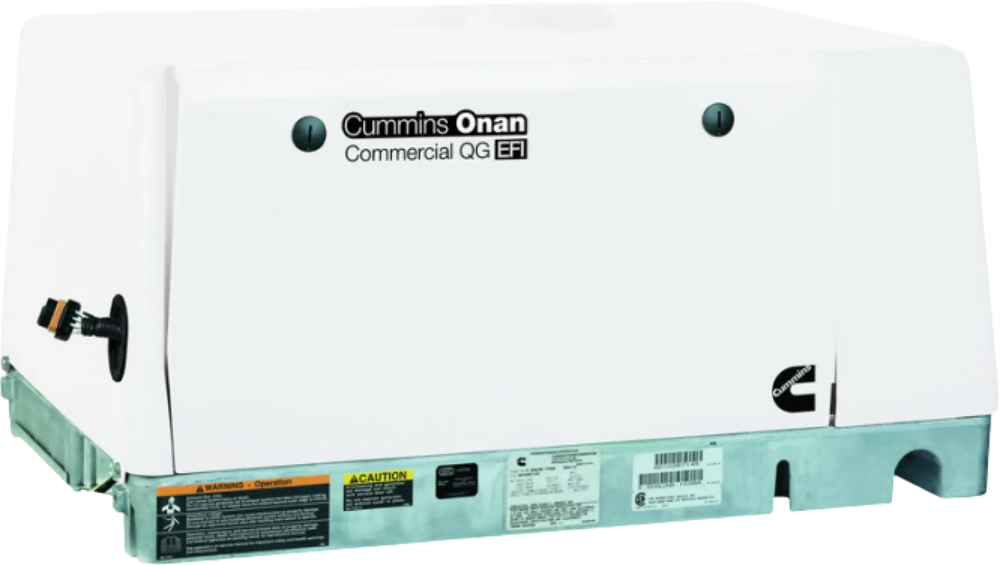

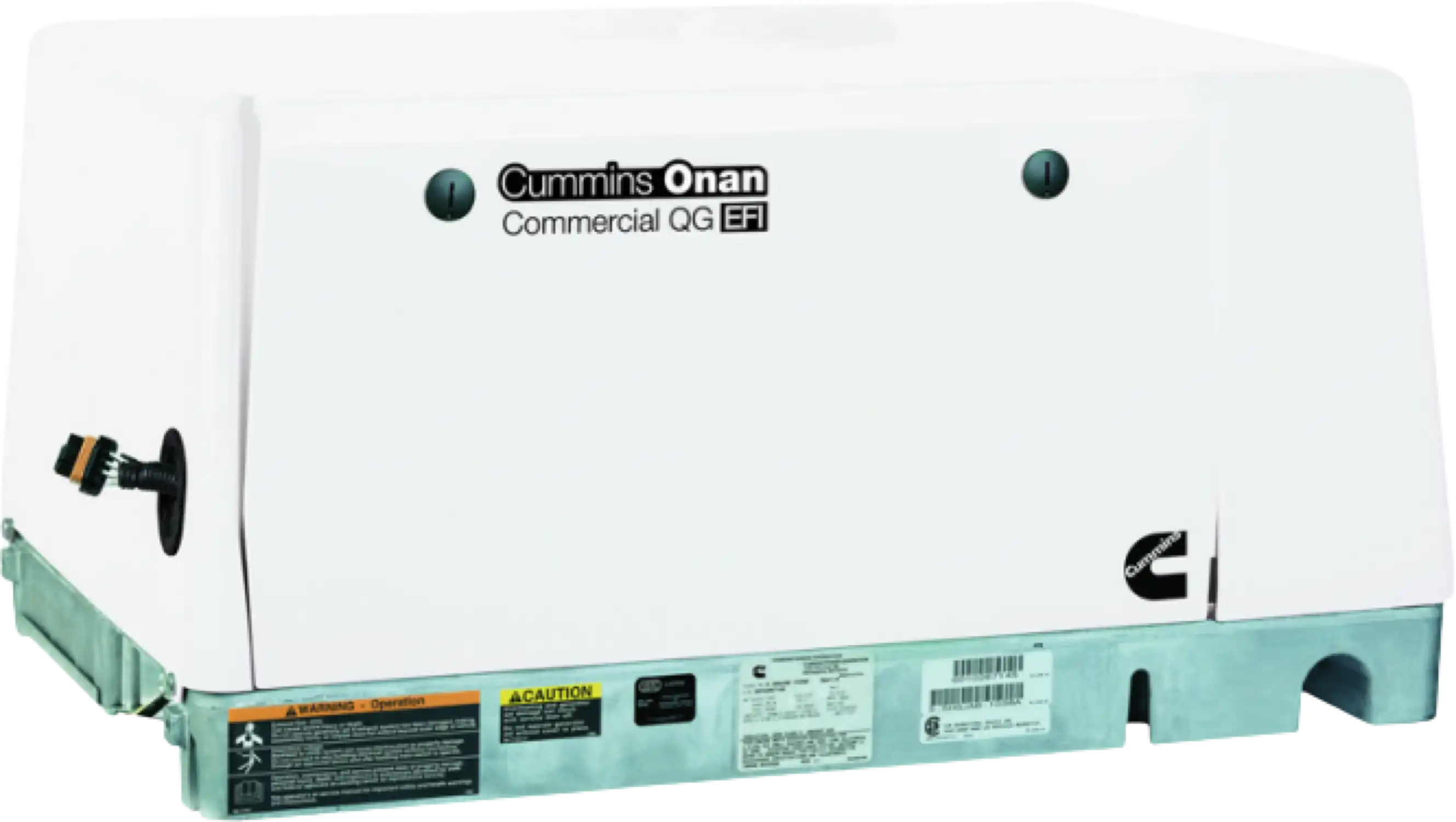

Cummins Onan QG 7000 7kW Generator 7HGJAD-6760+ Commercial Mobile Gas Single Phase 120/240 Volt Air Cooled EVAP New
Manufacturer: Cummins
SKU: A063B838
QTY
(888) 999-1522
$ 7,934.32
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR $50 OFF: CRV COPY
Ships in (est) 3-5 business days
Extended Warranty
Factory Warranty
- This item comes with a 2 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Cummins Onan QG 7000 7kW Generator 7HGJAD-6760+ Commercial Mobile Gas Single Phase 120/240 Volt Air Cooled EVAP New
Product Overview
2 year factory warranty
Brand new in box
Diesel powered
Authorized Cummins dealer
Features
- EVAP Control Model: Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system
- 4-cycle Air-cooled, single cylinder engine for reliable consistent power
- EFI provides improved hot and cold start capability.
- Digital regulation for voltage stability as loads change.
- Completely enclosed with muffler, quick and easy to install.
- Electronic governor for voltage stability and frequency control.
- 2-year limited warranty
- Requires Cummins Onan EFI Fuel Pump Kit "541-1002" (Not Included)
Specifications
| Battery For Electric Start | Not Included |
| Warranty | 2 Year (Limited) |
| Weight (Lbs.) | 288 |
| Ship Weight (Lbs.) | 328 |
| Operating Weight (Lbs.) | 288 |
| Dimension No Wheel Kit | 22.2"W x 33.6"L x 16.7"H |
| Agency Compliance | CARB (California), EPA, National Park Approved |
| Surge Start Watts | 7,000.0 |
| Continuous Rated Watts | 7,000.0 |
| Prime Rating Watts | 7,000 |
| Phase | Single-Phase |
| Voltage | 120, 240 |
| Rated Amps @ Min Volt (Commonly 120v) | 58.3 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) | 29.1 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 2 |
| Alternator | Brush |
| Voltage Regulation | 1.7% |
| Voltage Regulation Type | Digital |
| Circuit Breakers | 30 Amp |
| Insulation | Class H |
| Manufacturer | Cummins |
| SKU | 7.0HGJAD-6760 |
| Model Number | QG 7000 |
| Alternate Model Number | A063B838 |
| Generator Grade | Commercial |
| Generator Style | Commercial Mobile Generator |
| Engine/Motor Brand | Cummins |
| Engine Model | EH65V |
| Fuel Type | Gasoline |
| Starting System | Electric |
| Horsepower | 20.0 HP |
| Engine/Motor Type | Air-Cooled, OHV, 90-degree V-twin, Electronic Fuel Injected |
| Displacement | 653 cc |
| Engine RPM | 2880 RPM |
| Generator RPM | 2880 RPM |
| Fuel Tank | Add @ Checkout |
| Fuel Cons. @ 50% Ld | 0.7 |
| Fuel Cons. @ 100% Ld | 1.2 |
| Fuel Induction System | Electronic Fuel Injection |
| Engine Governor | Electronic |
| Operational Volume (dB @10ft) | 70.0 |
| Auto Fuel Shut-Off Valve | Yes |
| Muffler/Exhaust | Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model | Yes, generator is EVAP or evaporative emmissions compliant. Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system. |
| Altitude Affected | Yes |
| Vibration Isolators | Coil Spring |
Package Contents
Cummins Onan QG 7000 Gas Generator
User's manual
Warranty
This item comes with a 2 year factory warranty.
