Cummins Onan SD20 20kW Generator 20HDKDB-01 Commercial Mobile Diesel Single Phase 120V/240V New
Manufacturer: Cummins
SKU: A066T979
QTY
or
(888) 999-1522
$ 30,419.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

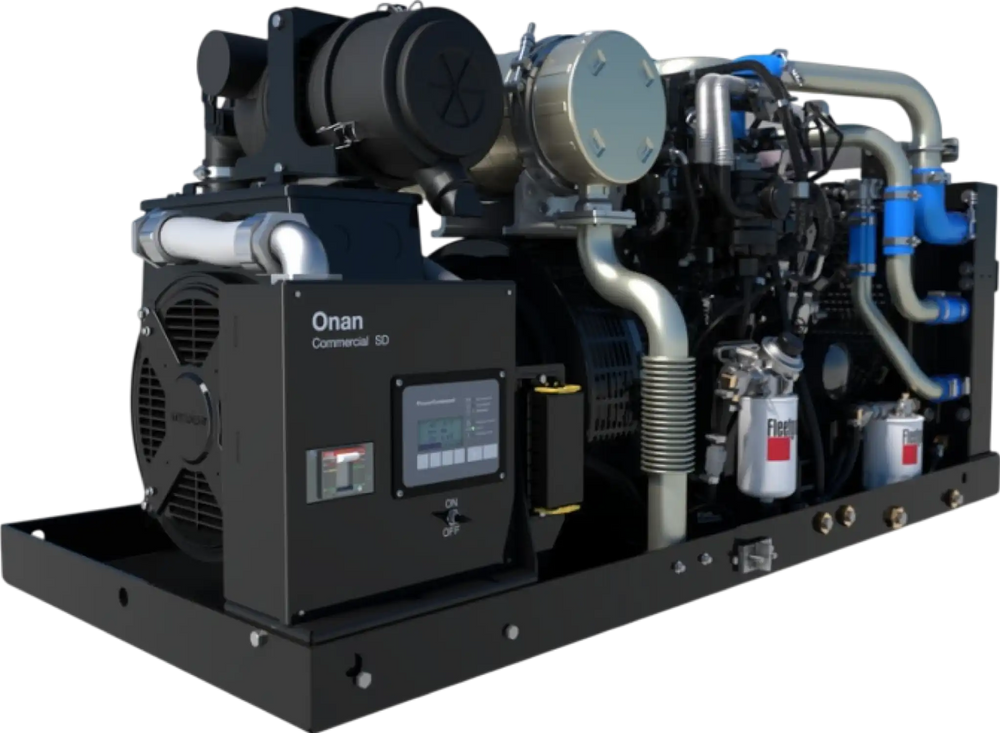

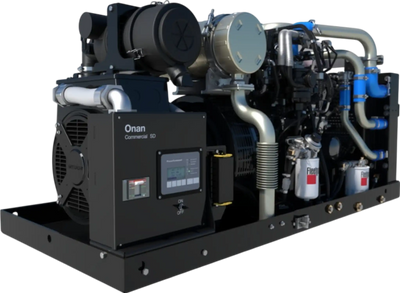

Cummins Onan SD20 20kW Generator 20HDKDB-01 Commercial Mobile Diesel Single Phase 120V/240V New
Product Overview
The Standard Diesel (SD) series of generators are designed for tough commercial applications that do not require an enclosure. The Onan SD20 is the latest edition to the series expanding the power range up to 20kW. Tight chassis applications such as mobile command centers, mobile medical vehicles, and emergency response fleets will appreciate the flexibility of multiple interface connection points and its compact size. The SD20 is the culmination of over 100 years of Cummins power generation experience.
2 year factory warranty
Brand new in box
Diesel powered
Authorized Cummins dealer
Features
- Tier 4 emissions compliance without requiring diesel exhaust fluid (DEF)
- Powerful 36 HP engine
- Low vibration for smooth operation
- Cross-flow radiator provides increased cooling efficiency
- Accepts 100% rated load in a single step
- 3-cylinder diesel engine, radiator cooled
- Automatic timed glow plugs for quick easy start
- Maintenance free electronic governor
- Integral enclosed muffler
- Integral 4-point vibration isolation system
- Relocatable bulkhead fuel and battery connections
- Circuit breaker connection
- Electric fuel pump, long-life fuel filter
- Water resistant controls
Specifications
| Item Number | A066T979 |
| Model Number | 20HDKDB-01 |
| Model Name | SD 20 |
| Fuel Type | Diesel |
| Voltage | 120V/240V, Single Phase |
| Frequency | 60 Hz |
| RPM | 1800 |
| Fan | Pusher |
| Rated Watts | 20000 Watts |
| Fuel Consumption @ 50% Load | 0.7 gallons/hr |
| Fuel Consumption @ 100% Load | 1.44 gallons/hr |
| Rated Amps | 83 Amps |
| Decibel Rating @ 10 ft. (3m) | 79 dB(A) |
| Circuit Breaker Size | 3 pole, 100 A |
| Engine Brand | Kubota |
| Starting System | Remote, 12-Volt |
| Displacement | 1826 CC |
| Dimensions (L x W x H) | 58.3" x 26.3" x 28.2" |
| Weight | 1035 lbs. |
Package Contents
Cummins Onan SD20 20kW Diesel Generator
User Manual
Warranty
This item comes with a 2 year factory warranty.
