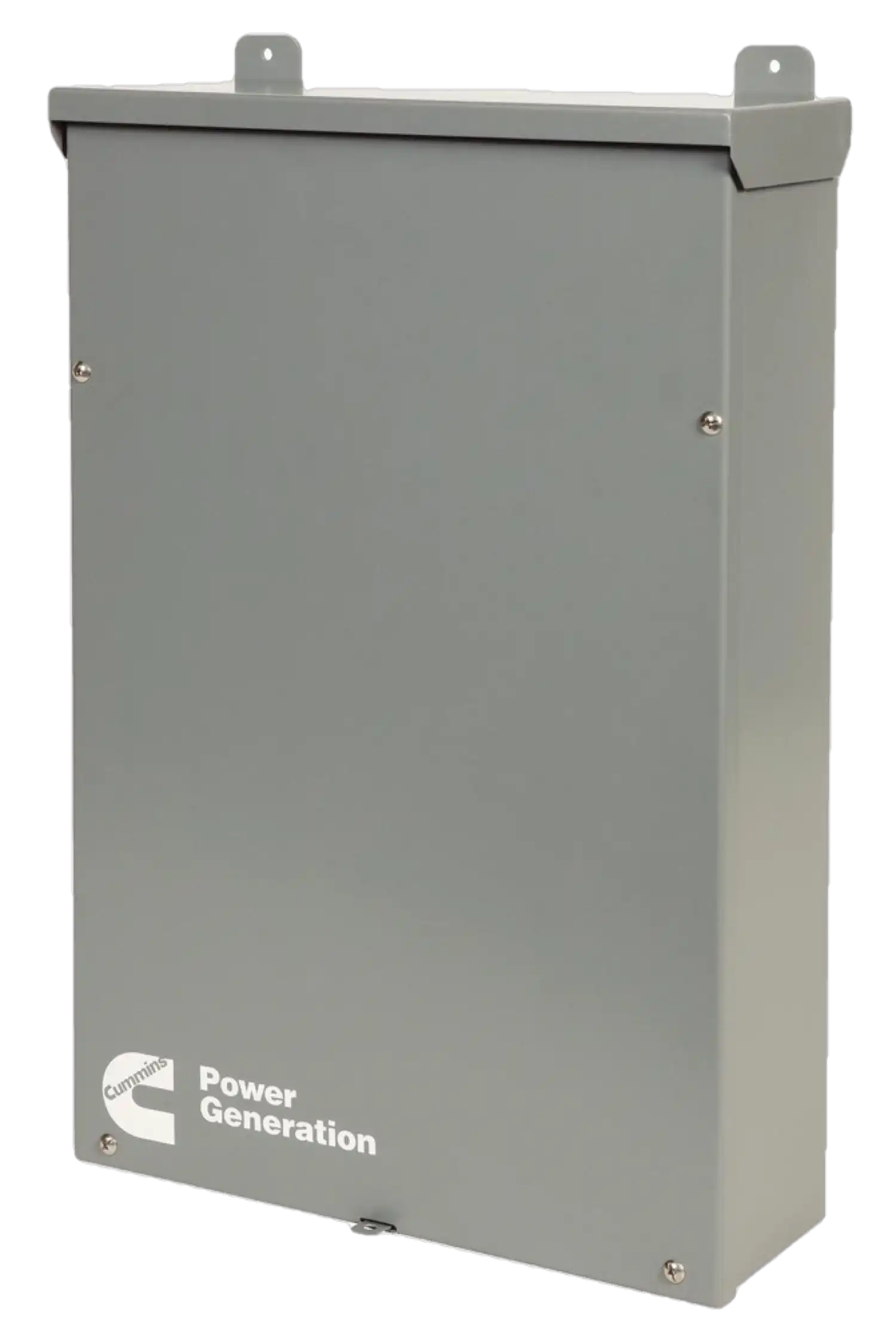

Cummins RA-200-SE 200 Amp Service Rated Automatic Transfer Switch New

  • Manufacturer: Cummins
  • SKU: A045P697
  •   Share
  • Cummins RA-200-SE 200 Amp Service Rated Automatic Transfer Switch New
Cummins RA-200-SE 200 Amp Service Rated Automatic Transfer Switch New

  • Cummins RA-200-SE 200 Amp Service Rated Automatic Transfer Switch New

$ 749.00
+
FREE Shipping
This item ships for free. Freight shipments include liftgate at no additional charge.
OR

bread
Pay Over Time

Select Bread as your payment at checkout


In Stock
Ships Same Day
If ordered by 3PM ET

Extended Warranty

Factory Warranty
$0 (
IncludedFactory Warranty
)

Warranty 0, line 1312


Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in! Please click add to cart.
  Exceptional Customer Service   Manufacturer Direct
FactoryPure BBB Business Review Shopper Award



To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct

Cummins RA-200-SE 200 Amp Service Rated Automatic Transfer Switch New
Overview
Features
Specifications
Warranty
Manuals
Reviews

The RA Automatic Transfer Switch is integrated with the RS series genset. These products are Listed to UL 1008, the Standard for Transfer Switch Safety. The switch and generator set combination is specifically designed for a simplified, quicker installation. These UL 1008 switches are suitable for standby power systems in residential and light commercial applications. These RA products adhere to National Electrical Code (NEC) and National Fire Protection Association (NFPA) requirements. The RA transfer switch monitors utility power 24 hours a day and 7 days a week. When utility power becomes unsatisfactory or fails; the generator set is signaled to start, then automatically transfers the load. When stable utility voltage returns, the transfer switch will automatically switch electrical load from the generator to the utility. No action is required by the home owner.
Overview (Right Column)
5 year factory warranty
Brand new in box
Fast processing and free shipping
Authorized Cummins dealer

 Outlets
Features (Left Column)
  • Mechanically interlocked contactor - Long-life, high pressure, silver alloy contact resists burning and pitting with a powerful and economical solenoid driving the mechanism
  • UL 489 Listed circuit breaker
  • Solid bus bar connection - Between circuit breaker and transfer switch
Features (Right Column)
  • Neutral and ground bar - Fully rated, bonding jumper on neutral and ground, silver plated copper ground and neutral bus
  • Ease of connection - solderless screw type terminals for external power connections
Product Specifications (Left Column)
Manufacturer Cummins
UL Listed
 Yes
Voltage 120/240 - Single Phase
Enclosure NEMA 3R Indoor/Outdoor
Type

Automatic Transfer Switch
Dimensions

23.3"H X 7.2"D X 19.8"W
Weight 58 lbs
Product Specifications (Right Column)
Model RA-200-SE
Switch Amps 200
Switch Circuits Whole House Switch
ATS Poles 2
Consumer Warranty 5-Year Limited Warranty ATS
WARRANTY

This item comes with a 5 year factory warranty.
