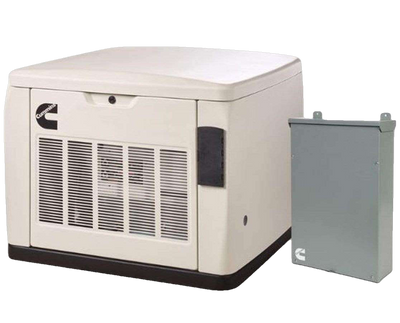

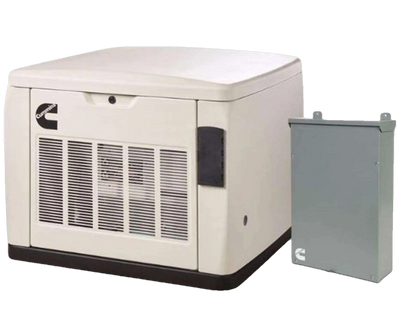

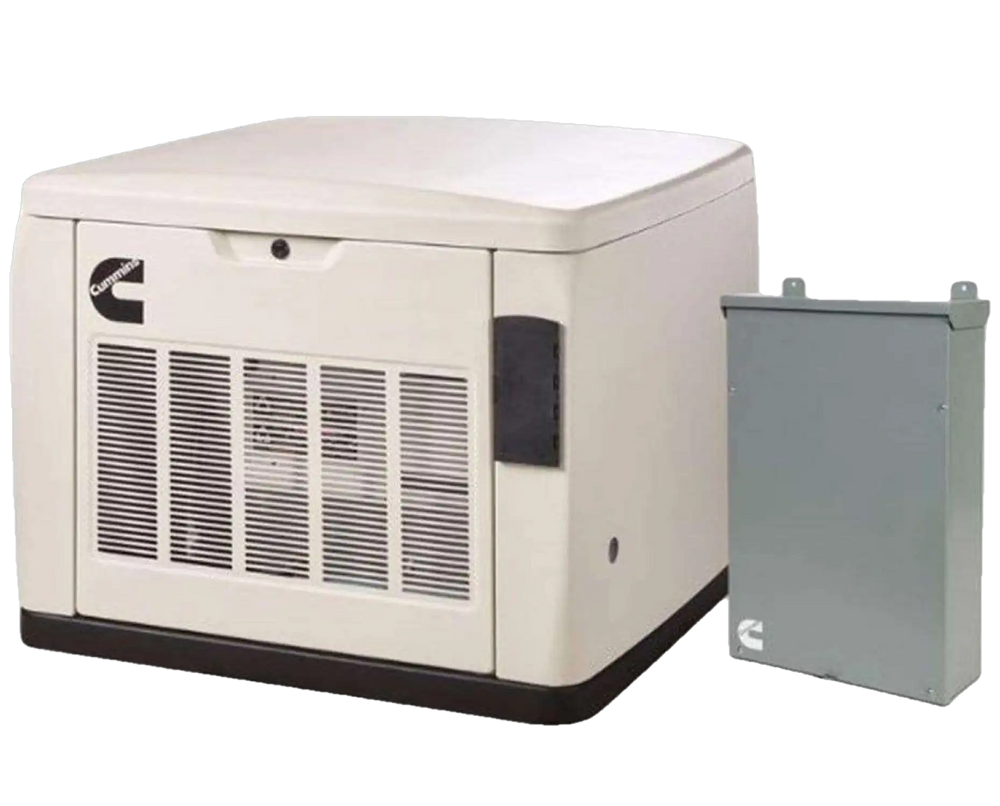

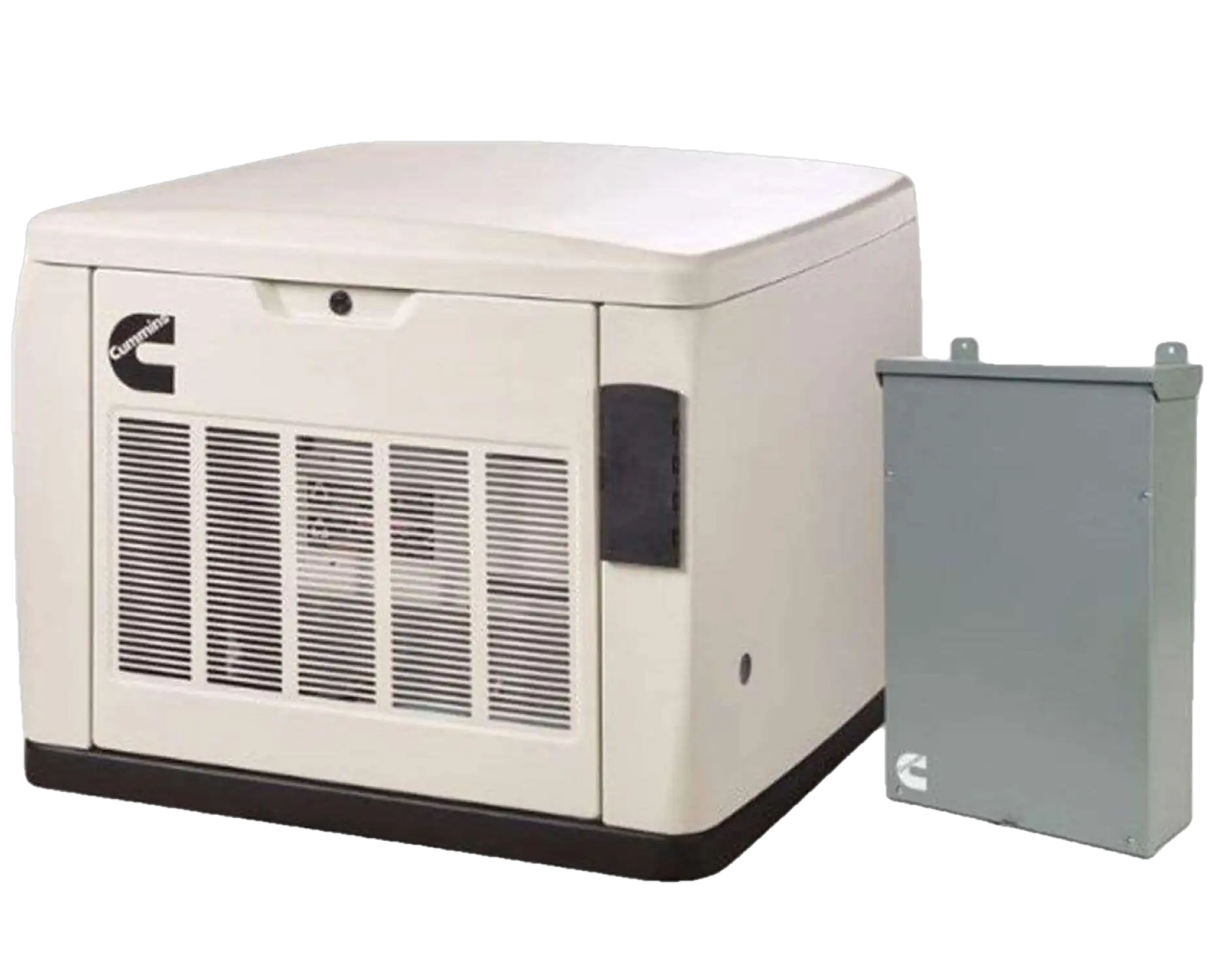

Cummins RS20AC A061C602 20kW WiFi Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch Scratch and Dent

Manufacturer: Cummins

SKU: A061C602-SD

  • Cummins RS20AC A061C602 20kW WiFi Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch Scratch and Dent
  • Cummins RS20AC A061C602 20kW WiFi Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch Scratch and Dent

QTY

$ 5,499.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

The RS20AC is a home standby generator permanently connected to your house by an automatic transfer switch. The generator operates on your home's existing natural gas (18kW) or LP Gas (20kW) supply. Access the generator controller on any smartphone, laptop, tablet, or desktop computer. Operate the generator manually, program the exercise cycle, view status and reports, or schedule maintenance.



The A045P697 Automatic Transfer Switch (ATS) has a NEMA 3R rating for indoor and outdoor use that installs between the utility meter and a typical 200-amp main service panel. The generator controller monitors the utility supply 24 / 7 and automatically starts the generator the moment an outage is detected.



Scratch and dent units have not been used, but may have physical damage.  They may have any number of scratches, cracks, dents, or other imperfections.  They come with a full factory warranty.

vendor logo
divider
authorized dealer
checkmark

Brand new scratch and dent

checkmark

5 year factory warranty

checkmark

Works with liquid propane and natural gas

checkmark

Free shipping

checkmark

Authorized Cummins dealer

Cummins RS20AC A061C602 20kW WiFi Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch Scratch and Dent

Cummins RS20AC A061C602 20kW WiFi Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch Scratch and Dent

Features

  • Cummins 20 kilowatt Quiet Connect Series Home Standby Generator.
  • Automatic Transfer Switch for 24 / 7 independent operation.
  • Remote Internet Access to the Quiet Connect Controller and Generator.
  • User-Programmable Exercise including “Crank-Only” Mode.
  • Powered by Cummins QSJ999G engine.
  • A patented “Crank-Only” mode reduces wear and tear during the exercise cycle.
  • WiFi included - Check generator status, program exercise periods, even manually start and stop the generator using the Cloud Connect Smartphone App on phones, tablets, or computers.
  • Starts and runs a 5-ton A/C while accepting a full household load.
  • Field Selectable for Natural Gas or Propane Fuel.
  • Rated for installation as close as 18-inches to the home.
  • Extremely Quiet Operation – 65 dB or less.
  • Operates at 0 degrees out of the box. Cold weather kits add reliable operation for extreme climates.
  • Intelligent Load Management for up to four loads such as Air Conditioners.

Specifications

VOLTAGE120/240 SINGLE PHASE
FREQUENCEY60 HERTZ
ALTERNATORBRUSH
AUTO VOLTAGE REGULATIONYES
RATED WATTS20000 WATTS
FUEL TYPELP/NATURAL GAS
NATURAL GAS POWER CAPACITY18000 WATTS
PROPANE POWER CAPACITY20000 WATTS
NG FUEL CONSUMPTION @ 50%205FT³/HR
NG FUEL CONSUMPTION @ 100%300FT³/HR
LP FUEL CONSUMPTION @ 50%1.9 GALLONS/HR
LP FUEL CONSUMPTION @ 100%3.2 GALLONS/HR
RATED AMPS75 (NG) & 83.3 (LPV) AMPS
DECIBEL RATING @ 7M65dB
HOUR METERYES
VOLTAGE METERYES
TRANSFER SWITCHAUTOMATIC
ENCLOSUREALUMINUM
CIRCUIT BREAKER SIZE100 AMPS
COOLING SYSTEMAIR COOLED
UL LISTEDYES
GRADE TYPEEMERGENCY
ENGINE BRANDCUMMINS ONAN
STARTING SYSTEM12V AUTO START
ENGINE SIZE999 CC
ENGINE RPM3600 RPM
LOW OIL ALERT/SHUTDOWNYES
WEIGHT540 LBS
MADE IN USAYES
PRODUCT LENGTH34.1"
PRODUCT WIDTH36"
PRODUCT HEIGHT27.3"

Package Contents

20kW GENERATOR

200A SE-RATED ATS RS20AC (AUTOMATIC TRANSFER SWITCH)

ALUMINUM ENCLOSURE

Warranty

vendor logo
divider
authorized dealer

This item comes with a 5 limited year factory warranty.
