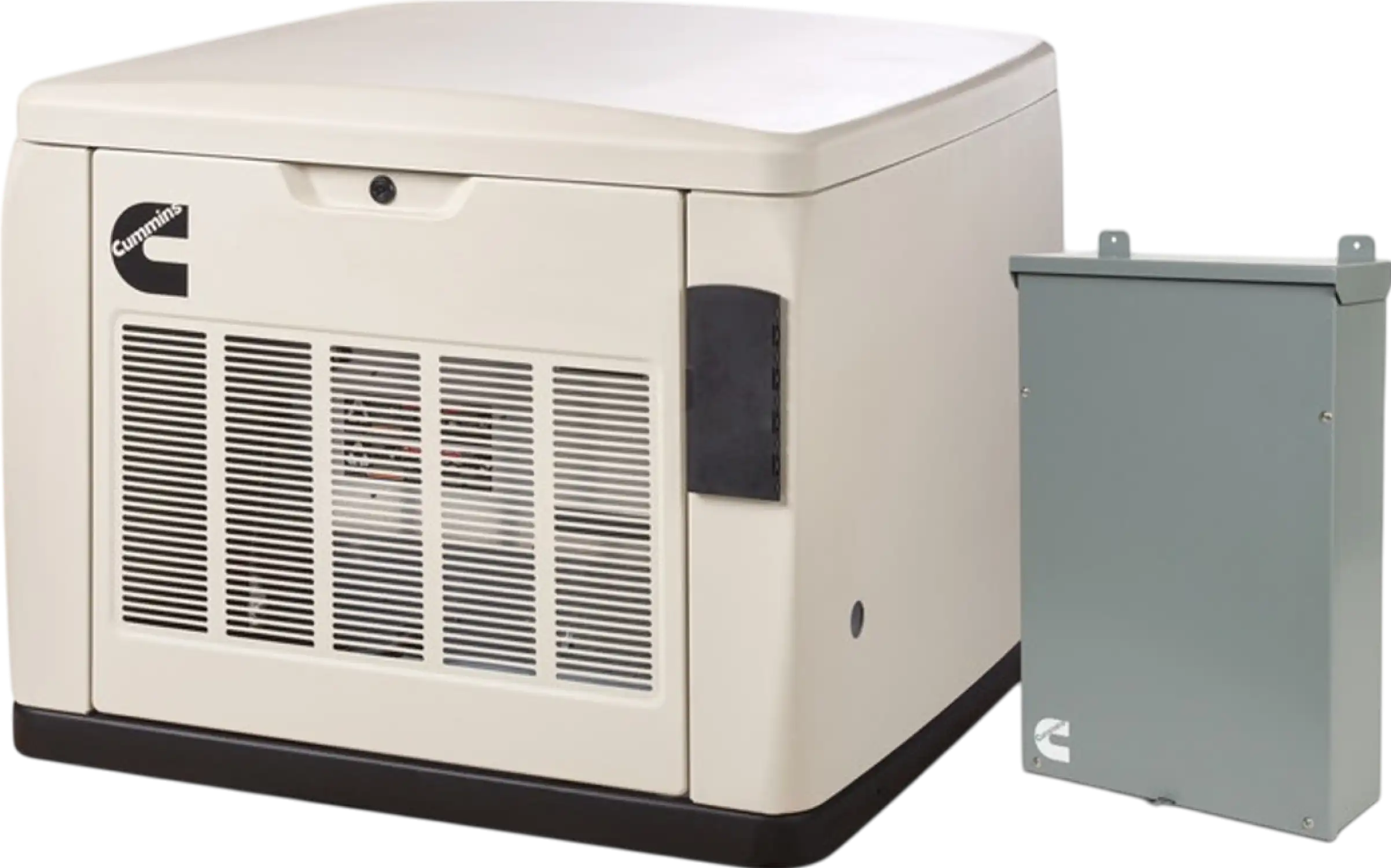

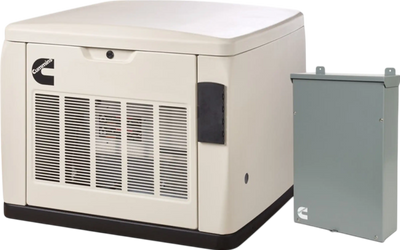

Cummins RS20ACE 20kW Quiet Connect Extreme Weather 1 Phase 120/240V Standby Generator with 200A Transfer Switch A071Z395 New

Manufacturer: Cummins

SKU: A071Z395

Featured image for product 8004003496125
Featured image for product 8004003496125

Series Option





QTY

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

$ 6,964.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or


in stock checkmark

In Stock

delivery truck icon

Ships (est) 3-5 business days

Manufacturer Direct Shipping

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Cummins RS20ACE 20kW Quiet Connect Extreme Weather 1 Phase 120/240V Standby Generator with 200A Transfer Switch A071Z395 New

Cummins RS20ACE 20kW Quiet Connect Extreme Weather 1 Phase 120/240V Standby Generator with 200A Transfer Switch A071Z395 New

Product Overview

The Cummins RS20ACE Quiet Connect Standby Generator is designed to operate in extreme cold weather and kicks on with the help of the included 200A automatic transfer switch to supply whole home power within seconds. Power your A/C, security system, refrigerators, computers, and more even when grid power fails. This generator runs on natural gas or propane, and features an Intelligent Load Management System to manage up to 4 loads simultaneously.


Application & Warranty Notice:

“For use and warranted in EPA Stationary Emergency application. Not EPA certified or warranted for non-emergency, off-grid or prime power applications.”

vendor logo
divider
authorized dealer
checkmark

5 year factory warranty

checkmark

Brand new in box

checkmark

Works with Liquid Propane or Natural Gas

checkmark

Authorized Cummins dealer

Features

  • Cummins Quiet Connect™ Series 20kW Air-Cooled Standby Generator Package: Improved design, exercise modes, load management & monitoring.
  • Includes 200-Amp Service Entrance Rated Automatic Transfer Switch: Installs between main meter & service panel for faster & less costly installation.
  • Extreme Cold Weather Equipped: Operates in cold weather with performance down to -40 °F.
  • Weather Protective Aluminum/Steel Sound Enclosure: Can be installed* within 18" of a build (NFPA 37) - Always check local building codes. Sound dampening engineering limits noise level to a low 65dB(A) @ 7M.
  • 999cc Cummins Air-Cooled V-Twin OHV Engine: Field-selectable, runs on ultra efficient natural gas or LP (vapor). Designed to operate down to 0 F; Cold weather accessories available for colder climates.
  • < 5% THD (Total Harmonic Distortion): Clean power that won't damage your electronic devices.
  • Patented "Crank Only" Exercise Mode: Provides diagnostics without running engine for less wear and lower fuel costs. Allows user to select time, date and frequency of exercise.
  • Load Management Capability (Requires Load Management Kit - Sold Separately): Maximizes generator power by intelligently managing up to 2 electrical loads.
  • Cummins Connect Cloud For Remote Monitoring: Monitor, exercise and manually run the generator. Use your computer, tablet or phone for maximum monitoring flexibility.

Specifications

Rated Watts 20,000W
Fuel Type LP / Natural Gas
Voltage 120/240V, 60Hz
Phase Single Phase
NG Power Capacity 18,000W
LP Power Capacity 20,000W
NG Fuel Consumption @ 50% Load 205 ft³/hr
LP Fuel Consumption @ 50% Load 1.9 gallons/hr
Rated Amps 75 (NG) / 83.3 (LP)
Decibel Rating 65 dB @ 23ft
Hour Meter Yes
Voltage Meter Yes
Transfer Switch Included Yes
Transfer Switch Automatic, 200A
Battery Included No
Enclosure Aluminum
Circuit Breaker Size 100
A/C Ton Rating 5 Tons
Transfer Switch Style Service Disconnect
ATS Load Prioritizing Built-In
ATS Service Disconnect Yes
Cooling System Air Cooled
UL Listed Yes
Engine Starting System 12V Auto Start
Engine Displacement 999cc
Engine RPM 3600 RPM
Low Oil Alert/Shutdown Yes
Product Dimensions 34.1" x 36" x 27.3"
Product Weight 540 lbs

Package Contents

Cummins RS20ACE 20kw Generator

Automatic Transfer Switch

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 5 year factory warranty.

Manuals & Documentation
