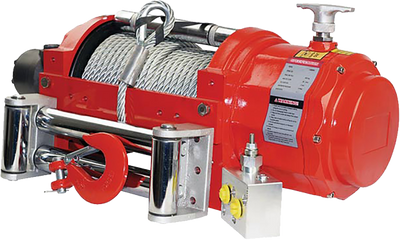

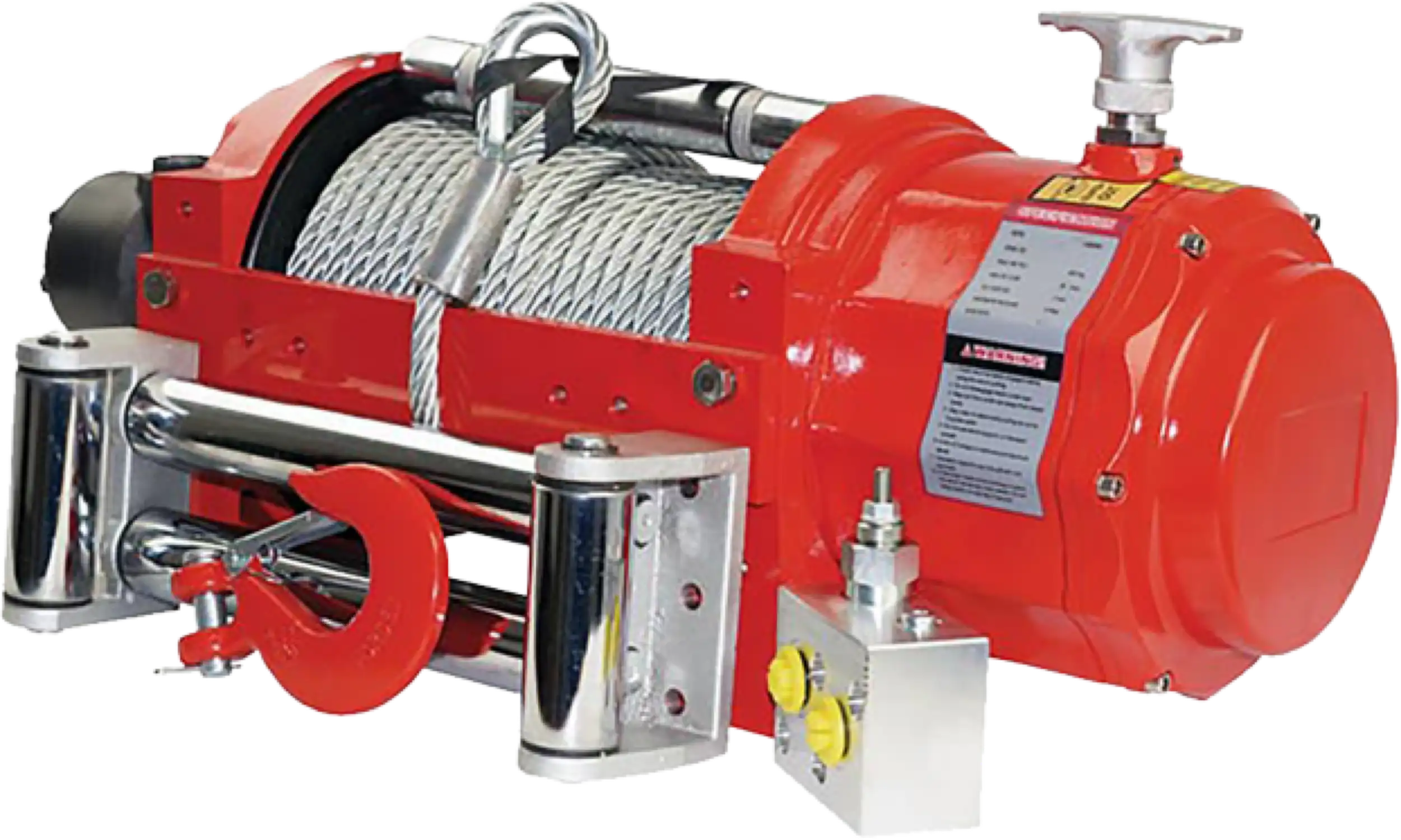

DK2 15000NW 15,000 lbs. Heat Treated Planetary Gearing Warrior NH Series Hydraulic Winch New
Manufacturer: DK2
SKU: 15000NW
Share
QTY
(888) 999-1522
$ 2,699.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
DK2 15000NW 15,000 lbs. Heat Treated Planetary Gearing Warrior NH Series Hydraulic Winch New
Share
Product Overview
Compact, tough. A hydraulic winch for industrial and commercial applications. The special heat treated planetary gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Patented heavy duty gearing
- Integral, automatic failsafe brake
- Spring engaged manual freespool
- Stainless steel fairlead and fittings
- Rugged and compact for long life
- Meets the requirements of EN 14492:1
Specifications
| RATED LINE PULL | 15000 LBS (6810 KG) |
| MOTOR | HYDRAULIC DIS 160 ML/R |
| GEARING | 17.2 |
| DRUM SIZE - DIAMETER x LENGTH | 127 x 270mm (5 x 10.62") |
| CABLE - DIAMETER x LENGTH | 12mm x 25m (0.47" x 82') |
| DIMENSIONS | 716 x 282 x 304mm (28.18 x 11.1 x 11.96") |
| MOUNTING PATTERN | 303.5 x 144.3mm (11.94 x 4.5") / 368 x 117.2mm (14.48 x 4.61") |
| WEIGHT | 80 KG (176 LBS) |
| MAX FLOW L/MIN | 60 |
| MAX PRESSURE MPA | 15 |
| CERTIFICATION | CE CERTIFIED |
Package Contents
Hydraulic Winch
Manual
Warranty
This item comes with a 1 year factory warranty.
